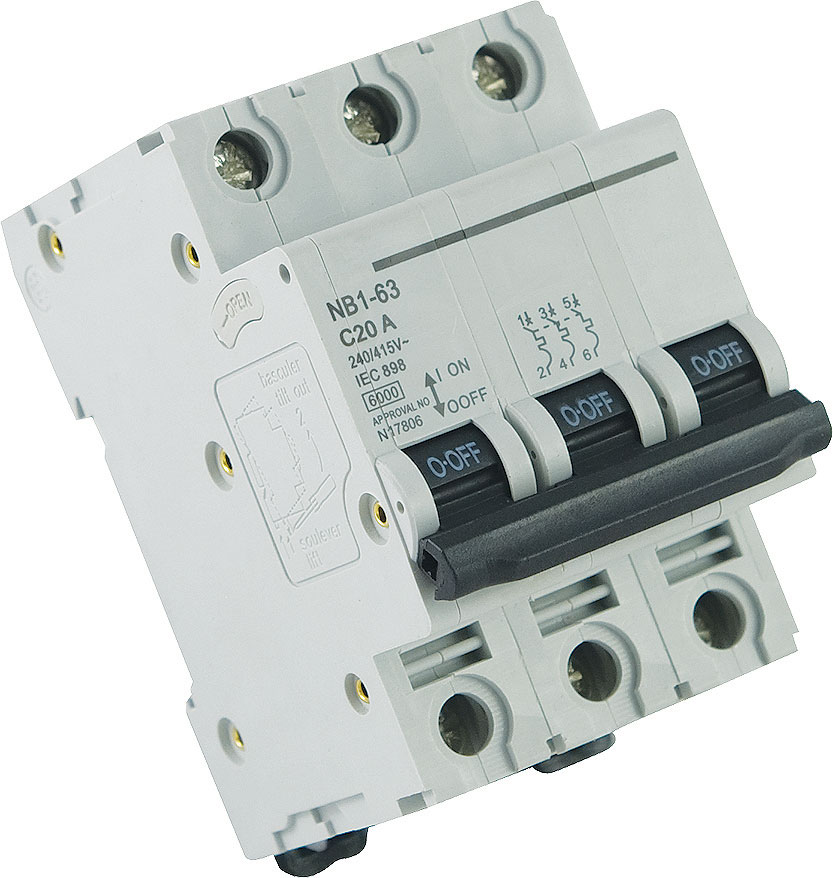

The Three Pole 6kA Circuit Breaker is designed to provide reliable overload and short circuit protection for three phase electrical installations. With a 6kA breaking capacity, C curve tripping characteristic, DIN rail mounting and connection capacity up to 25mm², it is a practical circuit protection solution for residential, commercial and light industrial switchboards.

Key Features

  • Three Pole Design: Provides three pole circuit protection, making it suitable for three phase electrical circuits and distribution applications.
  • 6kA Breaking Capacity: Designed for applications requiring a 6kA short-circuit capacity, making it suitable for many residential and commercial installations.
  • Overload and Short Circuit Protection: Helps protect electrical circuits and connected equipment from excessive current and short circuit fault conditions.
  • Multiple Current Ratings Available: Available in 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A, giving electricians flexibility to select the correct rating for the application.
  • C Curve Tripping Characteristic: Suitable for general electrical circuits where moderate inrush current may occur.
  • High Short-Circuit Capacity: Built to provide dependable performance during fault conditions within its rated capacity.
  • Contact Position Indication: Allows quick visual checking of the breaker’s operating status, assisting with inspection, maintenance and troubleshooting.
  • Busbar Connection Compatibility: Suitable for terminal connection and pin/fork type busbar connection, helping simplify switchboard wiring.
  • 35mm DIN Rail Mounting: Designed for easy installation onto standard 35mm DIN rail inside compatible switchboards and distribution boards.
  • Large Terminal Capacity: Accepts rigid conductors up to 25mm², making it suitable for a range of circuit wiring requirements.

Specifications

  • Product Type: Three pole circuit breaker
  • Number of Poles: 3P
  • Breaking Capacity: 6kA
  • Tripping Curve: C Curve
  • Rated Frequency: 50/60Hz
  • Energy Limiting Class: 3
  • Rated Impulse Withstand Voltage: 6.2kV
  • Protection Type: Overload and short circuit protection
  • Current Ratings Available: 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A
  • Mounting: 35mm DIN rail
  • Contact Position Indication: Yes
  • Busbar Compatibility: Terminal and pin/fork type busbar connection
  • Connection Terminal Type: Screw terminal
  • Terminal Style: Pillar terminal with clamp
  • Connection Capacity: Rigid conductor up to 25mm²
  • Fastening Torque: 2.0Nm

Applications

  • Three phase switchboards
  • Commercial distribution boards
  • Residential three phase installations
  • Light industrial electrical distribution
  • Three phase power circuits
  • Sub-board installations
  • Machinery and equipment circuits
  • DIN rail electrical enclosures
  • New electrical installations
  • Switchboard upgrades requiring three pole circuit protection

The Three Pole 6kA Circuit Breaker is a reliable choice for three phase residential, commercial and light industrial circuit protection. With C curve operation, overload and short circuit protection, 35mm DIN rail mounting, contact position indication and 25mm² terminal capacity, it offers electricians a practical solution for three pole switchboard installations.

Q. What is a three pole circuit breaker used for?
A. A three pole circuit breaker is used to protect three phase circuits by disconnecting all three poles during overload or short circuit fault conditions.

Q. What current ratings are available?
A. This three pole circuit breaker is available in 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A ratings.

Q. What does the 6kA rating mean?
A. The 6kA rating refers to the breaker’s short-circuit breaking capacity. It is designed to interrupt fault currents up to 6kA within its rated application.

Q. What type of tripping curve does this breaker use?
A. It uses a C curve tripping characteristic, which is commonly used for general circuit protection applications where moderate inrush current may be present.

Q. Can this breaker be used with busbar connections?
A. Yes. It is applicable to terminal connection and pin/fork type busbar connection, making it suitable for compatible switchboard layouts.
