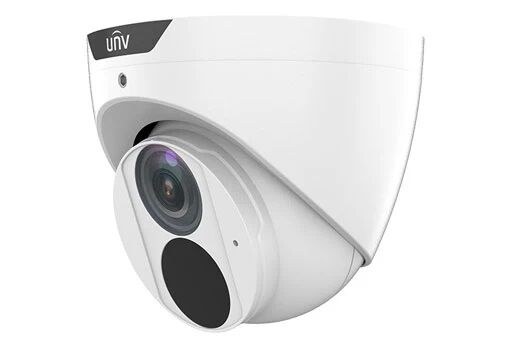

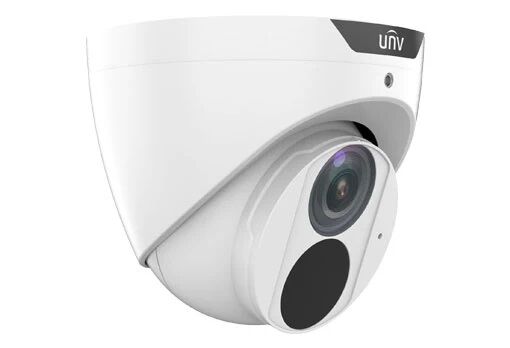

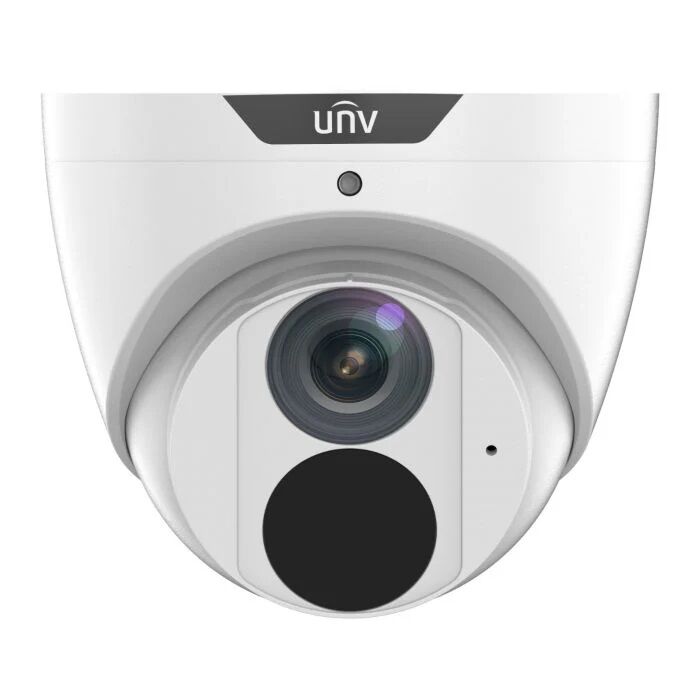

The UNV IPC3616LE-ADF28KM-G 6MP Turret Camera delivers professional-grade surveillance with ultra-clear 6MP imaging, built-in microphone, and advanced smart detection—all in a sleek, compact turret form factor. Designed by Uniview (UNV), a global leader in IP video surveillance, this camera is ideal for both residential and commercial security applications where clarity, reliability, and simplicity matter.

With Power over Ethernet (PoE) support, IP67 weather resistance, and 30m Smart IR night vision, it’s built for 24/7 operation in any environment. Whether protecting storefronts, homes, offices, or warehouses, this turret camera offers strong performance and streamlined installation at an affordable price point.

Key Features

  • 6MP High-Resolution Video – Captures sharp footage at 3072 × 2048 for excellent image clarity
  • Smart IR Night Vision – Up to 30m infrared range with auto-adjusting brightness for better detail
  • Built-In Microphone – Records high-quality audio with real-time video
  • Smart Detection – Includes motion detection, tampering alarms, and region intrusion
  • True 120dB WDR – Balances lighting in high-contrast scenes for clearer images
  • IP67 Weatherproof Rating – Built for harsh outdoor conditions
  • H.265 Compression – Saves bandwidth and storage without compromising quality
  • PoE Support – Simplified cabling with power and data over one cable
  • ONVIF Support – Compatible with most third-party NVRs and VMS platforms

Specifications

  • Model: IPC3616LE-ADF28KM-G
  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Max Resolution: 6MP (3072 × 2048)
  • Lens: 2.8mm fixed, F1.6 aperture
  • Field of View: Horizontal 97.4°, Vertical 52.3°, Diagonal 113.5°
  • WDR: 120 dB True WDR
  • Min. Illumination: 0.003 Lux (F1.6) in colour, 0 Lux with IR
  • IR Range: Up to 30 metres (Smart IR)
  • Audio: Built-in microphone
  • Video Compression: Ultra265, H.265, H.264, MJPEG
  • Ingress Protection: IP67 rated for outdoor use
  • Power Supply: 12V DC or PoE (802.3af)
  • Power Consumption: < 7W
  • Operating Temp: –30°C to +60°C
  • Dimensions: Ø 122 mm × 91 mm
  • Weight: 460g

Applications

  • Retail stores, shopping centres, and indoor commercial spaces
  • Outdoor perimeter surveillance for homes or offices
  • Schools, clinics, and government facilities
  • Covered carparks, laneways, and warehouse loading zones
  • Apartment buildings and strata-managed properties

The UNV IPC3616LE-ADF28KM-G 6MP Turret Camera is a smart, durable, and high-performing solution for modern IP surveillance systems. With its wide coverage, built-in audio, and robust feature set, it’s a reliable choice for both new installations and system upgrades.

Q. Is the camera suitable for outdoor installations?
A. Yes, the IPC3616LE-ADF28KM-G is IP67-rated and built to withstand tough weather conditions.

Q. Can the camera record audio?
A. Yes, it features a built-in microphone to capture clear, real-time audio.

Q. Does it work with other brands’ NVRs?
A. Absolutely. It’s ONVIF compliant and integrates smoothly with most third-party NVR systems.

Q. What power source does it use?
A. You can power it via PoE (recommended) or a 12V DC power supply.

Q. What’s the night vision range?
A. Up to 30 metres with Smart IR, providing crisp black-and-white footage in complete darkness.
