The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.

Camera features:

  • Stream up to 6.0MP (3072 x 1728) at 20fps
  • 2.8mm fixed lens with 99° viewing angle
  • H.265 encoding for efficient storage & streaming
  • Up to 50m infrared range; true day/night (auto ICR)
  • Built-in microphone and microSD slot for edge recording
  • AI powered perimeter protection & smart motion detection (SMD+)
  • Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
  • Back/highlight compensation & true WDR (120dB)
  • 3D digital noise reduction & auto white balance
  • IP67 weather rated housing for outdoor use


Camera:

  • Image Sensor: 1/2.7” 6.0MP Progressive Scan CMOS
  • Effective Pixels: 3072 x 1728
  • RAM / ROM: 512MB / 128MB
  • Min Illumination: 0.005 Lux/F1.6 (Colour)
  • S/N Ratio: >56dB
  • Infrared System: 2 x Infrared LED, 50m range, Auto/manual on/off control


Lens:

  • Lens / Iris: 2.8mm F1.6 Fixed Lens
  • Field of View: Horizontal: 99°, Vertical: 53°
  • Focus: Auto Focus / 0.9m Min. Focus Distance


DORI:

  • Detect: (25px/m) 56m
  • Observe: (63px/m) 22m
  • Recognise: (125px/m) 11m
  • Identify: (250px/m) 6m


Video:

  • Resolution: 6.0MP (3072 x 1728) to CIF (352 x 288)
  • Frame Rate:
    • Main: 6.0MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps)
    • Sub: D1 (1 ~ 25fps)
    • Third: 1080p (1 ~ 25fps)
  • Video Compression: H.265+ / H.265 / H.264+ / H.264 / H.264B / MJPEG
  • Bit Rate: H.265: 19 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
  • Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
  • Day/Night: Auto (ICR) / Color / B&W
  • Lighting Compensation: BLC / HLC / WDR (120dB)
  • White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
  • Gain Control: Auto / Manual
  • Noise Reduction: 3D DNR
  • Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)


IVS:

  • Video Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
  • AI Functions:
    • Smart Motion Detection (SMD+): People and vehicle detection using motion detection
    • Perimeter Protection: People and vehicle detection using tripwire or intrusion rules
  • Intelligent search: Search people or vehicle detection events (SMD+, Perimeter Protection)


Network:

  • Ethernet: RJ-45 (10/100Base-T)
  • Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
  • Streaming Method: Unicast / Multicast
  • Max. User Access: 20 Users


Interface:

  • Video Interface: N/A
  • Audio Interface: Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC; G.723
  • Alarm Interface: N/A
  • RS485: N/A
  • Edge Storage MicroSD Card: (up to 256GB) / NAS / FTP / SFTP
  • Interoperability: ONVIF / P2P / CGI / Milestone / Genetec


Environmental:

  • Power Supply: 12VDC / PoE (802.3af)
  • Power Consumption: <7.2W
  • Operating Conditions: -40°C ~ +60°C / ≤95% RH
  • Ingress Protection: IP67
  • Vandal Resistance: N/A
  • Housing: Metal
  • Pan/Tilt/Rotation: Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360°
  • Dimensions: Ø106mm x 93.6mm
  • Net Weight: 0.55kg

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

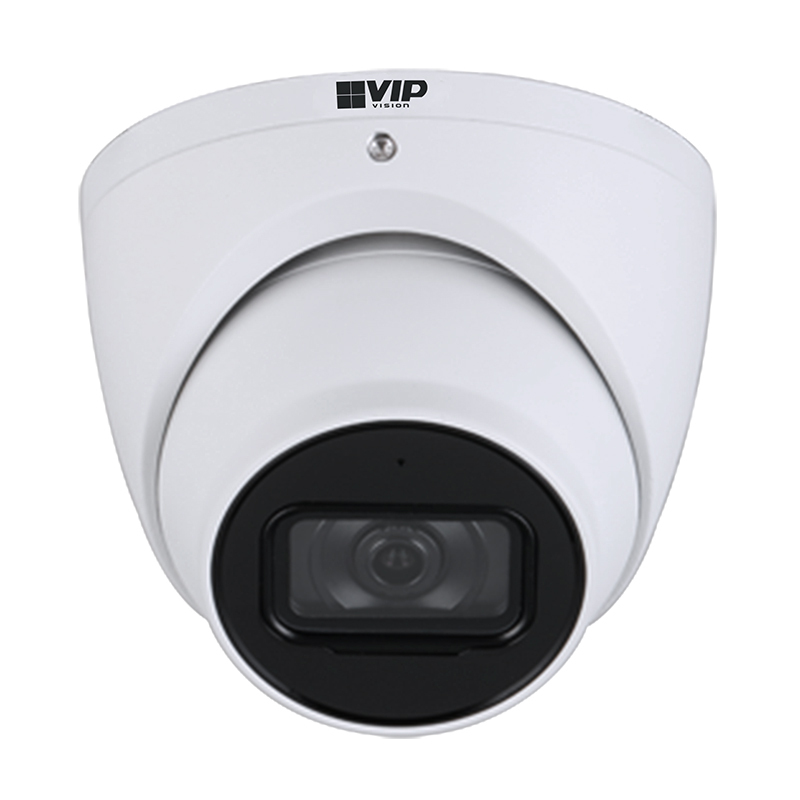

Type Fixed Turret Dome
Model VSIPP-6DIRG-I
Voltage 12V DC
PRODUCT INFO
SKU VIPVSIPP-6DIRG-I
Model # VSIPP-6DIRG-I
Brand VIP Vision
SHIPPING INFO
Shipping Weight 1.0800kg
Shipping Width 0.150m
Shipping Height 0.150m
Shipping Length 0.150m
