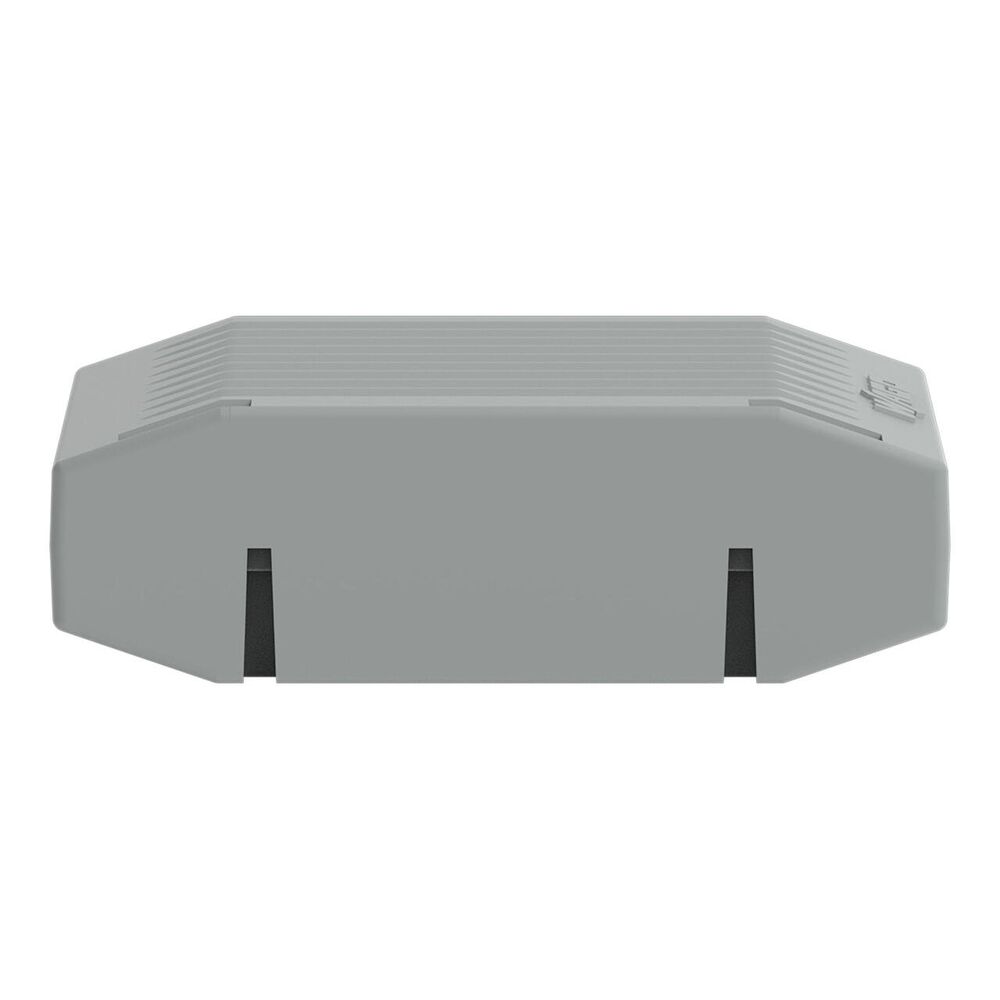

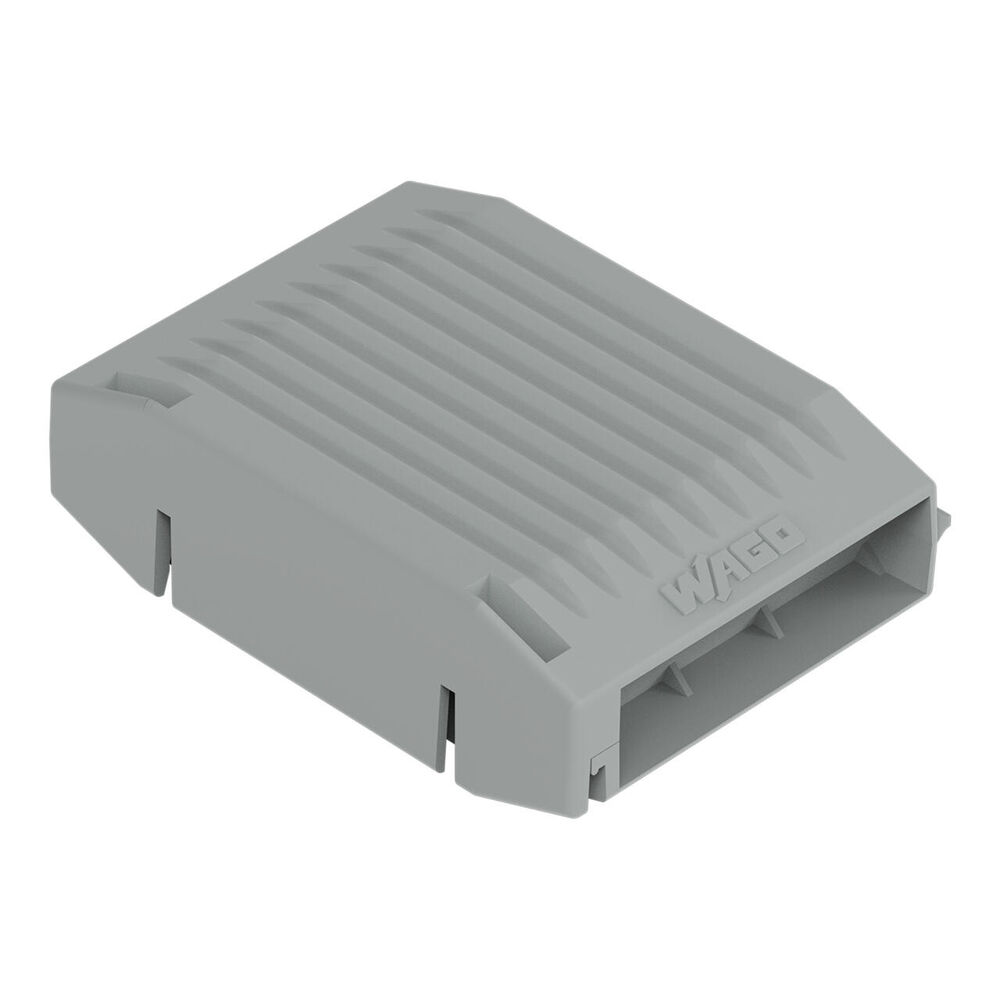

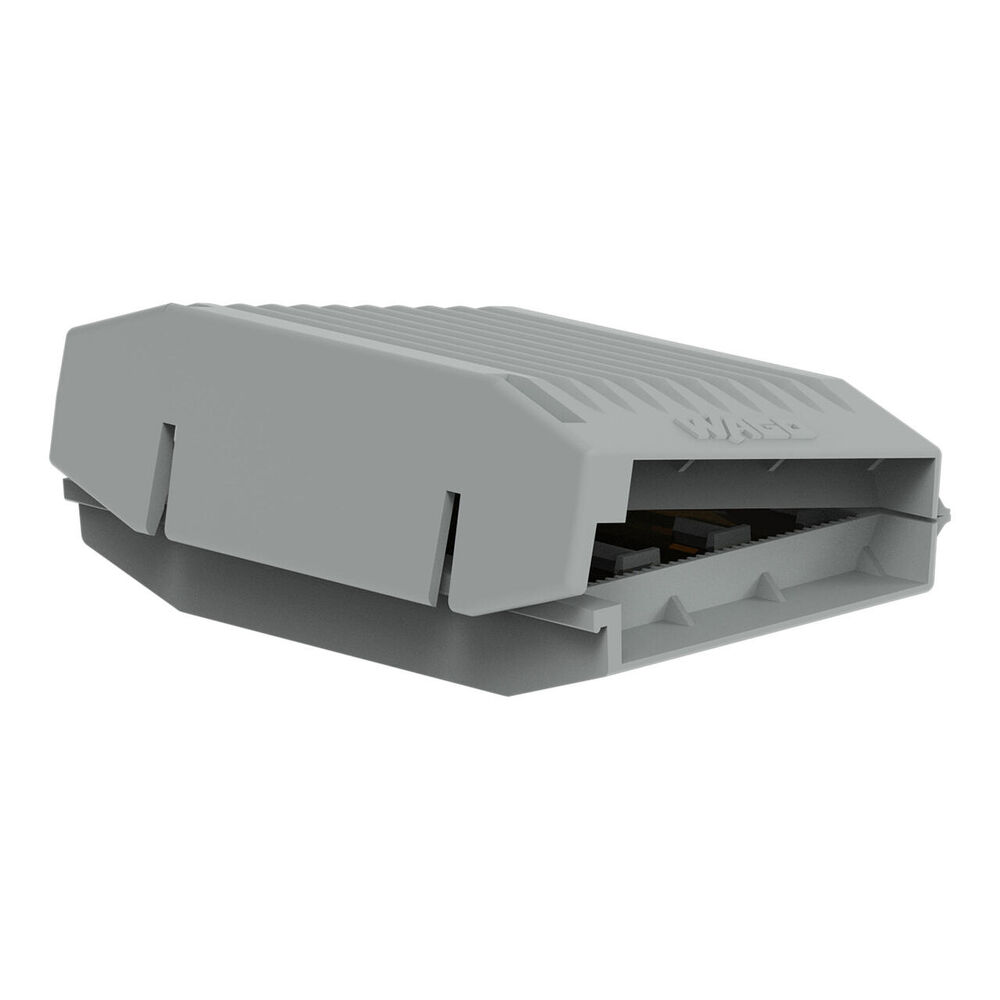

Introducing the WAGO Gelbox
The WAGO Gelbox is a compact, pre-filled enclosure designed to provide superior IPX8 moisture protection for WAGO's 2273 Series COMPACT PUSH WIRE® Connectors and 221 Series COMPACT Splicing Connectors, including Inline Splicing Connectors with levers. This innovative product ensures complete sealing against water, allowing for continuous immersion without compromising the integrity of the connections.
Upgrade your electrical installations with the WAGO Gelbox for reliable, moisture-proof connections that stand the test of time.
Exceptional Features of the WAGO Gelbox
- IPX8 Moisture Protection: Offers unparalleled protection for electrical installations, safeguarding connection points without permanently encapsulating distribution boxes.

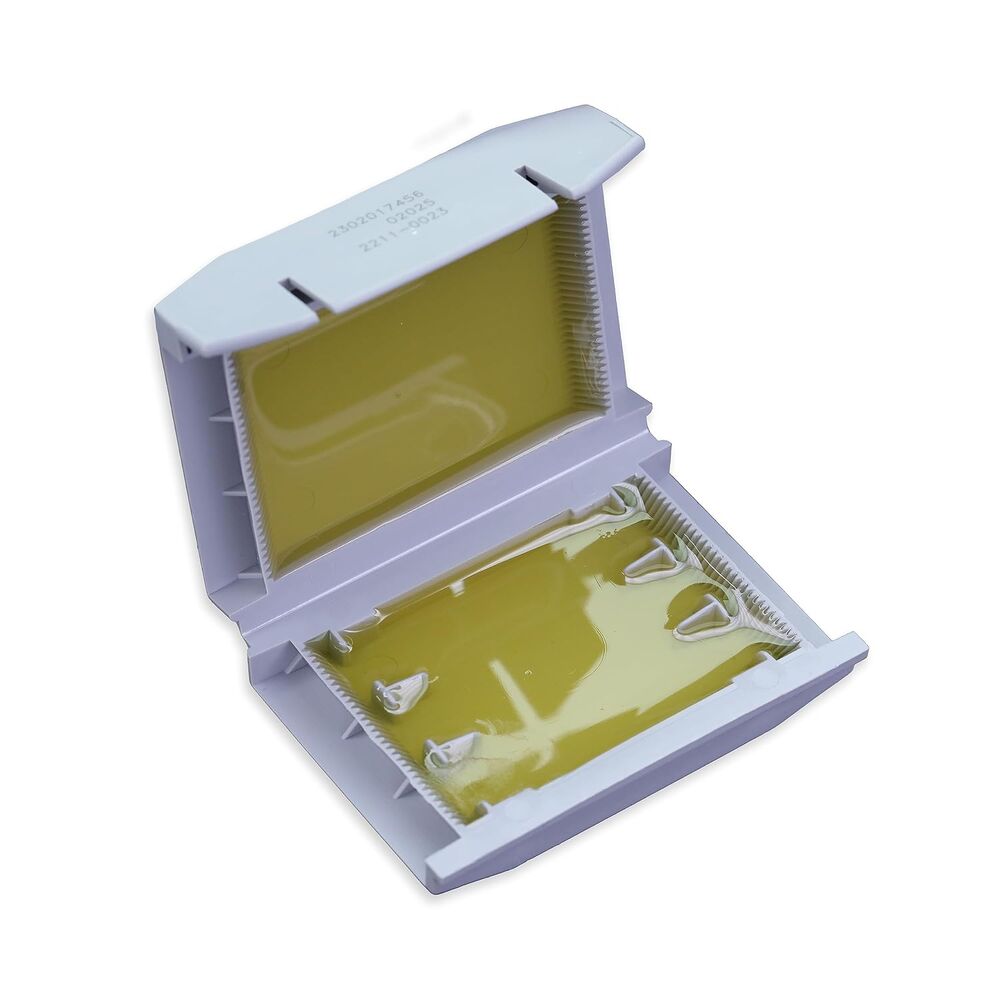

- Silicone-Free Gel: Utilizes a high-quality, silicone-free gel that supports virtually unlimited applications, unlike traditional silicone-based compounds.
- Versatile Usage: Suitable for a wide range of low and extra-low voltage applications, providing double insulation in low-voltage scenarios to protect against electric shock.

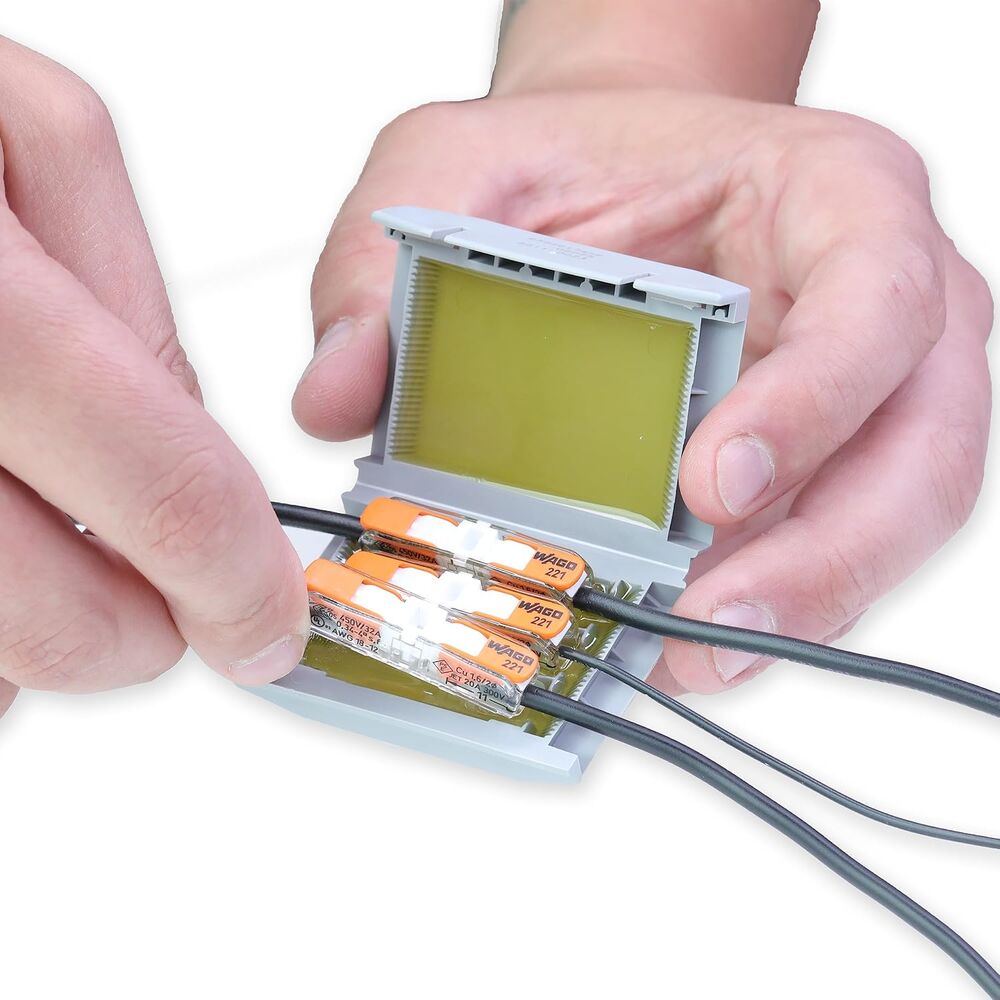

- Easy Installation: Simply open the box, insert the wired connectors, and close it with slight pressure. The gel envelops the connectors completely, ensuring a secure and reliable seal.
Why Choose the WAGO Gelbox?
- Instant Readiness: Eliminates the need for mixing components and waiting for potting compounds to harden or dry. The pre-filled gelbox is ready for immediate use.
- Non-Hazardous Gel: The gel is non-hazardous, having already undergone chemical reactions, making it safe and label-free.
- Reusable Connections: Allows for easy re-wiring and reuse of existing wires, though new connectors and gelboxes are recommended for each reinstallation to ensure maximum protection.
- Space-Efficient Design: Compact and versatile, it can accommodate multiple connectors within one gelbox, freeing up additional space in distribution boxes.
Applications and Compatibility
- Wide Range of Applications: Ideal for both low-voltage (e.g., 230 V) and SELV (Safety Extra Low Voltage) applications, offering waterproof protection without the need for silicone.

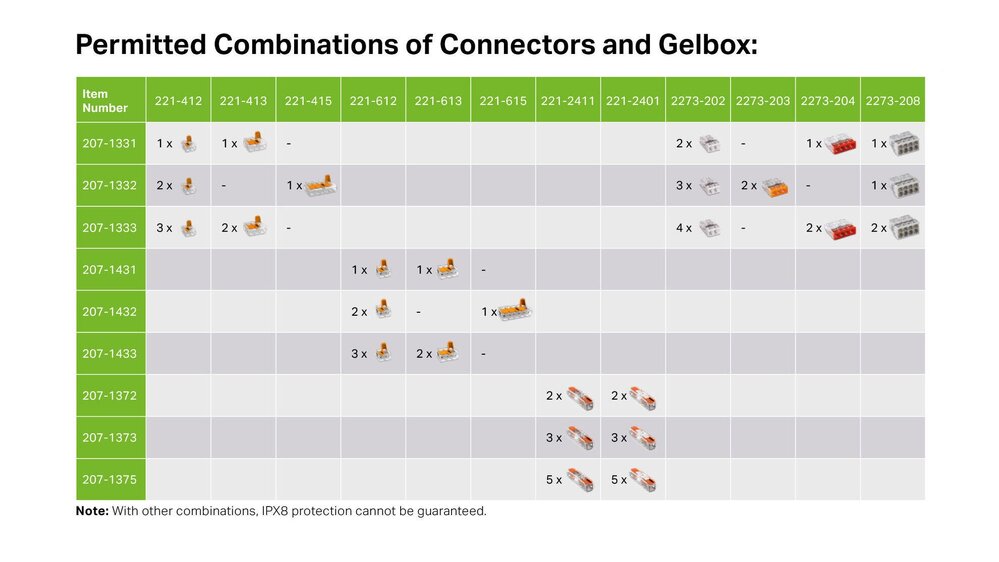

- Compatibility: Specifically tested and approved for use with WAGO's 2273 Series and 221 Series connectors, available in nine sizes to fit various needs. Each box includes a terminal diagram for easy assignment based on the connectors used.
Standards and Quality
- Compliance: VDE-tested to EN 60998 standards and IPX8 certified, ensuring high-quality and reliable performance.
- Gel Type: Utilizes high-quality polyurethane gel from BBC Cellpack, renowned for its superior properties.
Q: Is the WAGO Gelbox waterproof?
A: Yes, The connectors are completely sealed against water and can be permanently immersed in water (however, with, for example, pressurized water, this is only permitted on the application side for complete cable sets).
Q: What does IPX8 mean?
A: The IPX8 protection type means that the connectors in the WAGO Gelbox are completely sealed against water and can also be permanently submerged in water. Basically, ingress protection (IP) codes are standardized according to DIN: the higher the number, the higher the degree of protection. With two-digit numbers such as IP68, the first number describes the protection against contact and dust (0 ... 6), the second the protection against water and humidity (0 ... 9).
Q: Where can I use the WAGO Gelbox?
A: Anywhere in the extra-low voltage range – so-called SELV (Safety Extra Low Voltage) applications – and low-voltage range (e.g., 230 V) where your electrical installation requires waterproof protection against moisture and humidity, without silicone. You can find possible applications here
Q: How do I use the WAGO Gelbox?
A: The wired splicing connectors are placed in the box. Then, the box is closed with slight pressure. The gel completely wraps itself around the installation. Please note the different ways it is used in the low voltage and extra-low voltage ranges, as well as the information on initial installation and rewiring.
Q: How long can the WAGO Gelbox be stored?
A: The Gelbox can be stored indefinitely because the gel used has already reacted.
Q: Can I re-use the WAGO Gelbox?
A: No, In order to ensure a high degree of protection, both the Gelbox and the connectors must be replaced when reinstalling or rewiring.
Q: Are these sold individually or in a pack?
A: We sell WAGO Gelboxes individually. If you buy a pack quantity (4 Pieces) you will automatically receive a further discounted price.
All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.
Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.
Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.
| IP Rating | IPx8 |
| PRODUCT INFO | |
| SKU | WAG207-1373 |
| Model # | 207-1373 |
| Barcode # | 4066966350067 |
| Brand | Wago |
| SHIPPING INFO | |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.057m |
| Shipping Height | 0.018m |
| Shipping Length | 0.041m |
