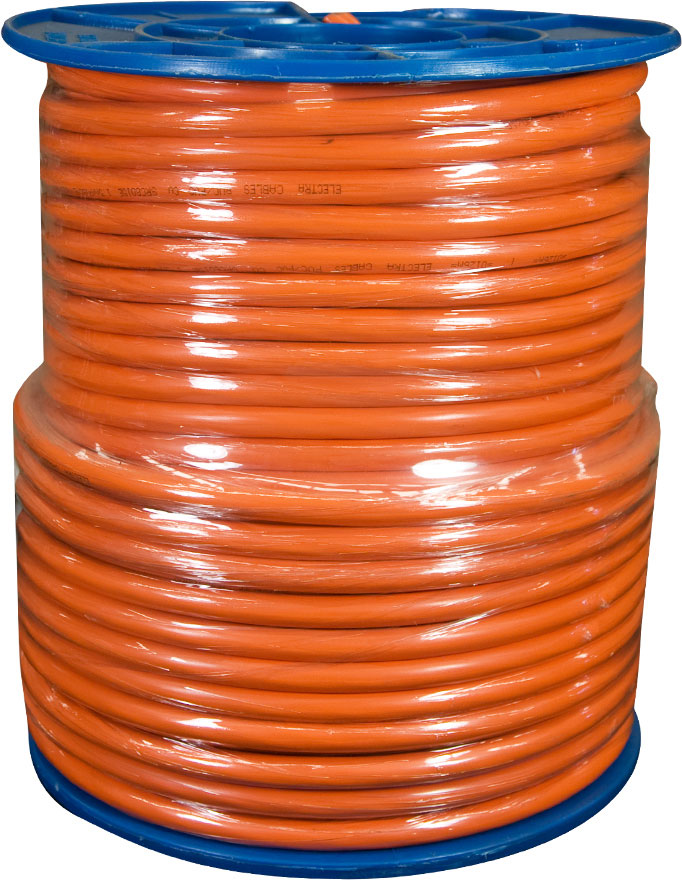

This 16.0mm² 2 Core + Earth Orange Circular cable is a heavy single-phase submain cable supplied on a 100 metre roll. It suits contractors running several submains or one long feed, and larger cut lengths of 200m, 250m, 300m and 500m are available on enquiry.

Two 7/1.70mm stranded copper conductors are insulated with X-90 XLPE and laid up with a 6mm² earth under an orange 5V-90 PVC sheath. The result is a round cable of about 17.1mm diameter, rated 0.6/1kV for a 90°C maximum conductor temperature. It is well suited to single-phase main and submain supplies in homes, multi-unit developments and commercial premises, where its round build makes gland terminations and conduit pulls straightforward.

Key Features

  • 16.0mm² Single-Phase Cable – A heavy conductor size for substantial single-phase loads and submains.
  • X-90 XLPE Insulation – Cross-linked cores with excellent heat resistance under load.
  • 6mm² Earth Included – A full earth conductor runs inside the cable alongside the active and neutral.
  • 7/1.70mm Stranded Copper – Plain annealed copper that bends and terminates more easily than solid conductors.
  • Clear Core Identification – Red and black cores with a green/yellow earth.
  • 0.6/1kV Voltage Rating – Suited to low-voltage mains and submain installations.
  • Tough Orange Sheath – A 5V-90 PVC sheath gives strong protection and high visibility.
  • 100m Roll – Ideal for multiple runs or long feeds, with 200m to 500m cuts available on request.

Specifications

  • Model: OC1602CE
  • Conductor Size: 16.0mm²
  • Cores: Active, neutral and earth
  • Conductor: Plain annealed copper, stranded 7/1.70mm
  • Earth Size: 6mm²
  • Core Colours: Red (active), black (neutral), green/yellow (earth)
  • Insulation: X-90 XLPE
  • Sheath: 5V-90 PVC
  • Sheath Colour: Orange
  • Overall Diameter: 17.1mm (±10%)
  • Max Conductor Temperature: 90°C
  • Voltage Rating: 0.6/1kV
  • Standard: AS/NZS 5000.1
  • Length: 100m roll (200m, 250m, 300m and 500m cuts on enquiry)

Applications

  • Single-phase mains and submains for homes and multi-unit developments
  • Submains to detached buildings, workshops and large sheds
  • Single-phase supplies to commercial distribution boards

Supplied as a full 100m roll, the OC1602CE 16.0mm² 2 Core + Earth Orange Circular offers XLPE insulated stranded cores, a 6mm² earth and a heavy-duty orange sheath. It is a solid stock choice for electricians who regularly install single-phase submains, with longer cuts available when a project calls for them.

Q. Can I get a longer length than 100m?
A.
Yes. This listing is for a 100 metre roll, and cut lengths of 200m, 250m, 300m and 500m are available. Please contact us with the length you need.

Q. What is the overall diameter of this cable?
A.
The nominal overall diameter is about 17.1mm (±10%). Use this figure when selecting glands, conduit size and pit entries.

Q. Is 16mm 2 Core + Earth XLPE or PVC insulated?
A.
The cores are X-90 XLPE insulated and the outer sheath is orange 5V-90 PVC. The cable is rated 0.6/1kV with a 90°C maximum conductor temperature.
