Bosch B810 Radion Wireless Receiver
for Bosch Solution 3000
SKU: BOSB810
Low Stock
$115.50
$105.00 ex GST
Low Stock
Buy Now, Pay Later with
Did You Also Need…?
Next Day Typical Dispatch
On All Orders
Australian Company
Owned & Operated
25+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind

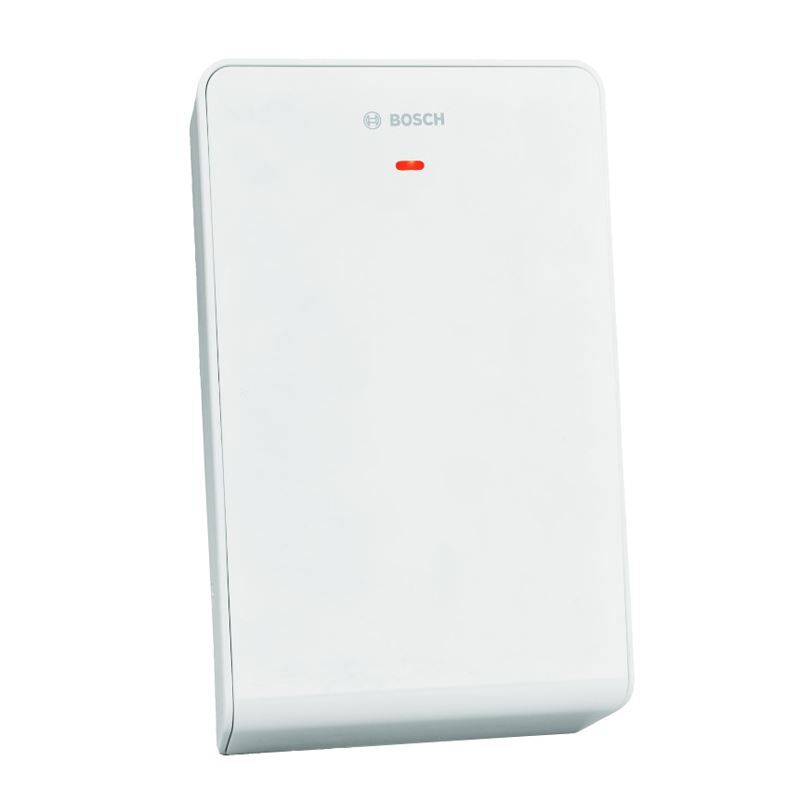

The Bosch B810 RADION Wireless Receiver is a professional-grade wireless interface designed to add reliable wireless functionality to compatible Bosch alarm systems. Operating on the SDI2 bus, the B810 allows seamless integration of RADION wireless peripherals including PIR detectors, reed switches, keyfobs, panic buttons, smoke detectors, and repeaters. With dual internal antennas, advanced RF diagnostics, and robust tamper protection, it delivers dependable wireless performance for both residential and commercial security applications.
Key Features
- Compatible with Bosch RADION wireless devices including PIRs, reed switches, panic buttons, smoke detectors, and keyfobs
- Dual internal antennas provide spatial and polar RF diversity for enhanced signal reliability
- 433.42MHz RF communication for improved wireless penetration and range
- Supports supervision of up to:
- 504 wireless points
- 1000 keyfobs
- 8 repeaters
- RF interference (jamming) detection and reporting for enhanced system integrity
- Wall and cover tamper protection detects unauthorised removal or interference
- External status LEDs assist with diagnostics and troubleshooting
- Easy addressing via integrated rotary address switch
- Sliding self-locking enclosure with built-in bubble level for simpler installation
Specifications
- Model: B810
- Product Type: Wireless SDI2 Bus Interface / Receiver
- Wireless Frequency: 433.42MHz
- Power Supply: 10–14VDC (12VDC nominal)
- Maximum Current Draw: 70mA
- Wiring Distance: Up to 243m (800ft)
- Dimensions: 139.7mm x 209.6mm x 31.8mm
- Operating Temperature: 0°C to +49°C
- Humidity: Up to 93% non-condensing
- Installation Type: Indoor use only
Compatibility
Compatible with selected Bosch alarm panels including:
- Bosch Solution 3000 / 4000 series
- B9512G / B8512G
- B6512 / B5512 / B4512 / B3512
- GV4 Series panels
Supports a wide range of RADION wireless accessories including:
- PIR motion detectors
- Reed switches
- Smoke detectors
- Glass break detectors
- Wireless keyfobs
- Panic buttons
- Repeaters
Applications
- Bosch Solution 3000 and Solution 4000 wireless upgrades
- Residential alarm systems
- Commercial intrusion detection systems
- Retrofit security installations where cabling is difficult
- Expanding existing Bosch wired alarm systems with wireless devices
Built for reliable wireless integration and backed by Bosch’s proven RADION technology, the Bosch B810 Wireless Receiver is an ideal solution for expanding compatible Bosch alarm systems with secure, high-performance wireless capability.
Q. What does the Bosch B810 receiver do?
A. The B810 allows compatible Bosch alarm panels to communicate with Bosch RADION wireless devices including PIRs, reed switches, remotes, smoke detectors, and panic buttons.
Q. Which Bosch alarm systems is the B810 compatible with?
A. It is compatible with selected Bosch SDI2-capable systems including the Solution 3000/4000 series and several Bosch commercial intrusion panels.
Q. How many wireless devices can the B810 support?
A. The receiver supports supervision of up to 504 wireless devices, 1000 keyfobs, and 8 repeaters.
Q. Does the B810 include tamper protection?
A. Yes. The receiver includes both wall tamper and cover tamper detection to help prevent unauthorised interference.
Q. Can the B810 detect wireless interference or jamming?
A. Yes. The unit includes RF interference (jamming) detection and reporting for improved security system reliability.
All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.
Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.
Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.
| PRODUCT INFO | |
| SKU | BOSB810 |
| Model # | B810 |
| Barcode # | 4060039105707 |
| Brand | Bosch |
| SHIPPING INFO | |
| Shipping Weight | 0.6900kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.043m |
| Shipping Length | 0.225m |
