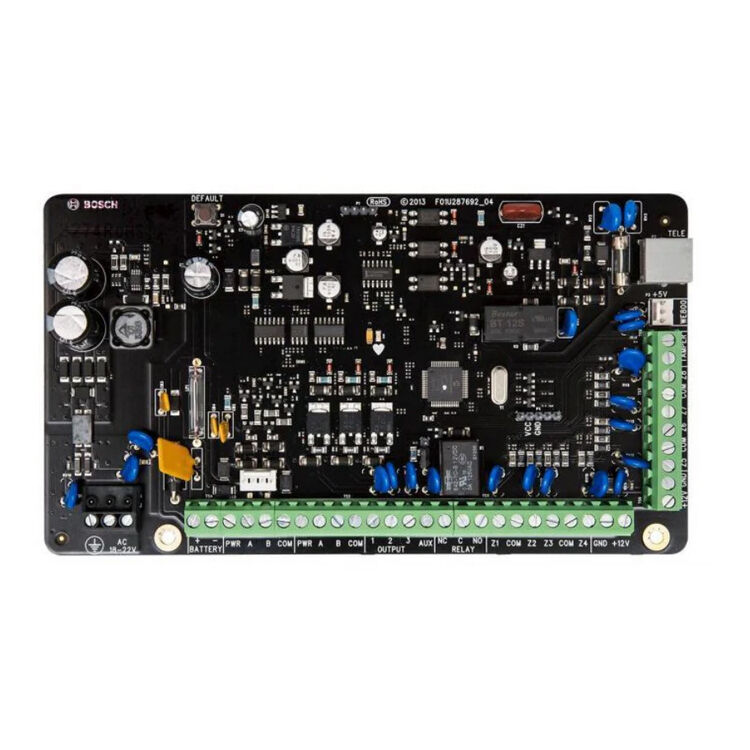

Bosch ICP‑SOL3‑P – Solution 3000 Intrusion Alarm Control PCB (16-Zone)
Designed for small residential and light commercial environments, the ICP‑SOL3‑P is Bosch’s 16‑zone intrusion control panel. It supports up to 32 user codes or remote credentials, offers two independently controlled partitions, and seamlessly integrates with wireless peripherals and mobile control systems for a truly modern security experience.
Key Features
- 16 fully programmable zones (expandable from an 8‑zone core) for flexible sensor configuration.
- Dual‑area partitioning, enabling separate arming/disarming actions for two distinct zones.
- Up to 32 authentication credentials, including PIN codes and keyfobs (via RADION or WE800EV2).
- Wireless support using Bosch RADION (up to 32 devices) or WE800EV2 for remote control, compliant with SDI‑2 bus protocol.
- Stay/Away arming options offer full-site or perimeter-only protection settings.
- Four onboard relay outputs (expandable via up to two B308 modules, for up to 12 outputs total).
- Remote management through the Remote Security Control Plus (RSC+) app, enabling arming/disarming, event tracking, and alerts from any mobile device.
- Communication capabilities include CID, SIA, Email, CSV‑IP protocols via B426‑M Ethernet or B450‑M cellular modules—ready for NBN/fibre networks.
Specifications
- Model number: ICP‑SOL3‑P
- Max zones/inputs: Up to 16
- Partitions: 2 independently controlled areas
- User capacity: 1 installer code + up to 32 active codes or RF devices
- Wireless interface: Compatible with WE800EV2 or B810 RADION receiver
- Keypad support: Up to 4 keypads (icon, text, or touchscreen formats) via SDI‑2 bus
- Onboard outputs: 4 relay outputs; expandable to 12 with B308 modules
- Backup power: 12 V DC via internal recess for up to 6.5 Ah sealed lead‑acid battery (not included)
- Primary power input: TF008 plug pack (Australia-specific)
- Operating temperature: 0 °C to +45 °C; Humidity: 10%–95%, non‑condensing
- Memory/event log: 256 event history buffer
- Certifications: RCM (Australia), Telepermit (NZ), AS/CA S002:2010 reporting standard
- Warranty: 3 years standard Bosch support
Applications
- Residential homes: Secure multiple zones like garage, perimeter, and bedrooms with independent partitioning.
- Light commercial premises: Separate back‑office and front‑of‑house areas for controlled access.
- Rental or shared properties: Multiple user codes enable managed tenant access and reporting.
- Mobile/Mixed-use installations: Wireless support makes retrofit and detached building integration easy.
- App-controlled systems: RSC+ app allows landlords or managers to remotely arm/disarm and monitor activities.
Ready to offer intuitive and scalable security while supporting modern integration and reporting? The Bosch ICP‑SOL3‑P Solution 3000 panel delivers professional flexibility, mobile connectivity, and robust performance—making it ideal for homes, offices, rentals, and light commercial installations.
Frequently Asked Questions
Q. Can the panel support NBN or purely IP-based reporting?
A. Yes — by installing Bosch’s B426‑M Ethernet or B450‑M cellular communication modules, the panel supports CSV‑IP and advanced reporting formats suitable for NBN and modern alarm monitoring platforms.
Q. If one partition is armed, can the other remain disarmed?
A. Absolutely — each of the two partitions (areas) can be armed or disarmed independently, providing flexible access control and enhanced usability.
Q. How many wireless devices does the panel support?
A. When used with a B810 RADION receiver, the panel can support up to 32 wireless devices, including motion sensors, panic buttons, and repeaters. For low-cost remote access, WE800EV2 supports local keyfob control.
Q. Does the system work with Bosch's mobile security app?
A. Yes — the RSC+ app enables remote arming/disarming, status checks, push notifications, and control of connected automation devices like lights or garage doors.
