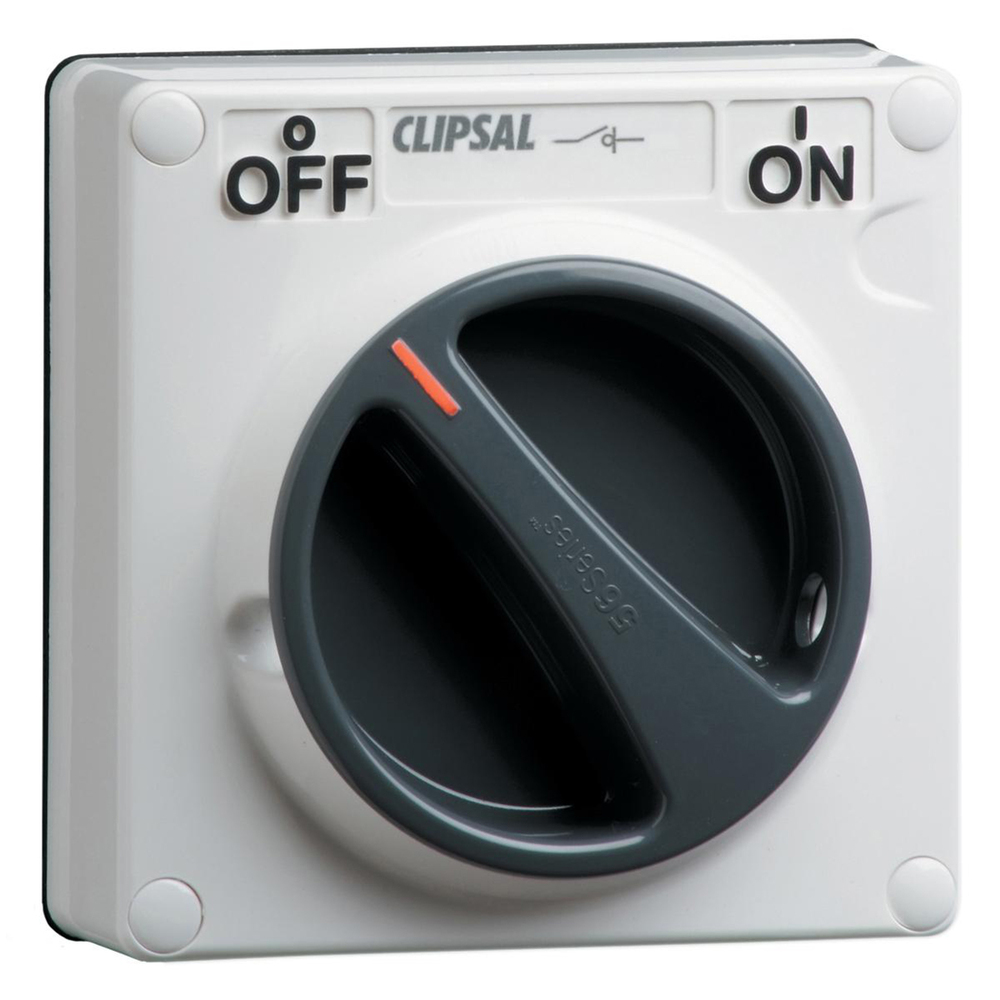

The Clipsal 56 Series 3 Pole 10A Isolating Switch Less Enclosure in Grey (56SW310LE-GY) is a 1 gang rotary surface switch rated 10A at 500V AC, with 3 switched poles. Clipsal lists it as suitable for isolation.

Part of Clipsal's 56 Series weatherproof family. The switch is rated IP66, has an M100 motor rating at 500V and a rotary knob with ON-OFF marking. Screw terminals take 1.5 to 16mm² cable. It is the Less Enclosure (LE) base version, so the surface enclosure is not included, and it measures 107 x 101 x 72mm. The finish is Grey.

Key Features

  • 3 Pole, 10A – Rated 10A at 500V AC, 50Hz.
  • Rotary Knob – Positive switching with ON-OFF marking.
  • Suitable for Isolation – Clipsal lists it as suitable for isolation.
  • M100 Motor Rating – Motor rating M100 at 500V.
  • IP66 Rated – Protected against dust and powerful water jets.
  • Screw Terminals – Accept 1.5 to 16mm² cable.
  • Less Enclosure – Base version, enclosure not included.
  • High Fault Ratings – Icm 1kA, Icw 1.2kA for 1s, Uimp 4kV.
  • 56 Series Range – Part of Clipsal's 56 Series weatherproof family.

Specifications

  • Model: 56SW310LE-GY
  • Range: Clipsal 56 Series
  • Type: Surface switch, 1 gang, less enclosure
  • Switched Poles: 3
  • Rated Current: 10A
  • Rated Voltage: 500V AC, 50Hz
  • Motor Rating: M100 at 500V
  • Suitable for Isolation: Yes
  • Operation: Rotary knob, ON-OFF
  • Terminals: 1.5 to 16mm²
  • IP Rating: IP66
  • Dimensions: 107mm H x 101mm W x 72mm D
  • Colour: Grey

Applications

  • Outdoor lighting and equipment switching
  • Pumps, fans and motors
  • Industrial and commercial plant

For tough, weatherproof switching, choose the Clipsal 56SW310LE-GY 3 pole 10A 56 Series switch.

Q. What is the rating of the Clipsal 56SW310LE-GY?
A.
It is rated 10A at 500V AC with 3 switched poles and an M100 motor rating.

Q. Can the Clipsal 56SW310LE-GY be used as an isolator?
A.
Yes. Clipsal lists it as suitable for isolation.

Q. Is the Clipsal 56SW310LE-GY weatherproof?
A.
Yes. The switch is rated IP66 against dust and powerful water jets when correctly installed.

Q. Does the Clipsal 56SW310LE-GY include an enclosure?
A.
No. It is the less enclosure (LE) base version, measuring 107 x 101 x 72mm.
