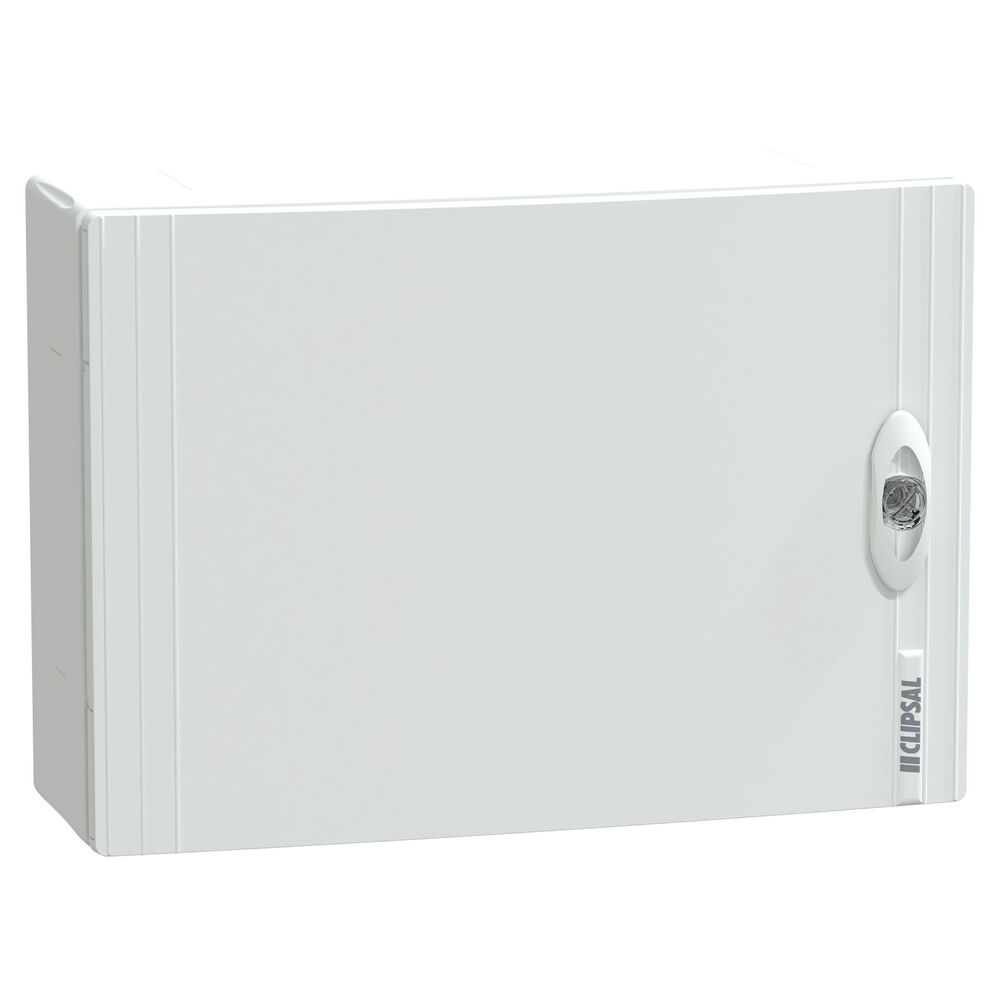

The Clipsal MAX9 MX9SB118S 18 Pole Surface Mount Switchboard is a compact, professional enclosure designed for indoor residential and light commercial distribution applications. With 18 module spaces in a single-row layout, this surface mount switchboard provides a practical solution for installations where recessed mounting is not required or not possible. It is part of the Clipsal MAX9 range and is designed to support neat, reliable circuit protection installations with a clean white finish and installer-friendly layout.

Key Features

  • 18 Pole Capacity: Provides 18 x 18mm module spaces in a single row, giving suitable capacity for compact residential and small commercial switchboard layouts.
  • Surface Mount Installation: Designed to mount directly onto the wall, making it ideal for installations where flush mounting is not practical.
  • Part of the Clipsal MAX9 Range: Designed to complement Clipsal MAX9 circuit protection devices for a consistent and professional switchboard installation.
  • Suitable for Distribution Applications: Built for electrical distribution use across homes, apartments, renovations, sub-boards and light commercial projects.
  • Clean White Finish: Finished in white RAL 9003 for a neat appearance that suits modern indoor electrical installations.

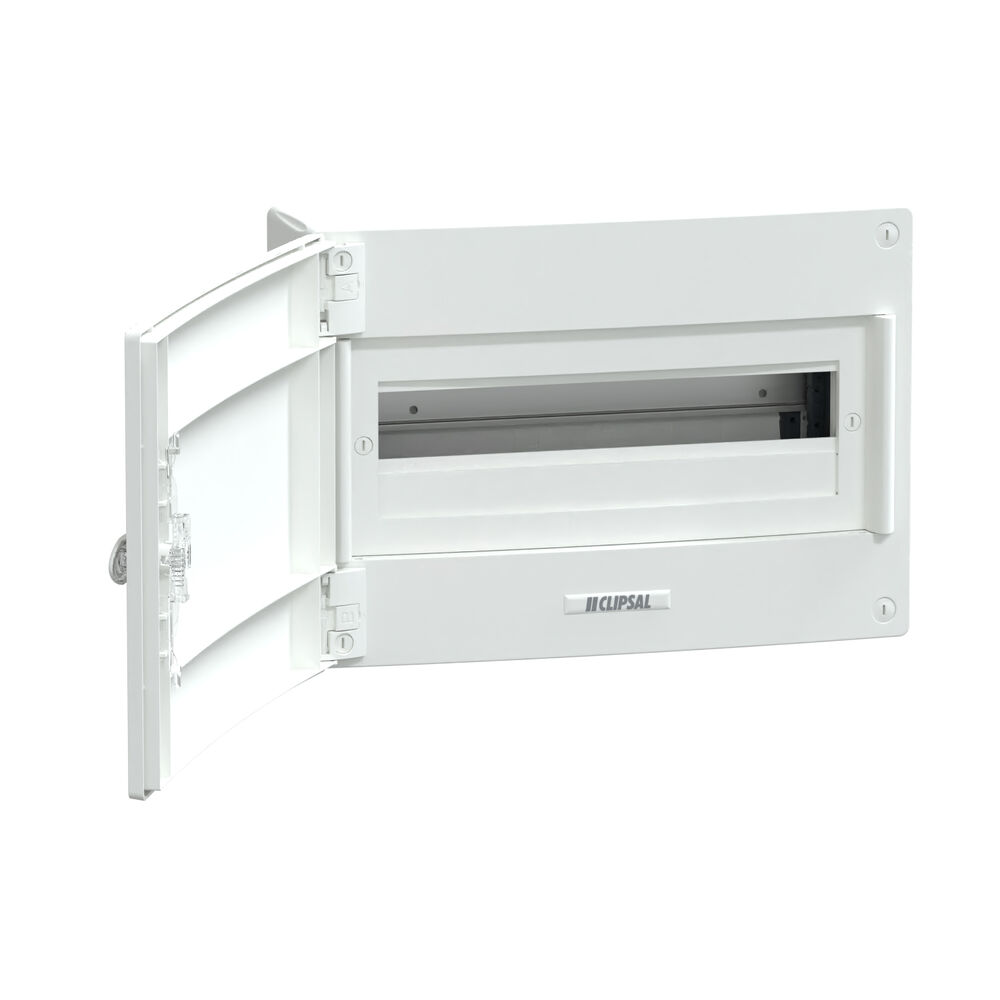

  • Reversible Door Design: The reversible door provides installation flexibility and delivers a tidy finished appearance once fitted.
  • Durable Plastic Enclosure: Manufactured from plastic material for a lightweight, practical and durable enclosure solution.
  • IP40 Rated Protection: Provides IP40 ingress protection for suitable indoor or protected electrical installations.
  • Single Row Layout: Keeps the enclosure compact while still offering 18 module spaces for essential circuit protection devices.
  • Green Premium Product: Listed as a Schneider Electric Green Premium product, supporting improved environmental transparency.

Specifications

  • Model: MX9SB118S
  • Range: Clipsal MAX9
  • Product Type: Switchboard enclosure
  • Mounting Type: Surface mount
  • Number of Ways: 18 ways
  • Number of Rows: 1
  • Total Module Capacity: 18 x 18mm modules
  • Modules Per Row: 18
  • Device Application: Distribution
  • Colour: White
  • Colour Reference: RAL 9003
  • Enclosure Material: Plastic
  • Door Type: Reversible door
  • IP Rating: IP40

Applications

  • Residential switchboards
  • Apartment distribution boards
  • Light commercial switchboards
  • New home electrical installations
  • Renovation and switchboard upgrade projects
  • Sub-board installations
  • Indoor circuit protection enclosures
  • MAX9 circuit protection installations
  • Surface mount electrical distribution applications
  • Installations where recessed mounting is not suitable

The Clipsal MAX9 MX9SB118S 18 Pole Surface Mount Switchboard is a reliable and practical enclosure for indoor electrical distribution. With its 18 pole capacity, surface mount design, reversible door, IP40 protection and compatibility with Clipsal MAX9 circuit protection products, it is a strong choice for electricians completing residential, renovation and light commercial switchboard installations.

Q. How many modules does the Clipsal MX9SB118S hold?
A. The MX9SB118S holds 18 x 18mm modules in a single row.

Q. Is this switchboard surface mount or flush mount?
A. This model is surface mount, meaning it is designed to be mounted directly onto the wall rather than recessed into the wall cavity.

Q. Is the MX9SB118S suitable for outdoor use?
A. No. The enclosure has an IP40 rating and is intended for suitable indoor or protected installations only.

Q. What is the difference between MX9SB118S and MX9SB118F?
A. The MX9SB118S is the surface mount version, while the MX9SB118F is the flush mount version. Both provide 18 module spaces, but the installation style is different.

Q. What circuit protection range is this enclosure designed for?
A. The MX9SB118S is part of the Clipsal MAX9 range and is designed to suit compatible MAX9 circuit protection devices.
