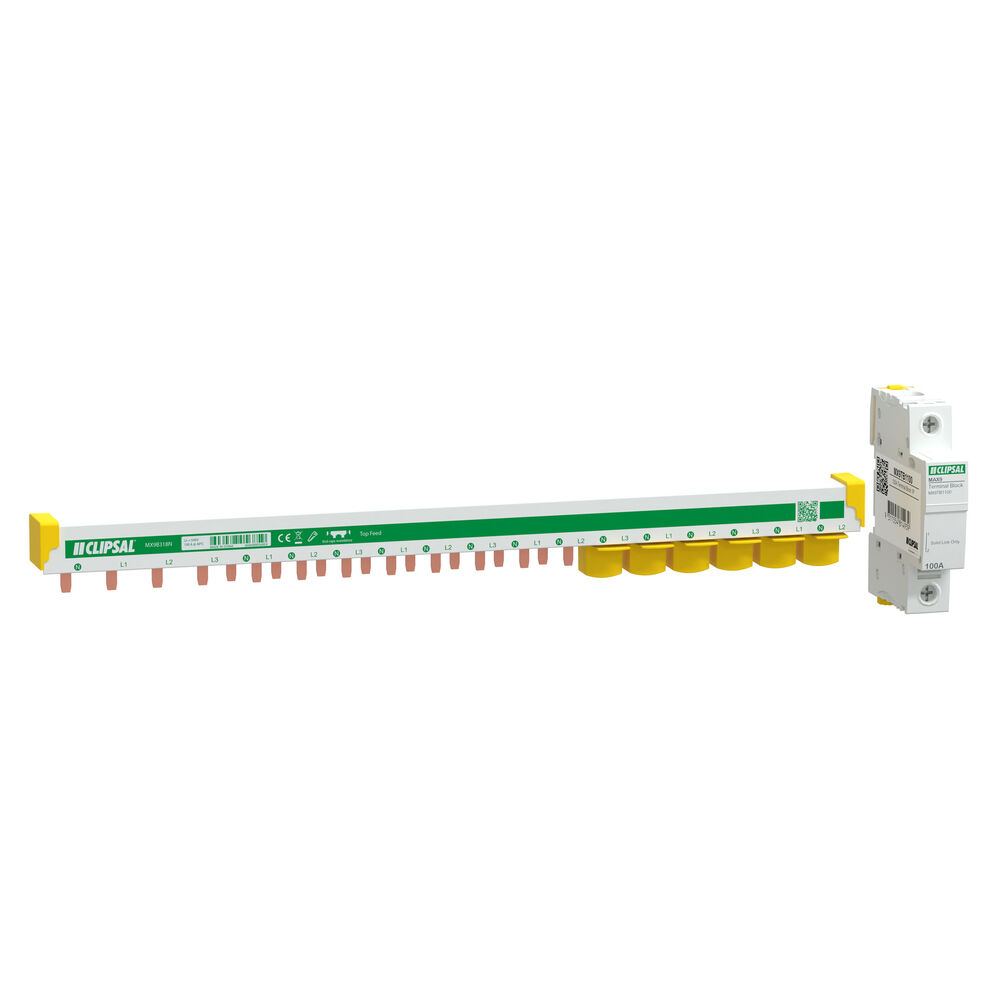

The Clipsal MAX9 MX9B318N 3P+N 18 Module Busbar with Neutral Terminal Block is designed to make three phase MAX9 switchboard wiring faster, neater and easier to manage. Rated at 100A, this top feed busbar suits 3 phase + neutral circuit protection layouts across 18 modules, and is supplied with an N block and accessories for a clean, professional installation.

Key Features

  • 3P+N Busbar Configuration: Designed for three phase and neutral MAX9 circuit protection layouts, helping distribute supply neatly across compatible devices.
  • 18 Module Capacity: Suits 18 module MAX9 switchboard rows, making it ideal for wider three phase distribution layouts.
  • Includes Neutral Terminal Block: Supplied with a neutral terminal block / N block to assist with neutral connection and improve wiring organisation.
  • 100A Rated Current: Built to support dependable electrical distribution within compatible Clipsal MAX9 switchboard systems.
  • Top Feed MAXBAR Design: Designed as a top feed comb busbar, helping create a practical and efficient wiring arrangement from the incoming supply.
  • Supplied with Accessories: Supplied with accessories to help complete the busbar installation neatly and correctly.
  • Cleaner Switchboard Wiring: Helps reduce individual cable links between devices, creating a tidier and easier-to-follow switchboard layout.
  • Faster Installation: Reduces repetitive cutting, stripping and terminating of link cables during switchboard fit-off.
  • Compatible with Clipsal MAX9 Devices: Designed for use with compatible Clipsal MAX9 switchboards and circuit protection devices.
  • Ideal for Three Phase Installations: A practical choice for residential, commercial and light industrial switchboards using MAX9 three phase circuit protection layouts.

Specifications

  • Model: MX9B318N
  • Brand: Clipsal by Schneider Electric
  • Range: MAX9
  • Product Type: MAXBAR / busbar connection accessory
  • Busbar Type: Top feed comb busbar
  • Poles Configuration: 3P+N
  • Number of Modules: 18 modules
  • Rated Current: 100A
  • Included Component: Neutral terminal block / N block
  • Compatible System: Clipsal MAX9 switchboards and compatible MAX9 circuit protection devices

Applications

  • Clipsal MAX9 three phase switchboard installations
  • Residential three phase switchboards
  • Commercial distribution boards
  • Light industrial distribution boards
  • Three phase circuit protection layouts
  • RCBO feeding applications
  • Switchboard upgrades
  • New electrical installations
  • Renovation and replacement work
  • Cleaner switchboard wiring layouts

The Clipsal MAX9 MX9B318N 3P+N 18 Module Busbar with Neutral Terminal Block is a smart accessory for electricians wanting faster, cleaner and more organised three phase MAX9 switchboard wiring. With its 18 module capacity, 100A rating, top feed design and included neutral terminal block, it is a reliable choice for compatible residential, commercial and light industrial distribution installations.

Q. What is the Clipsal MX9B318N used for?
A. The MX9B318N is used to feed compatible Clipsal MAX9 circuit protection devices in a 3P+N switchboard layout, helping reduce individual wiring links and improve board presentation.

Q. How many modules does the MX9B318N suit?
A. The MX9B318N is designed for 18 modules, making it suitable for compatible 18 module MAX9 switchboard rows.

Q. What current rating is the MX9B318N?
A. The MX9B318N is rated at 100A.

Q. What does the “N” mean in MX9B318N?
A. The “N” version includes a neutral terminal block, also commonly referred to as an N block, along with accessories.

Q. What is the difference between MX9B318 and MX9B318N?
A. The MX9B318 is the 3P+N 18 module busbar supplied with accessories, while the MX9B318N includes the additional neutral terminal block / N block and accessories.
