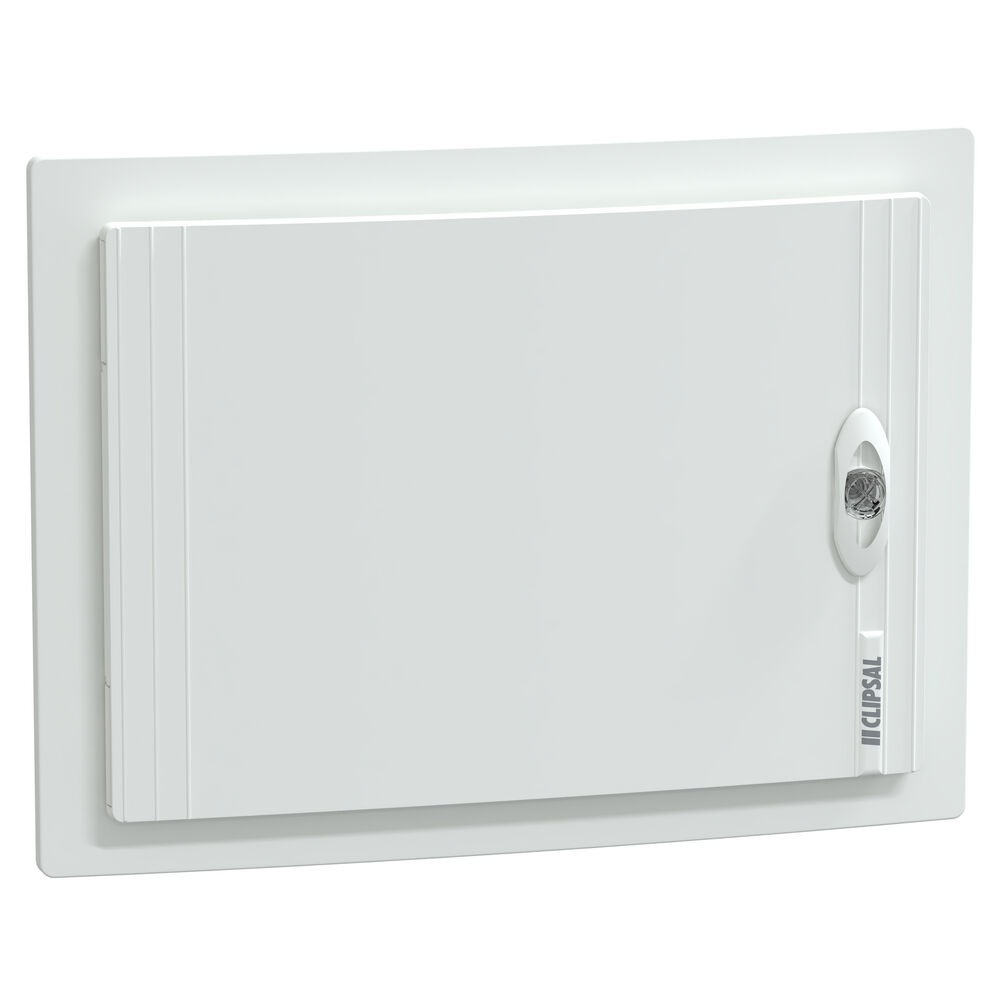

The Clipsal MAX9 MX9SB118F 18 Pole Flush Mount Switchboard is a professional single-row enclosure designed for modern residential and commercial circuit protection installations. With 18 module spaces, a neat flush-mounted finish, 100A rated current, reversible plain door and supplied installation accessories, it provides electricians with a clean and practical solution for housing Clipsal MAX9 circuit protection devices.

Key Features

  • 18 Pole Capacity: Provides 18 x 18mm module spaces in a single row, giving extra capacity compared with smaller 13 pole boards while keeping the enclosure compact.
  • Flush Mount Installation: Designed to be recessed into the wall for a clean, low-profile finish that suits modern homes, apartments and commercial interiors.
  • Part of the Clipsal MAX9 Range: Designed to complement Clipsal MAX9 circuit protection devices for a consistent, professional switchboard installation.
  • 100A Rated Current: Suitable for distribution applications requiring a reliable 100A rated enclosure.

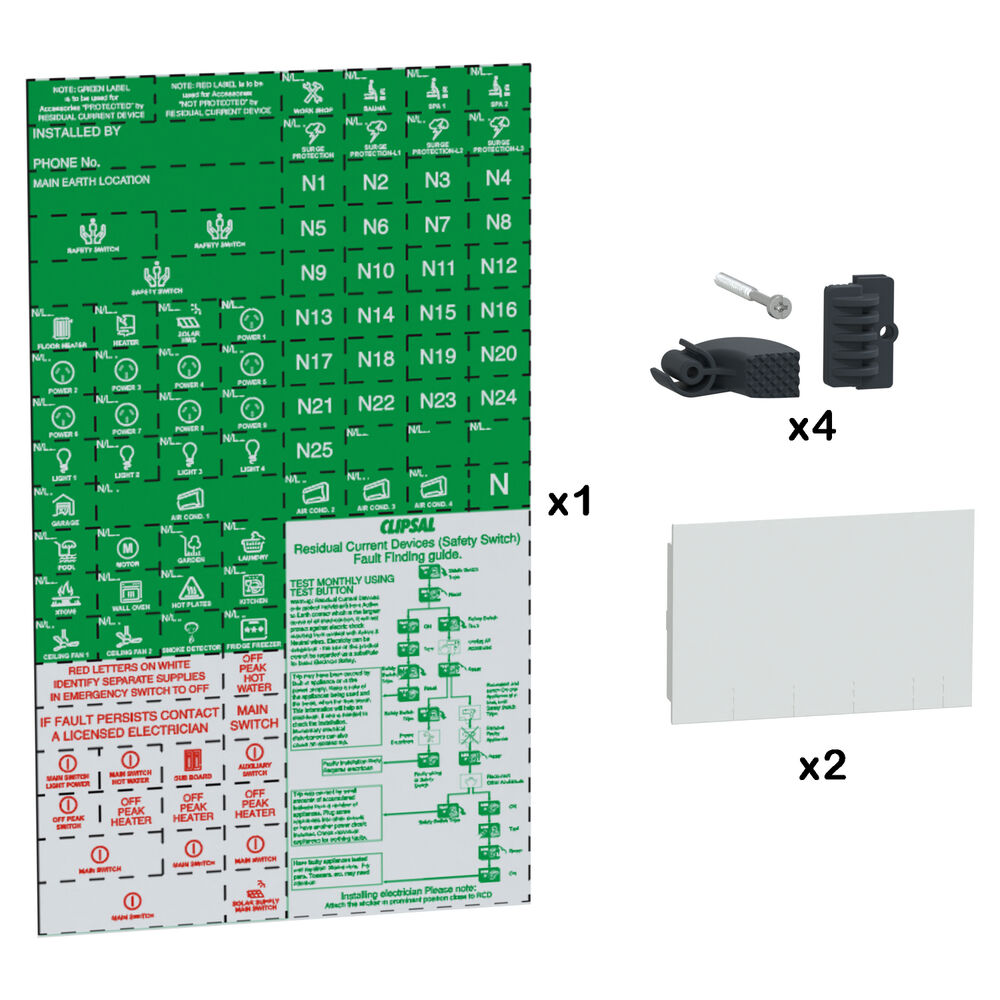

  • Supplied Installation Accessories: Includes an earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit to support efficient installation.
  • Reversible Plain Door: The plain door can be reversed to suit installation requirements and provide a tidy finished appearance.

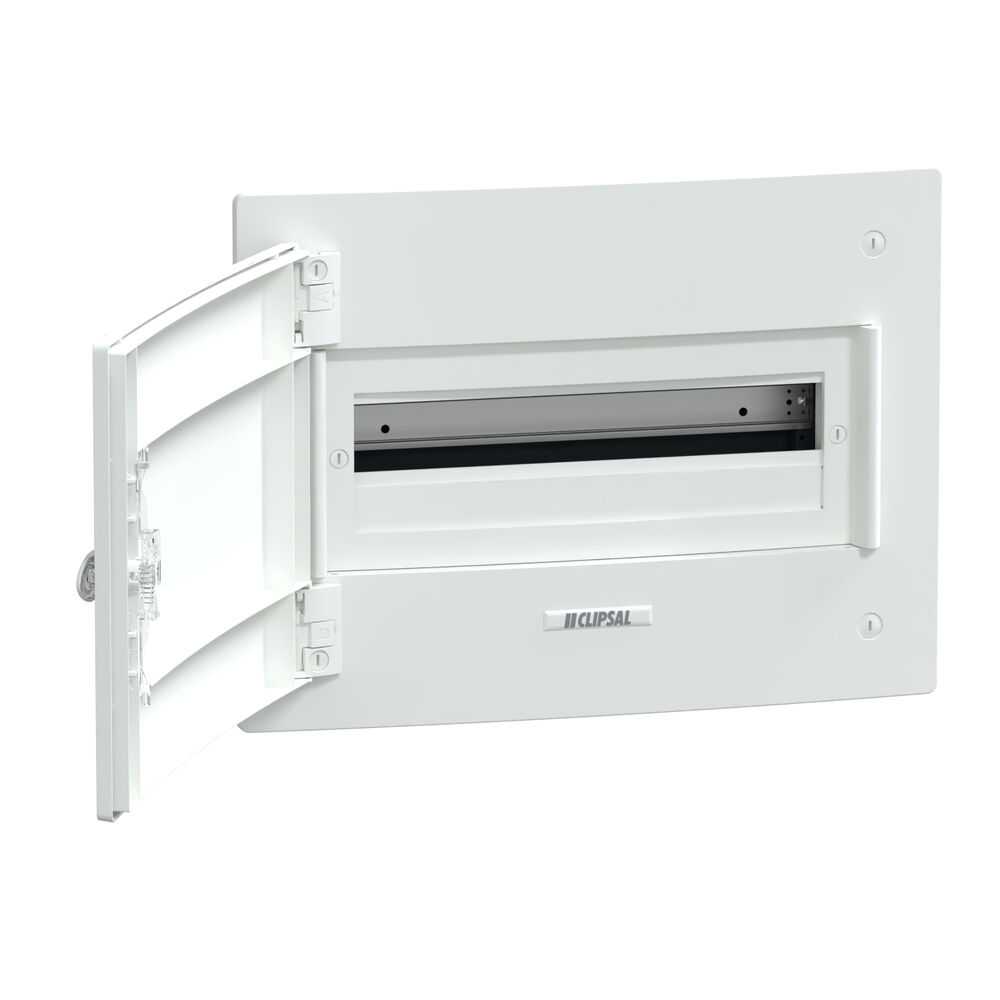

  • Adjustable Symmetrical DIN Rail: Allows compatible modular devices to be fitted neatly while helping simplify layout and wiring.
  • Knock-Out Cable Entries: Includes knock-out cable entries and a removable gland plate for flexible cable access during installation.
  • Durable Technoplastic Construction: Manufactured from strong technoplastic material with a white RAL 9003 finish.
  • IP40 & IK09 Rated: Provides IP40 ingress protection and IK09 impact resistance for suitable indoor switchboard applications.

Specifications

  • Model: MX9SB118F
  • Range: Clipsal MAX9
  • Product Type: Switchboard enclosure
  • Mounting Type: Flush mount
  • Number of Ways: 18 ways
  • Number of Rows: 1
  • Total Module Capacity: 18 x 18mm modules
  • Modules Per Row: 18
  • Device Application: Distribution
  • Rated Operational Voltage: 230–240V AC / 400–415V AC / 230/415V AC
  • Rated Current: 100A
  • Rated Insulation Voltage: 500V
  • Colour: White
  • Colour Reference: RAL 9003
  • Enclosure Material: Technoplastic
  • Door Type: Plain reversible door
  • Rail Type: Adjustable symmetrical DIN rail
  • Cable Entry: Knock-out cable entries and removable gland plate
  • Supplied Equipment: Earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit
  • IP Rating: IP40
  • IK Rating: IK09
  • Fire Resistance: 650°C conforming to IEC 60695-2-11
  • Standards: AS/NZS 61439.3 and AS/NZ 3000

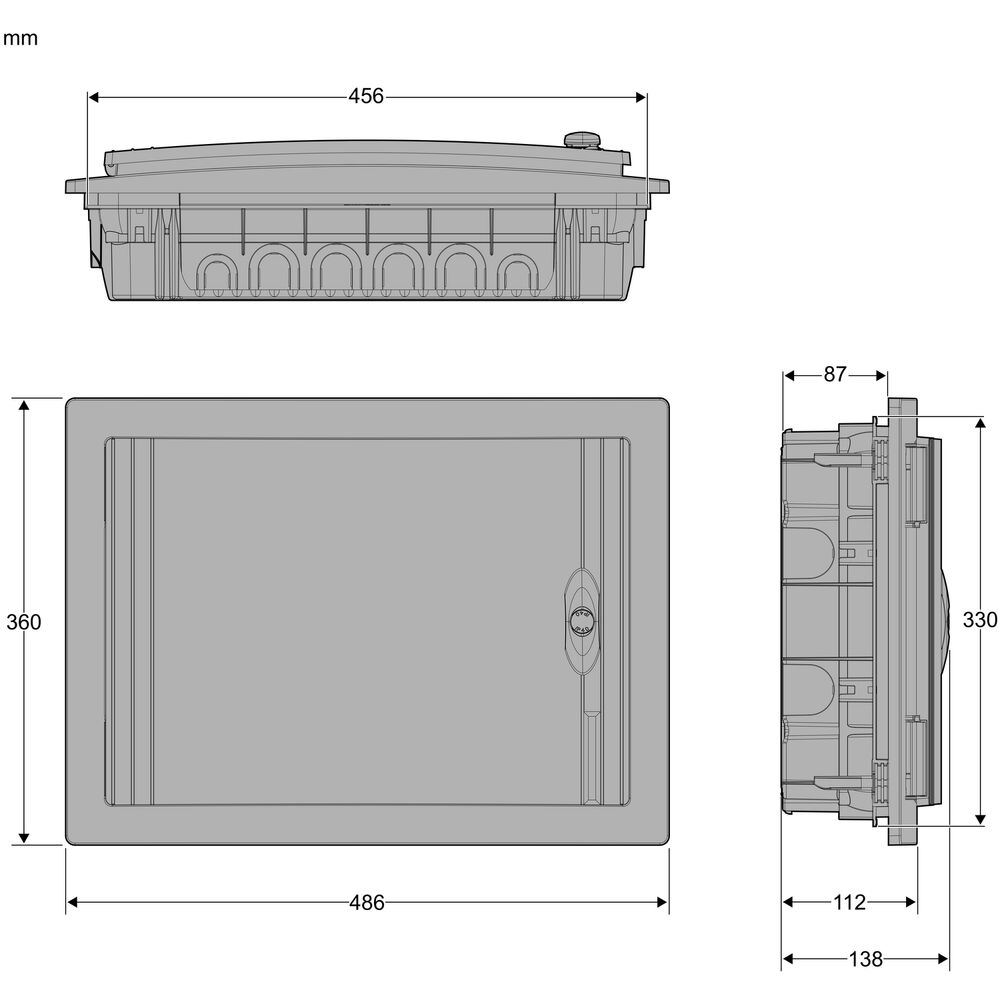

  • Width: 486mm
  • Height: 360mm
  • Depth: 135mm
  • Warranty: 7 years

Applications

  • Residential switchboards
  • Apartment distribution boards
  • Light commercial switchboards
  • New home electrical installations
  • Renovation and switchboard upgrade projects
  • Sub-board installations
  • Indoor circuit protection enclosures
  • MAX9 circuit protection installations
  • Electrical distribution applications requiring a neat flush-mounted finish

The Clipsal MAX9 MX9SB118F 18 Pole Flush Mount Switchboard is a practical and professional enclosure for modern indoor electrical distribution. With its 18 pole capacity, flush-mounted design, supplied installation accessories, IP40 protection, IK09 impact resistance and compatibility with the Clipsal MAX9 circuit protection range, it is a dependable choice for electricians working on residential and light commercial switchboard installations.

Q. How many modules does the Clipsal MX9SB118F hold?
A. The MX9SB118F holds 18 x 18mm modules in a single row.

Q. Is this switchboard surface mount or flush mount?
A. This model is flush mount, meaning it is designed to be recessed into the wall for a neat and low-profile finish.

Q. What accessories are supplied with the switchboard?
A. It is supplied with an earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit.

Q. Is the MX9SB118F suitable for outdoor use?
A. No. The enclosure has an IP40 rating and is designed for suitable indoor installations or protected locations only.

Q. What is the difference between MX9SB118F and MX9SB118S?
A. The MX9SB118F is the flush mount version, while the MX9SB118S is the surface mount version. Both provide 18 module spaces, but the installation style is different.
