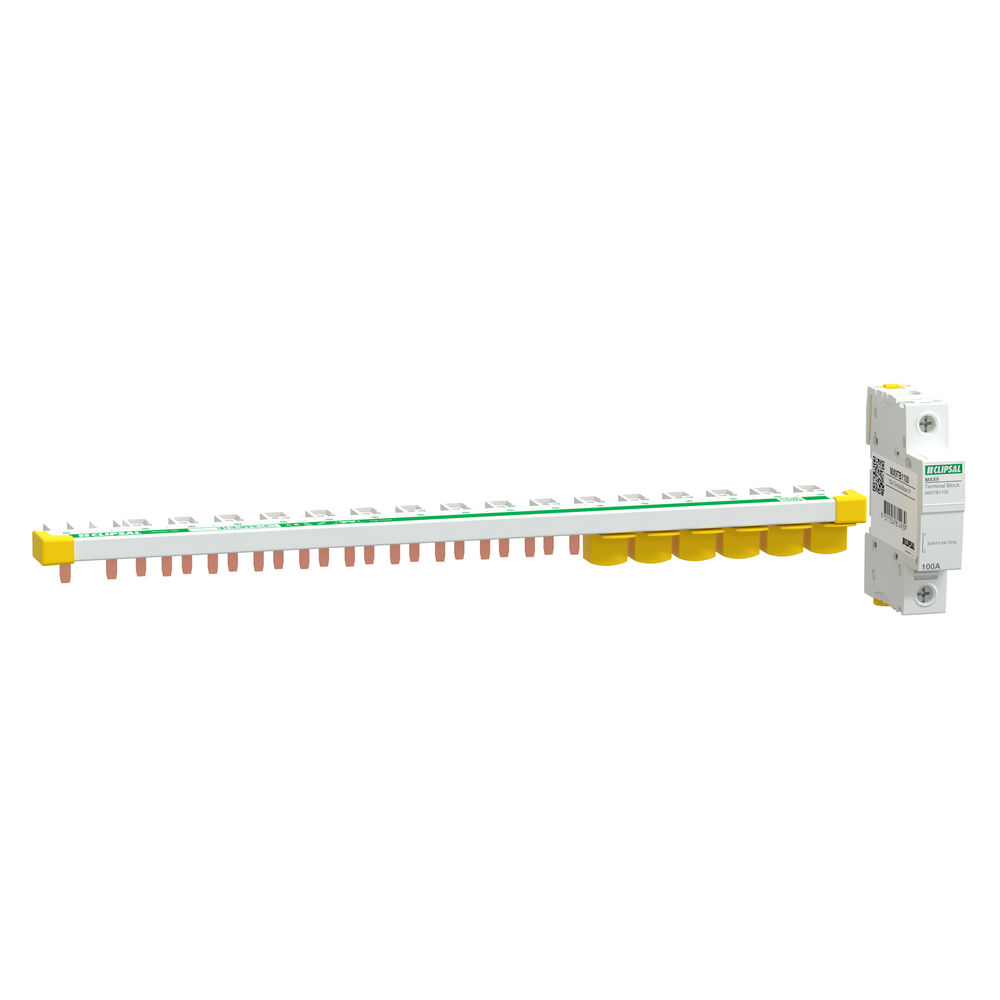

The Clipsal MAX9 MX9B118N 1P+N 18 Module Busbar with Neutral Terminal Block is designed to make compatible MAX9 switchboard wiring faster, cleaner and more organised. Rated at 100A, this top feed busbar suits 1P+N single phase and neutral layouts across 18 modules, and is supplied with an N block and accessories to support a professional MAX9 installation.

Key Features

  • 1P+N Busbar Configuration: Designed for single phase and neutral MAX9 circuit protection layouts.
  • 18 Module Capacity: Suits 18 module MAX9 switchboard rows, making it ideal for larger single phase board layouts.
  • Includes Neutral Terminal Block: Supplied with an N block to support incoming neutral connection and a cleaner switchboard wiring arrangement.
  • 100A Rated Current: Built for dependable electrical distribution within compatible Clipsal MAX9 installations.
  • Top Feed Design: Designed as a top feed busbar, helping create a practical and efficient wiring layout inside the switchboard.
  • Supplied with Accessories: Includes installation accessories to help complete the busbar assembly neatly and correctly.
  • Faster Switchboard Wiring: Helps reduce the need for multiple individual cable links between circuit protection devices.
  • Cleaner Board Presentation: Supports a more organised switchboard layout by reducing excess wiring and improving overall circuit arrangement.
  • Compatible with Clipsal MAX9 Devices: Designed for use with compatible MAX9 switchboards and Clipsal circuit protection products.
  • Ideal for MAX9 Upgrades and New Installations: A practical choice for electricians completing new boards, renovation work and MAX9 circuit protection upgrades.

Specifications

  • Model: MX9B118N
  • Brand: Clipsal by Schneider Electric
  • Range: MAX9
  • Product Type: Busbar / MAXBAR connection accessory
  • Busbar Type: Top feed
  • Poles Configuration: 1P+N
  • Number of Modules: 18 modules
  • Rated Current: 100A
  • Included Component: Neutral terminal block / N block
  • Compatible System: Clipsal MAX9 switchboards and compatible MAX9 circuit protection devices

Applications

  • Clipsal MAX9 switchboard installations
  • Residential switchboards
  • Light commercial distribution boards
  • Single phase circuit protection layouts
  • RCBO feeding applications
  • Switchboard upgrades
  • New home electrical installations
  • Renovation and replacement work
  • Cleaner switchboard wiring layouts
  • Electrical distribution applications using compatible MAX9 devices

The Clipsal MAX9 MX9B118N 1P+N 18 Module Busbar with Neutral Terminal Block is a practical accessory for electricians wanting a faster and neater MAX9 switchboard installation. With its 18 module layout, 100A rating, top feed design and included N block, it is a reliable choice for compatible residential and light commercial circuit protection applications.

Q. What is the Clipsal MX9B118N used for?
A. The MX9B118N is used to feed compatible Clipsal MAX9 circuit protection devices in a 1P+N switchboard layout, helping reduce individual wiring links and improve the overall board presentation.

Q. How many modules does the MX9B118N suit?
A. The MX9B118N is designed for 18 modules, making it suitable for compatible 18 module MAX9 switchboard rows.

Q. What current rating is the MX9B118N?
A. The MX9B118N is rated at 100A.

Q. What does the “N” mean in MX9B118N?
A. The “N” version is supplied with a neutral terminal block, also referred to as an N block, along with accessories.

Q. What is the difference between MX9B118 and MX9B118N?
A. The MX9B118 is the 1P+N 18 module busbar supplied with accessories, while the MX9B118N includes the additional neutral terminal block / N block and accessories.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 100A
Type Insulated Busbar
Poles 1P+N
Range Clipsal MAX9
Module 18
PRODUCT INFO
SKU CLMX9B118N
Model # MX9B118N
Barcode # 3606488056828
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.3950kg
Shipping Width 0.040m
Shipping Height 0.105m
Shipping Length 0.400m
