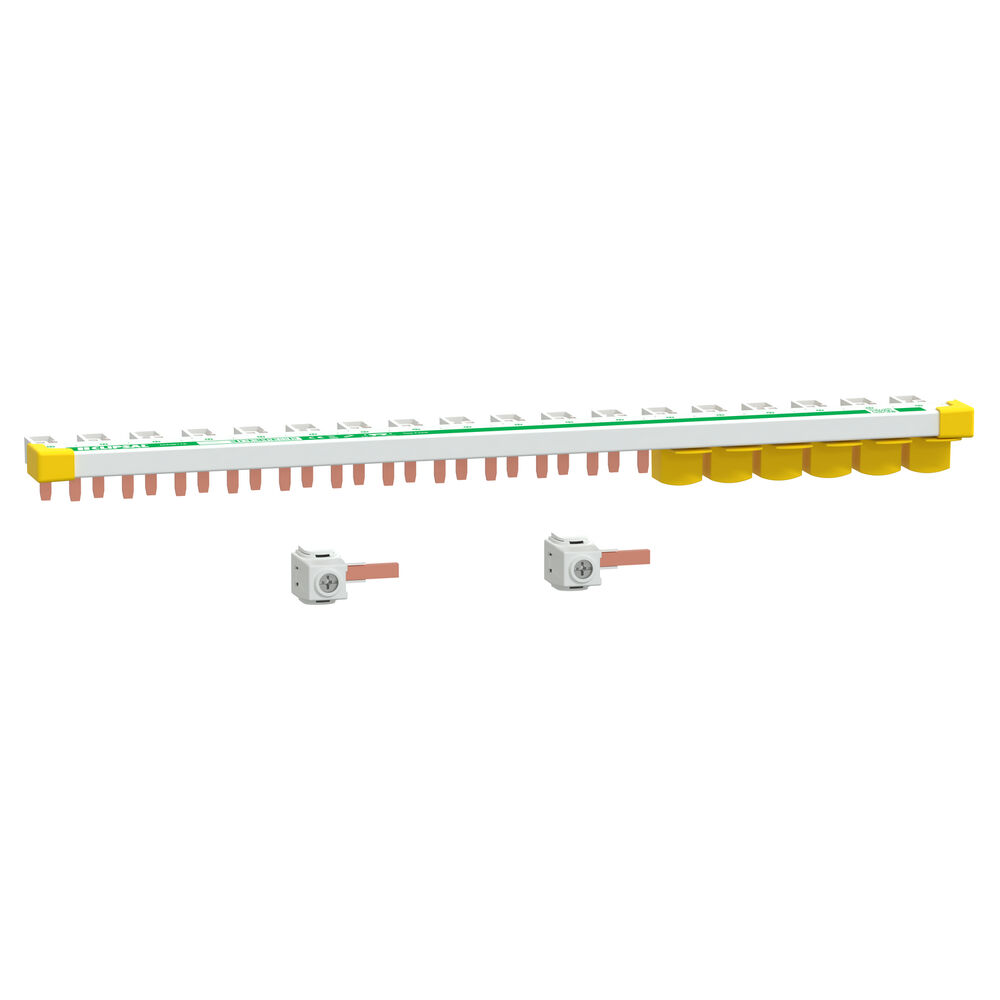

The Clipsal MAX9 MX9B118 1P+N 18 Module Busbar is designed to make compatible MAX9 switchboard installations faster, neater and more consistent. Rated at 100A, this top feed busbar is suited to 1P+N single phase and neutral layouts across 18 modules, helping reduce individual cable links and improve the overall presentation of the switchboard.

Key Features

  • 1P+N Busbar Configuration: Designed for single phase and neutral circuit protection layouts using compatible Clipsal MAX9 devices.
  • 18 Module Capacity: Suits 18 module MAX9 switchboard rows, making it ideal for larger single row applications or wider MAX9 switchboard layouts.
  • 100A Rated Current: Built to support dependable power distribution within compatible Clipsal MAX9 circuit protection installations.
  • Top Feed Design: Provides a practical top feed arrangement, helping electricians create a clean and efficient wiring layout inside the board.
  • Supplied with Accessories: Listed as supplied with accessories to help support installation and finishing of the busbar assembly.
  • Cleaner Switchboard Wiring: Helps reduce individual cable links between protective devices, creating a tidier and more professional board presentation.
  • Faster Installation: Designed to simplify circuit protection wiring and reduce time spent cutting, stripping and terminating multiple link cables.
  • Compatible with Clipsal MAX9 Devices: Made for use with compatible Clipsal MAX9 switchboards and circuit protection products.
  • Professional MAX9 System Finish: Helps achieve a consistent installation when used with Clipsal MAX9 enclosures, RCBOs and circuit protection accessories.
  • Ideal for New Boards and Upgrades: Suitable for new switchboard builds, renovation work and replacement projects using the MAX9 platform.

Specifications

  • Model: MX9B118
  • Brand: Clipsal by Schneider Electric
  • Range: MAX9
  • Product Type: Busbar / MAXBAR connection accessory
  • Busbar Type: Top feed
  • Poles Configuration: 1P+N
  • Number of Modules: 18 modules
  • Rated Current: 100A
  • Compatible System: Clipsal MAX9 switchboards and compatible MAX9 circuit protection devices

Applications

  • Clipsal MAX9 switchboard installations
  • Residential switchboards
  • Light commercial distribution boards
  • Single phase circuit protection layouts
  • RCBO feeding applications
  • Switchboard upgrades
  • New home electrical installations
  • Renovation and replacement work
  • Cleaner switchboard wiring layouts
  • Electrical distribution applications using compatible MAX9 devices

The Clipsal MAX9 MX9B118 1P+N 18 Module Busbar is a practical accessory for electricians wanting faster, cleaner and more professional MAX9 switchboard wiring. With its 18 module layout, 100A rating and top feed design, it is a reliable choice for compatible residential and light commercial circuit protection installations.

Q. What is the Clipsal MX9B118 used for?
A. The MX9B118 is used to feed compatible Clipsal MAX9 circuit protection devices in a 1P+N switchboard layout, helping reduce individual wiring links.

Q. How many modules does the MX9B118 suit?
A. The MX9B118 is designed for 18 modules, making it suitable for compatible 18 module MAX9 switchboard rows.

Q. What current rating is the MX9B118?
A. The MX9B118 is rated at 100A.

Q. Is the MX9B118 for single phase or three phase installations?
A. The MX9B118 is a 1P+N busbar, making it suitable for compatible single phase and neutral MAX9 circuit protection layouts.

Q. What is the difference between MX9B118 and MX9B118N?
A. The MX9B118 is the 1P+N 18 module busbar supplied with accessories. The MX9B118N version includes an N block along with accessories.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 100A
Type Insulated Busbar
Poles 1P+N
Range Clipsal MAX9
Module 18
PRODUCT INFO
SKU CLMX9B118
Model # MX9B118
Barcode # 3606488056880
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.2800kg
Shipping Width 0.040m
Shipping Height 0.105m
Shipping Length 0.400m
