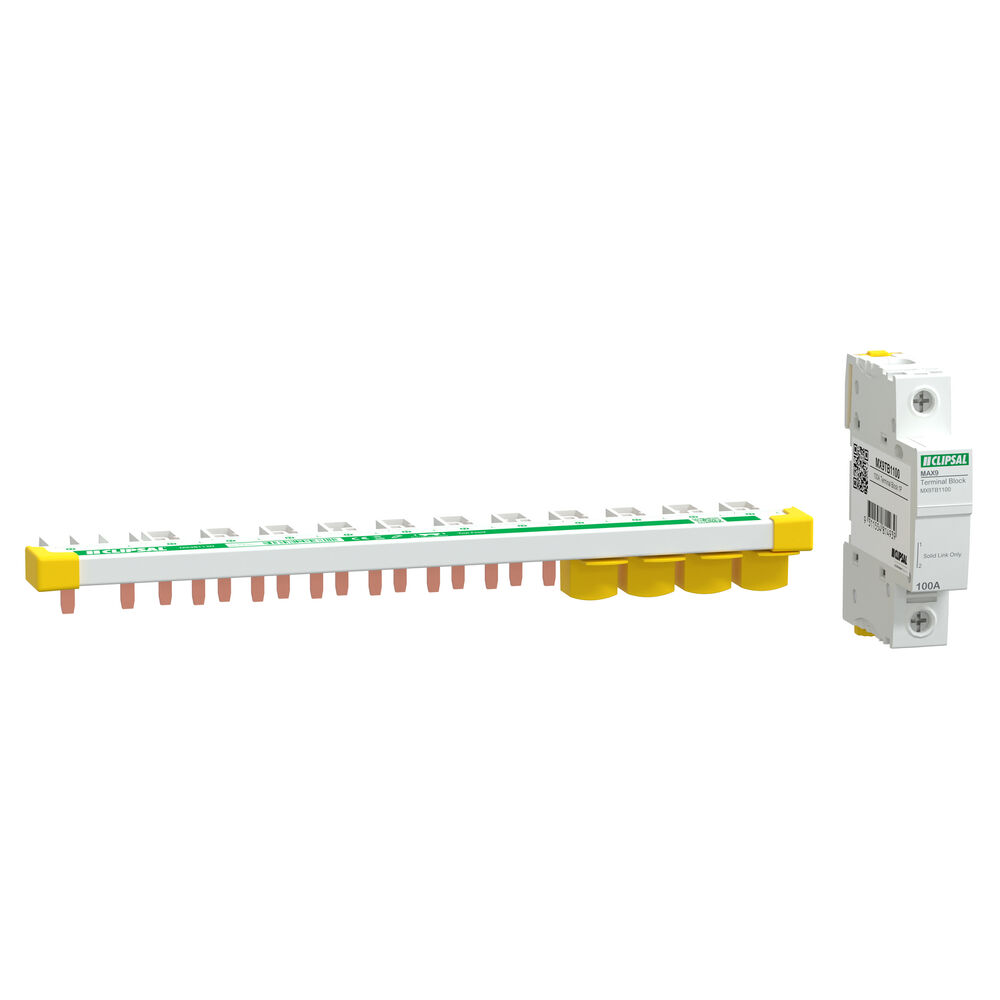

The Clipsal MAX9 MX9B113N 1P+N 13 Module Busbar with Neutral Terminal Block is designed to make MAX9 switchboard wiring faster, cleaner and more organised. Rated at 100A, this top feed busbar suits compatible Clipsal MAX9 1P+N circuit protection layouts and includes an Neutral Terminal Block and accessories, helping electricians achieve a neat, professional switchboard finish.

Key Features

  • 1P+N Busbar Configuration: Designed for single phase and neutral MAX9 circuit protection layouts.
  • 13 Module Capacity: Suits 13 module MAX9 switchboard rows, making it ideal for compact single row residential and light commercial applications.
  • Includes N Block: Supplied with a neutral block, providing a practical connection solution for compatible MAX9 installations.
  • 100A Rated Current: Built for dependable electrical distribution within compatible Clipsal MAX9 switchboard systems.
  • Top Feed Design: Designed as a top feed busbar, helping create a clean and efficient wiring layout inside the switchboard.
  • Supplied with Accessories: Includes required accessories to help support correct installation and finishing of the busbar assembly.
  • Faster Switchboard Wiring: Helps reduce individual cable links between devices, saving time during switchboard fit-off.
  • Cleaner Board Presentation: Supports a tidy, professional board layout by reducing excess wiring and improving circuit organisation.
  • Compatible with Clipsal MAX9 Devices: Designed for use with compatible MAX9 circuit protection products.
  • Ideal for MAX9 Switchboard Upgrades: A practical option for new switchboards, renovation work and circuit protection upgrades.

Specifications

  • Model: MX9B113N
  • Brand: Clipsal by Schneider Electric
  • Range: MAX9
  • Product Type: Busbar / MAXBAR connection accessory
  • Busbar Type: Top feed
  • Poles Configuration: 1P+N
  • Number of Modules: 13 modules
  • Rated Current: 100A
  • Compatible System: Clipsal MAX9 switchboards and compatible MAX9 circuit protection devices

Applications

  • Clipsal MAX9 switchboard installations
  • Residential switchboards
  • Light commercial distribution boards
  • Single phase circuit protection layouts
  • RCBO feeding applications
  • Switchboard upgrades
  • New home electrical installations
  • Renovation and replacement work
  • Cleaner switchboard wiring layouts
  • Electrical distribution applications using compatible MAX9 devices

The Clipsal MAX9 MX9B113N 1P+N 13 Module Busbar with N Block is a practical accessory for electricians wanting a faster and neater MAX9 switchboard installation. With its 13 module layout, 100A rating, top feed design and included N block, it is a reliable choice for compatible residential and light commercial circuit protection applications.

Q. What is the Clipsal MX9B113N used for?
A. The MX9B113N is used to feed compatible Clipsal MAX9 circuit protection devices in a 1P+N switchboard layout, helping reduce individual wiring links and improve board presentation.

Q. How many modules does the MX9B113N suit?
A. The MX9B113N is designed for 13 modules, making it suitable for compatible 13 way MAX9 switchboard rows.

Q. What current rating is the MX9B113N?
A. The MX9B113N is rated at 100A.

Q. What does the “N” mean in MX9B113N?
A. The “N” version is supplied with a neutral block, along with accessories for installation.

Q. What is the difference between MX9B113 and MX9B113N?
A. The MX9B113 is the 1P+N 13 module busbar with accessories, while the MX9B113N includes the additional N block and accessories.
