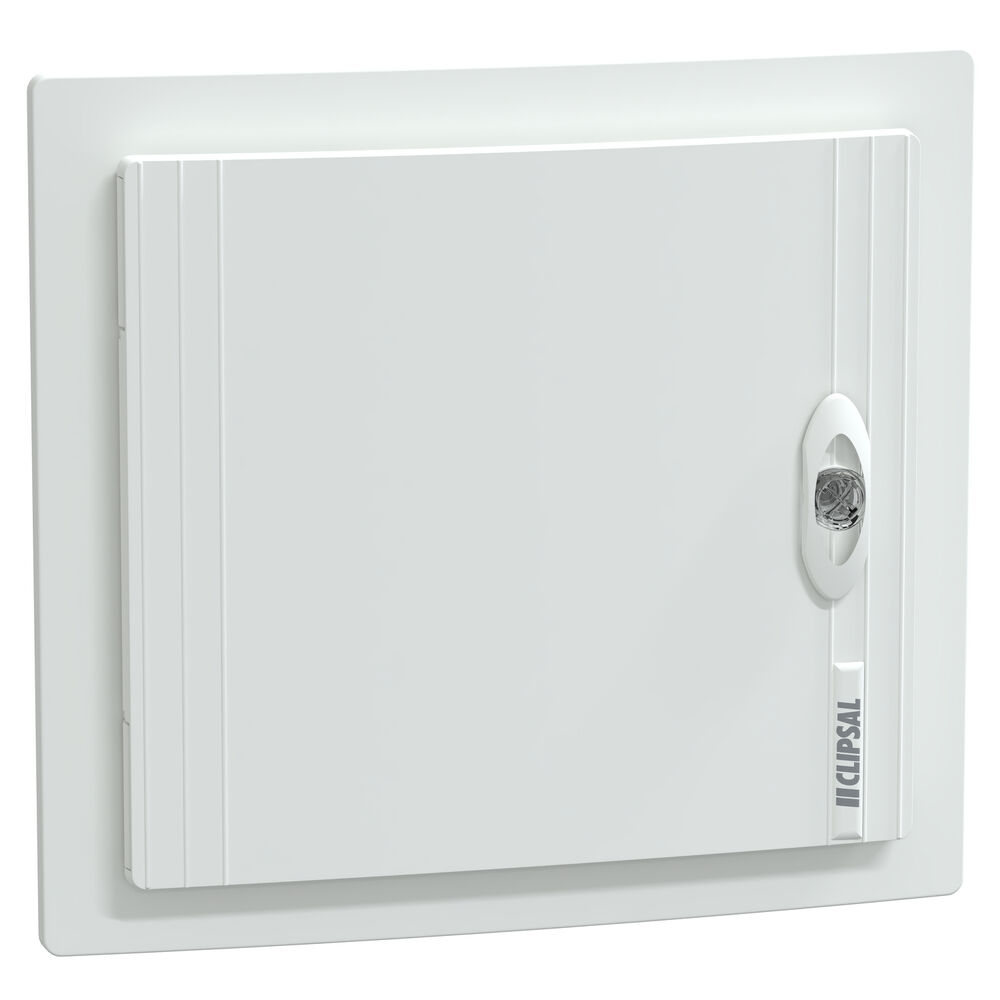

The Clipsal MAX9 MX9SB113F 13 Pole Flush Mount Switchboard is a compact, professional switchboard enclosure designed for residential and commercial distribution applications. With a clean white finish, flush mounting design, 13 module capacity and durable technoplastic construction, it provides a neat, modern solution for housing MAX9 circuit protection devices. Supplied with essential installation accessories including an earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit, this enclosure is ready for efficient installation by licensed electricians.

Key Features

  • 13 Pole Capacity: Provides 13 x 18mm modules in a single row, making it ideal for smaller residential or commercial circuit protection layouts.
  • Flush Mount Design: Recesses neatly into the wall for a clean, low-profile finish, helping create a more streamlined switchboard installation.
  • Part of the MAX9 Range: Designed to complement Clipsal MAX9 circuit protection products for a consistent, professional installation.
  • Residential & Commercial Use: Suitable for distribution applications across homes, apartments, offices, retail spaces and light commercial projects.
  • Supplied Installation Accessories: Comes with earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit to assist with installation.
  • Durable Technoplastic Enclosure: Built from strong technoplastic material with a white RAL 9003 finish for a clean and reliable enclosure solution.

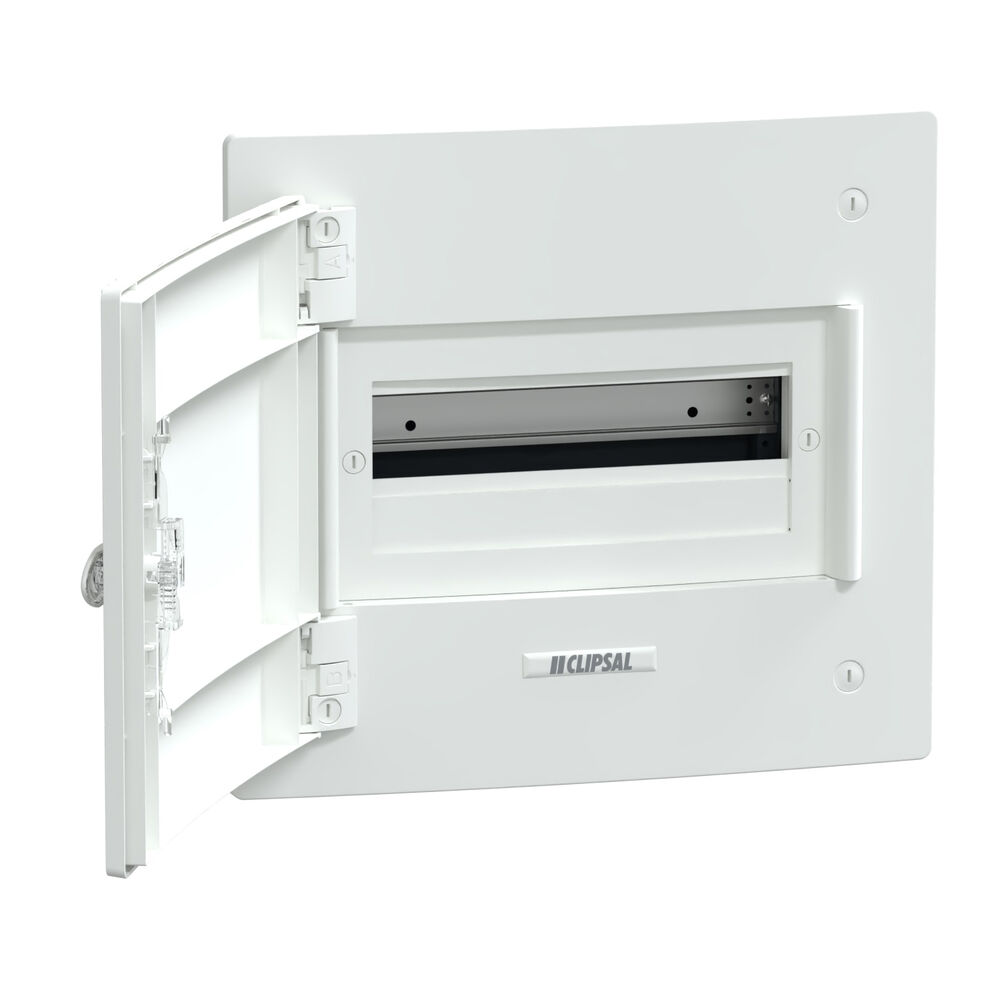

  • Reversible Plain Door: Features a plain reversible door, giving installers flexibility during installation and a tidy finished appearance.
  • Adjustable Symmetrical DIN Rail: Includes an adjustable DIN rail to suit compatible modular devices and simplify layout during fit-off.
  • IP40 & IK09 Rated: Provides IP40 ingress protection and IK09 impact resistance for dependable indoor switchboard protection.
  • 7 Year Warranty: Backed by Clipsal’s 7-year warranty for added confidence.

Specifications

  • Model: MX9SB113F
  • Range: Clipsal MAX9
  • Product Type: Switchboard enclosure
  • Mounting Type: Flush mount
  • Number of Ways: 13 ways
  • Number of Rows: 1
  • Total Module Capacity: 13 x 18mm modules
  • Modules Per Row: 13
  • Device Application: Distribution
  • Rated Operational Voltage: 230–240V AC / 400–415V AC / 230/415V AC
  • Rated Current: 100A
  • Rated Insulation Voltage: 500V
  • Colour: White
  • Colour Reference: RAL 9003
  • Enclosure Material: Technoplastic
  • Door Type: Plain reversible door
  • Rail Type: Adjustable symmetrical DIN rail
  • Cable Entry: Knock-out cable entries and removable gland plate

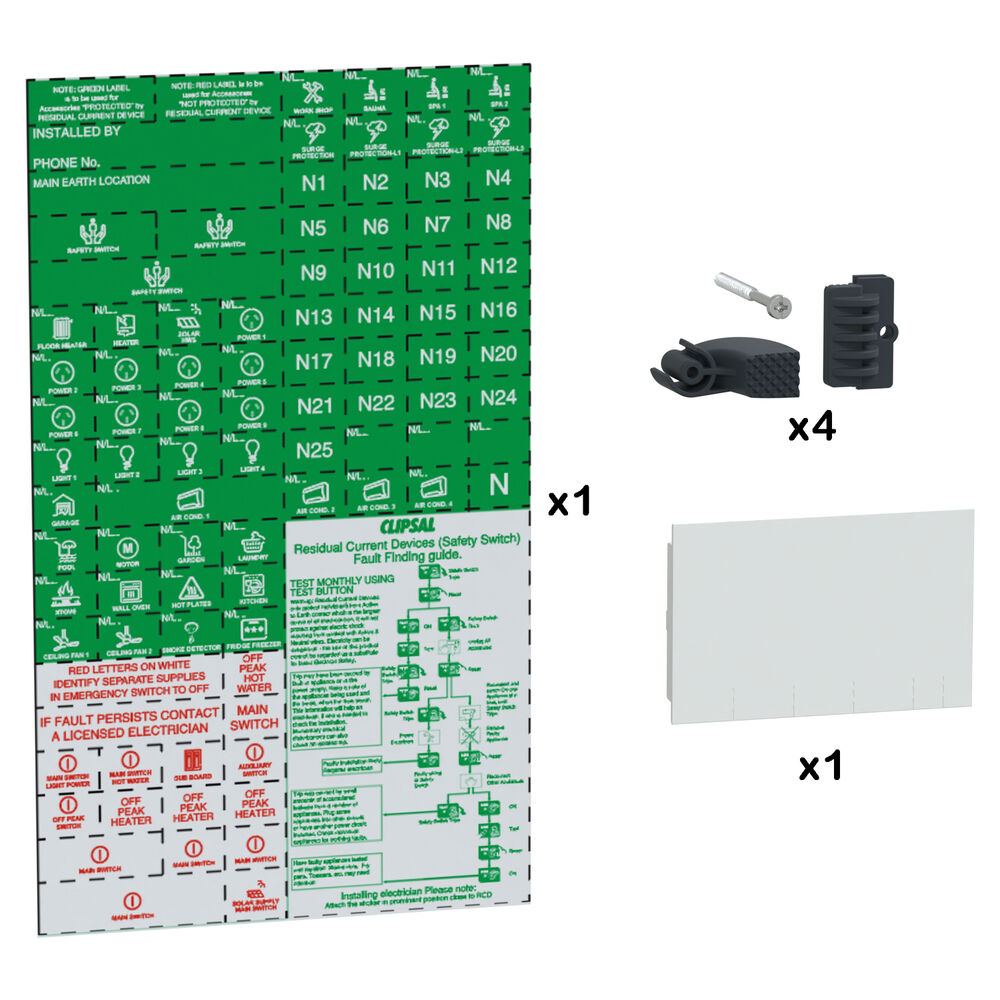

  • Supplied Equipment: Earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit
  • IP Rating: IP40
  • IK Rating: IK09
  • Fire Resistance: 650°C conforming to IEC 60695-2-11
  • Standards: AS/NZS 61439.3 and AS/NZ 3000

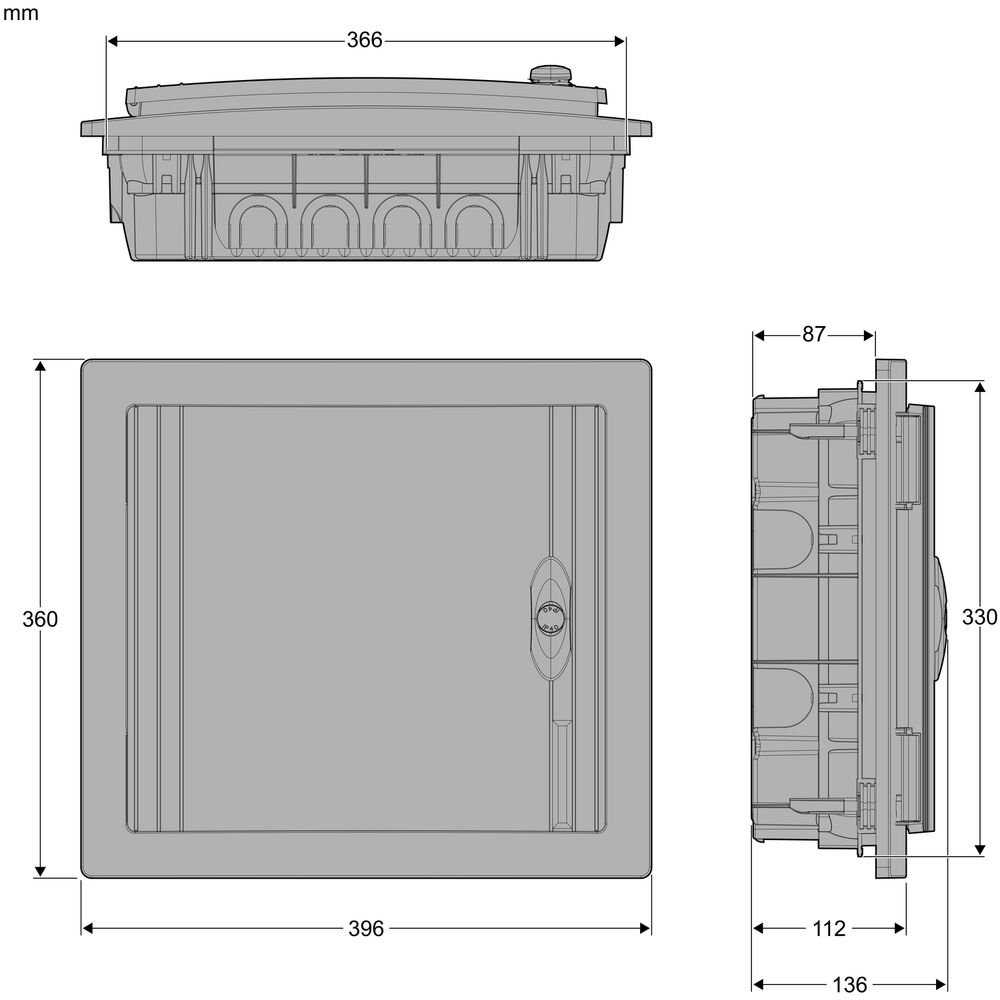

  • Width: 396mm
  • Height: 360mm
  • Depth: 135mm
  • Warranty: 7 years

Applications

  • Residential switchboards
  • Apartment distribution boards
  • Small commercial switchboards
  • Renovation and upgrade projects
  • New home electrical installations
  • Sub-board installations
  • Indoor circuit protection enclosures
  • MAX9 circuit protection installations
  • Electrical distribution applications requiring a neat flush-mounted finish

The Clipsal MAX9 MX9SB113F 13 Pole Flush Mount Switchboard is a compact and professional enclosure for modern electrical distribution installations. With its flush mount design, 13 module capacity, supplied installation accessories, IP40 protection, IK09 impact resistance and compatibility with the Clipsal MAX9 range, it is a dependable choice for electricians completing residential and light commercial switchboard work.

Q. How many modules does the Clipsal MX9SB113F hold?
A. The MX9SB113F holds 13 x 18mm modules in a single row.

Q. Is this switchboard surface mount or flush mount?
A. This model is flush mount, meaning it is designed to be recessed into the wall for a neat, low-profile finish.

Q. What accessories are supplied with the switchboard?
A. It is supplied with an earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit.

Q. Is the MX9SB113F suitable for outdoor use?
A. No. This enclosure has an IP40 rating and is designed for suitable indoor switchboard installations. For exposed or weatherproof applications, a weatherproof enclosure should be selected.

Q. What standards does this switchboard comply with?
A. The MX9SB113F is listed to AS/NZS 61439.3 and AS/NZ 3000.
