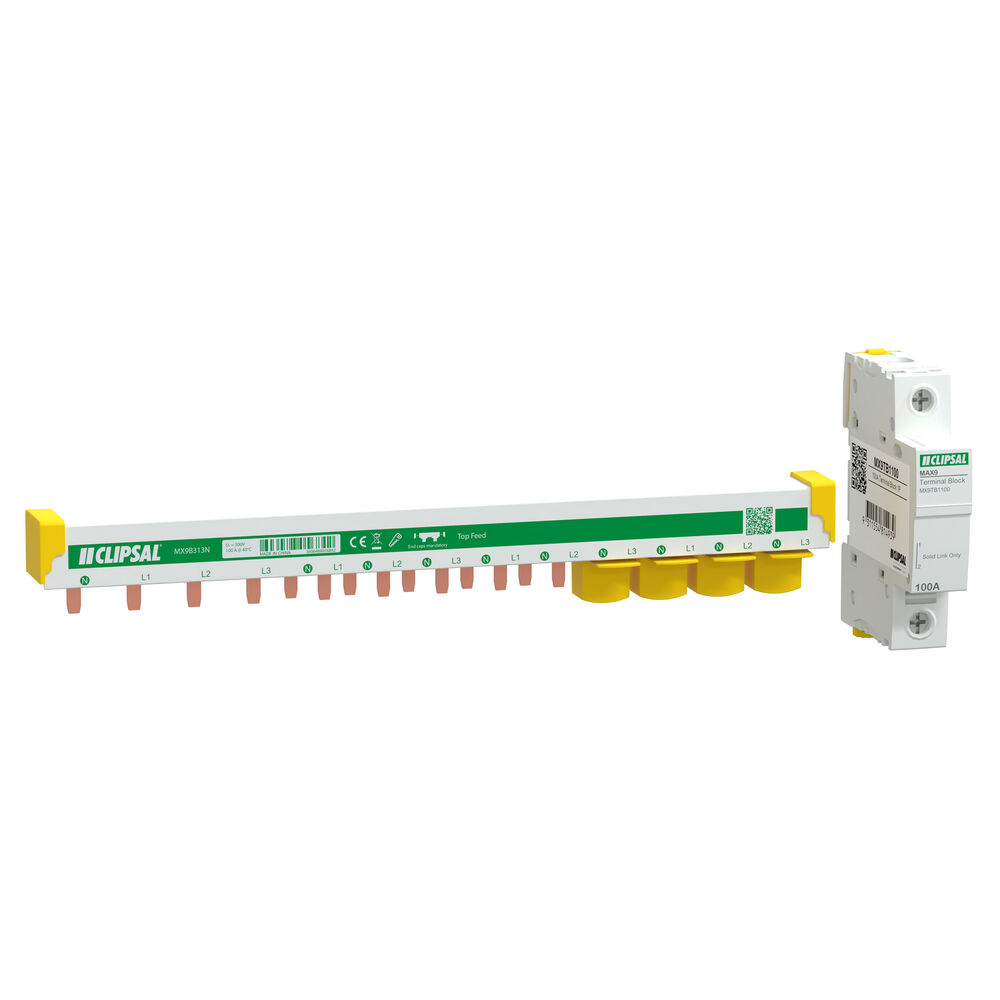

The Clipsal MAX9 MX9B313N 3P+N 13 Module Busbar with Neutral Terminal Block is designed to help electricians complete three phase MAX9 switchboard installations faster, cleaner and with a more professional finish. Rated at 100A, this top feed busbar suits 3 phase + neutral layouts across 13 modules and is supplied with an N block and accessories to support a neat and practical MAX9 installation.

Key Features

  • 3P+N Busbar Configuration: Designed for three phase and neutral MAX9 circuit protection layouts, helping distribute supply neatly across compatible devices.
  • 13 Module Capacity: Suits 13 module MAX9 switchboard rows, making it ideal for compact three phase board layouts.
  • Includes Neutral Terminal Block: Supplied with an N block to assist with neutral connection and help create a cleaner switchboard wiring arrangement.
  • 100A Rated Current: Built to support dependable electrical distribution within compatible Clipsal MAX9 switchboard systems.
  • Top Feed MAXBAR Design: Designed as a top feed comb busbar to help create a practical and organised wiring layout from the incoming supply.
  • Supplied with Accessories: Includes accessories to help complete the busbar installation neatly and correctly.
  • Cleaner Switchboard Wiring: Helps reduce individual cable links between devices, creating a tidier and easier-to-follow switchboard layout.
  • Faster Installation: Saves time during board fit-off by reducing repetitive cutting, stripping and terminating of link cables.
  • Compatible with Clipsal MAX9 Devices: Designed for use with compatible Clipsal MAX9 switchboards and circuit protection products.
  • Ideal for Three Phase Applications: A practical choice for residential, commercial and light industrial installations using MAX9 three phase circuit protection layouts.

Specifications

  • Model: MX9B313N
  • Brand: Clipsal by Schneider Electric
  • Range: MAX9
  • Product Type: MAXBAR / busbar connection accessory
  • Busbar Type: Top feed comb busbar
  • Poles Configuration: 3P+N
  • Number of Modules: 13 modules
  • Rated Current: 100A
  • Included Component: Neutral terminal block / N block
  • Compatible System: Clipsal MAX9 switchboards and compatible MAX9 circuit protection devices

Applications

  • Clipsal MAX9 three phase switchboard installations
  • Residential three phase switchboards
  • Commercial distribution boards
  • Light industrial distribution boards
  • Three phase circuit protection layouts
  • RCBO feeding applications
  • Switchboard upgrades
  • New electrical installations
  • Renovation and replacement work
  • Cleaner switchboard wiring layouts

The Clipsal MAX9 MX9B313N 3P+N 13 Module Busbar with Neutral Terminal Block is a smart accessory for electricians wanting faster, neater and more organised MAX9 switchboard wiring. With its 13 module layout, 100A rating, top feed design and included N block, it is a dependable choice for compatible three phase residential, commercial and light industrial circuit protection installations.

Q. What is the Clipsal MX9B313N used for?
A. The MX9B313N is used to feed compatible Clipsal MAX9 circuit protection devices in a 3P+N switchboard layout, helping reduce individual wiring links and improve board presentation.

Q. How many modules does the MX9B313N suit?
A. The MX9B313N is designed for 13 modules, making it suitable for compatible 13 module MAX9 switchboard rows.

Q. What current rating is the MX9B313N?
A. The MX9B313N is rated at 100A.

Q. What does the “N” mean in MX9B313N?
A. The “N” version includes a neutral terminal block, also referred to as an N block, along with accessories.

Q. What is the difference between MX9B313 and MX9B313N?
A. The MX9B313 is the 3P+N 13 module busbar supplied with accessories, while the MX9B313N includes the additional neutral terminal block / N block and accessories.
