Clipsal MAX9 Pro 24 Way Distribution Board 250A Main Switch
SKU: CLMX9DB24S250
Special Order
$1,001.00
$910.00 ex GST
Special Order
This is a special order item. Please allow extra time for delivery.
Buy Now, Pay Later with
Did You Also Need…?
55% OFF
RRP $295.00
Next Day Typical Dispatch
On All Orders
Australian Company
Owned & Operated
25+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind

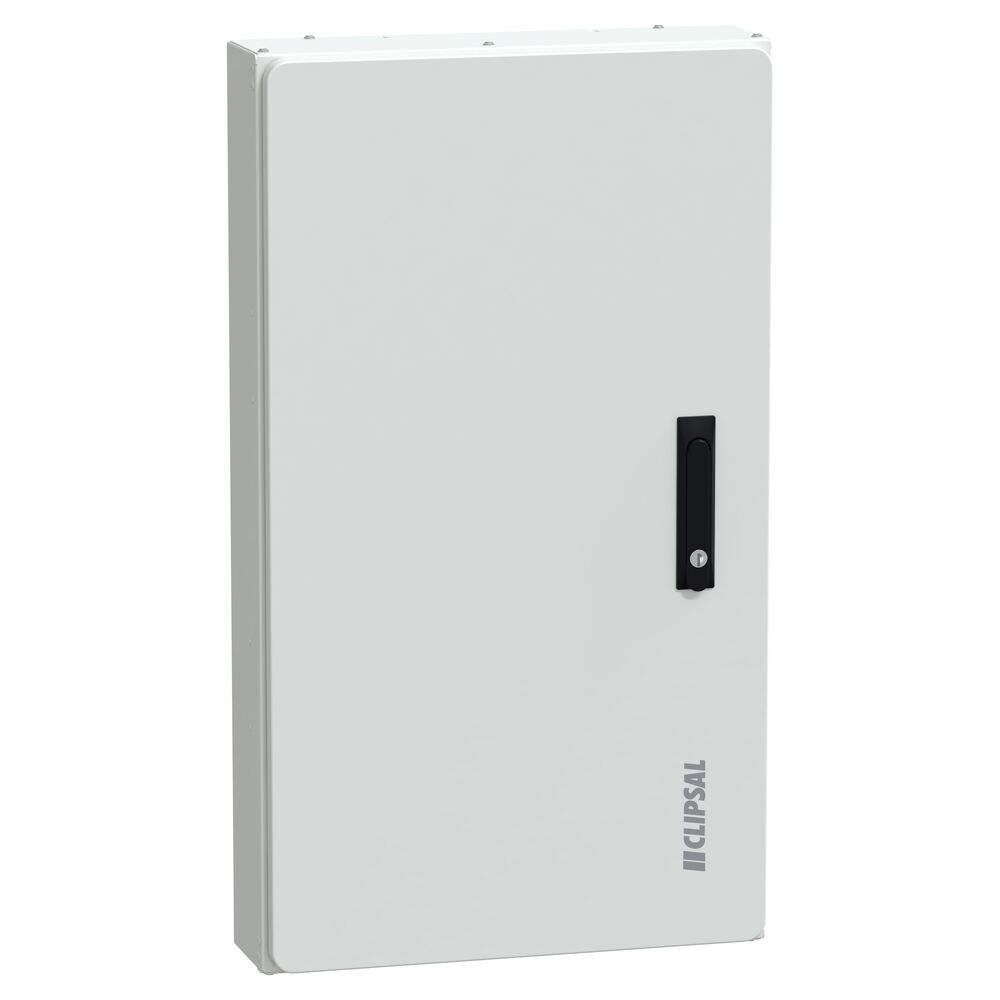

The Clipsal MAX9 Pro MX9DB24S250 is a robust, surface-mounted distribution board designed for high-capacity residential, commercial, and light industrial electrical systems. With 24 ways and a factory-fitted 250A main switch-disconnector, it provides a streamlined, standards-compliant solution for circuit protection and load distribution. Featuring a galvanised steel enclosure, IP30 rating, and comprehensive internal components, this board is engineered for reliability, safety, and ease of installation.
Key Features
- 24 Way Load Centre – Accommodates MCBs, RCBOs, and AFDDs across 24 module spaces
- 250A Main Switch Included – Switch-disconnector pre-installed to handle large incoming supplies
- Heavy-Duty Galvanised Steel Enclosure – White RAL 9003 finish with reversible plain door
- Surface Mount Design – Versatile and installer-friendly for wall-mount applications
- Durable and Safe – IP30 ingress protection and IK09 impact rating

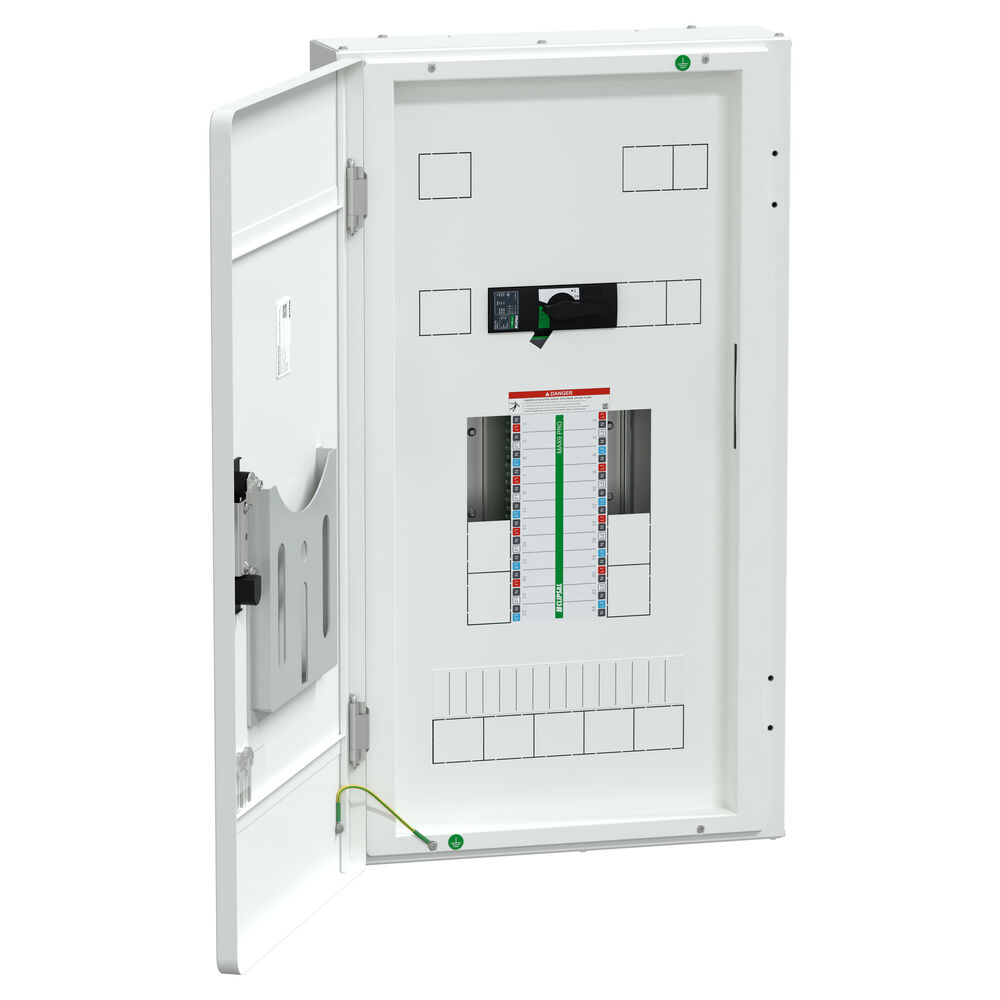

- Complete Kit Supplied – Includes DIN rail, chassis, gland plates, neutral and earth bars, schedule card, pole fillers, and keys
- High Short-Time Withstand Current – Rated to 25 kA (100ms) for chassis, 15 kA for device withstand
Specifications
- Model: MX9DB24S250
- Number of Ways: 24
- Main Switch: 250A switch-disconnector (included)
- Enclosure Type: Surface-mounted
- Material: Galvanised sheet steel
- Voltage Rating (Ue): 240/415 V AC, 50Hz
- Insulation Voltage (Ui): 500 V
- Impulse Withstand Voltage (Uimp): 4 kV
- Short-Time Withstand Current (Icw):
- Chassis: 25 kA for 100 ms
- General: 15 kA for 100 ms
- IP Rating: IP30
- IK Rating: IK09

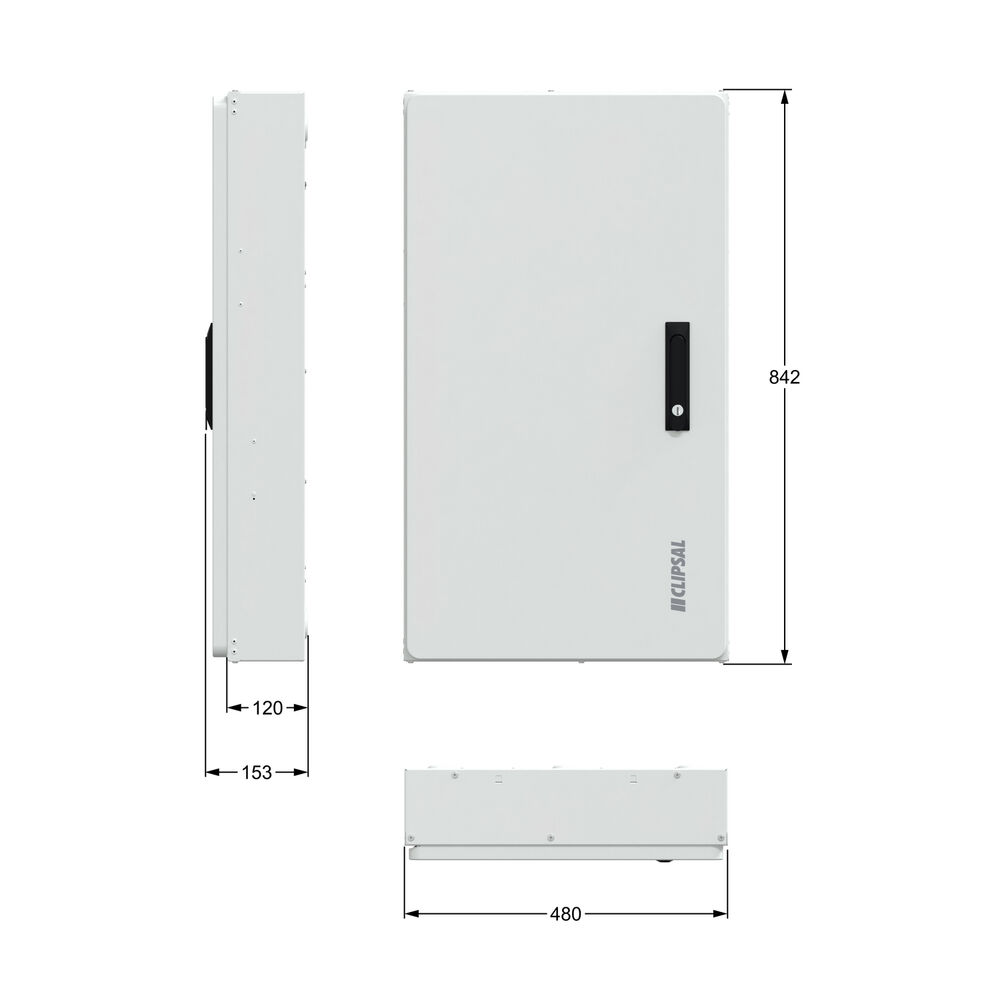

- Dimensions: 842 mm (H) × 480 mm (W) × 153 mm (D)
- Standards Compliance: AS/NZS 61439.3, AS/NZS 3000
- Warranty: 18 months
Applications
- Medium to large homes requiring multiple circuit protection
- Commercial tenancies with multi-circuit distribution needs
- Industrial light-duty switchboards for offices, schools, or warehouses
- Electrical upgrades or new builds needing a robust 250A-rated DB
Designed for performance, flexibility, and compliance, the Clipsal MAX9 Pro MX9DB24S250 24-Way Distribution Board is a reliable switchboard solution for demanding Australian installations. With its 250A capacity, premium build, and full accessories kit, it's ready for fast, efficient deployment across residential and commercial projects.
Q. Is the main switch included with this board?
A. Yes, a 250A switch-disconnector is factory fitted as the main incomer.
Q. Can this distribution board house RCBOs or AFDDs?
A. Yes, the MAX9 Pro board accepts MCBs, RCBOs, and arc fault detection devices for outgoer circuits.
Q. Is it suitable for outdoor use?
A. No, this model is rated IP30 and is intended for indoor, protected environments.
Q. What is the enclosure made from?
A. The housing is manufactured from galvanised sheet steel with a durable white powdercoat finish.
Q. Can the door be reversed for left or right opening?
A. Yes, the plain door is reversible, offering flexibility during installation.
All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.
Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.
Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.
| Range | Clipsal MAX9 PRO |
| PRODUCT INFO | |
| SKU | CLMX9DB24S250 |
| Model # | MX9DB24S250 |
| Brand | Clipsal |
| SHIPPING INFO | |
| Shipping Weight | 20.0000kg |
| Shipping Width | 0.530m |
| Shipping Height | 0.170m |
| Shipping Length | 0.900m |
