Clipsal MAX9 Pro 48 Way Distribution Board 250A Main Switch
SKU: CLMX9DB48S250
Special Order
$1,128.60
$1,026.00 ex GST
Special Order
This is a special order item. Please allow extra time for delivery.
Buy Now, Pay Later with
Did You Also Need…?
55% OFF
RRP $295.00
Clipsal MAX9 Pro 24 Way Distribution Board 160A Main Switch
Model #
MX9DB24S160
$847.00 $770.00 ex GST
Next Day Typical Dispatch
On All Orders
Australian Company
Owned & Operated
25+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind

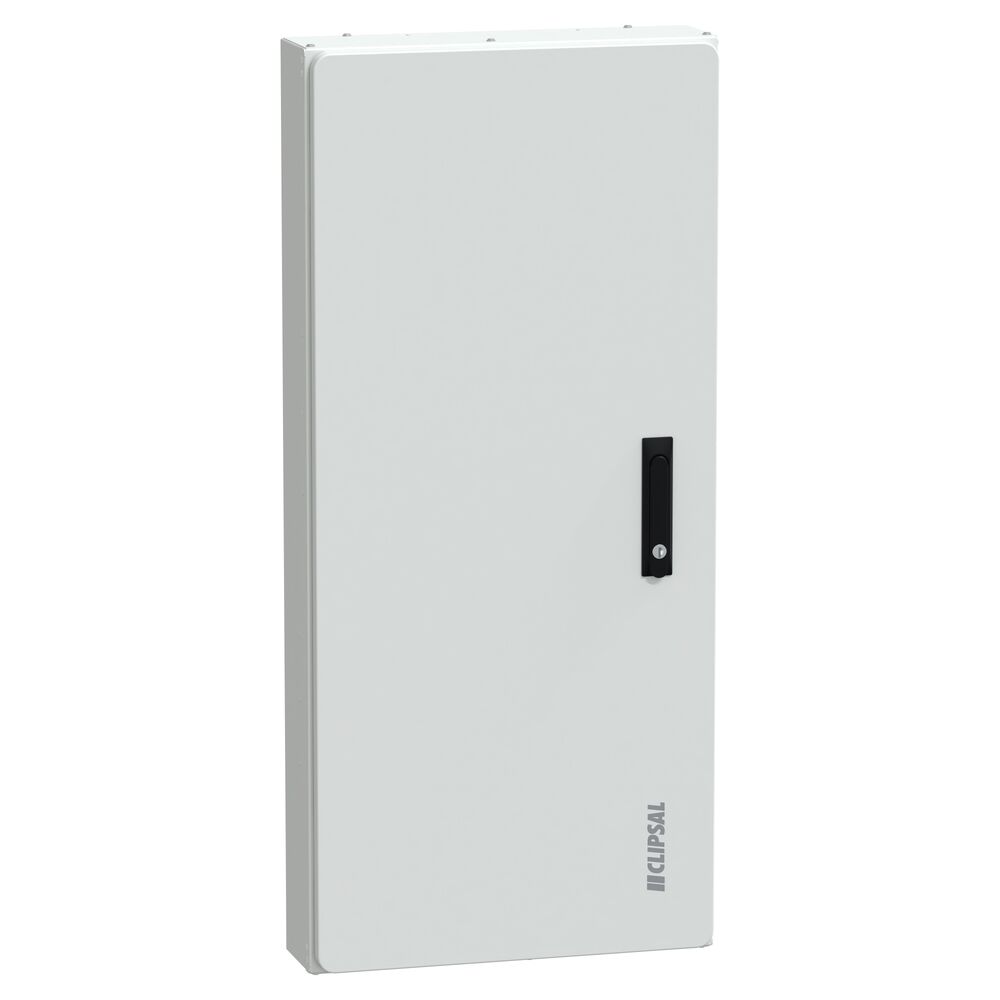

The Clipsal MAX9 Pro MX9DB48S250 is a high-capacity, surface-mount 48-way distribution board designed for complex residential, commercial, or light industrial electrical systems. It comes complete with a 250A main switch-disconnector, pre-installed for simplified site setup. With an IP30-rated galvanised steel enclosure, ample DIN space, and compliance with AS/NZS 61439.3, this board delivers dependable circuit protection and load management in demanding installations.
Key Features
- Large 48 Way Capacity – Ideal for installations requiring extensive circuit protection
- 250A Main Switch Included – Factory-fitted switch-disconnector to streamline commissioning
- Strong Galvanised Steel Enclosure – Finished in clean white RAL 9003, suitable for residential or commercial interiors
- Surface-Mounted – Versatile and quick to install with accessible cable entry options

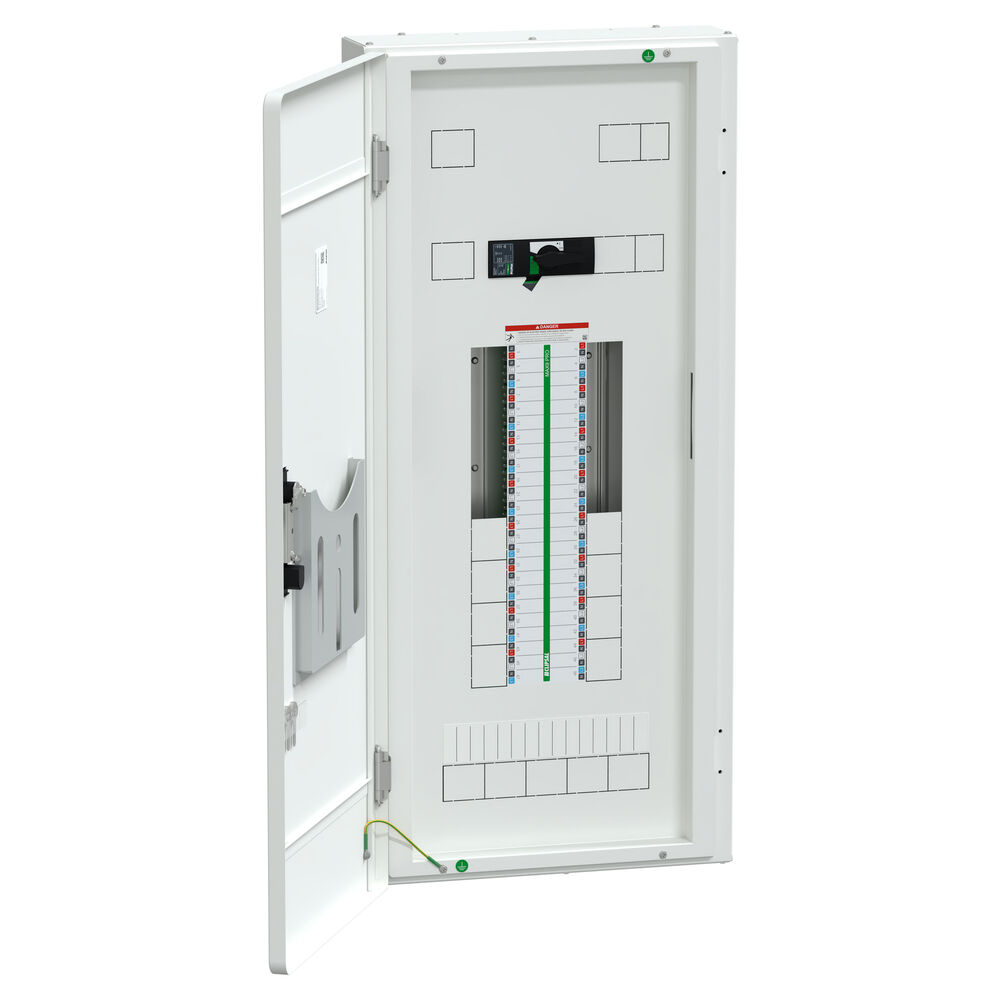

- Installer-Ready Kit – Supplied with DIN rails, gland plates, neutral/earth bars, pole fillers, schedule card, and key
- Compliant & Durable – Rated IP30 and IK09, suitable for protected indoor use
- High Withstand Ratings – 25kA (100ms) withstand for chassis, meeting tough safety demands
Specifications
- Model: MX9DB48S250
- Number of Ways: 48
- Main Switch: 250A switch-disconnector (included)
- Mounting Type: Surface
- Enclosure Material: Galvanised sheet steel
- Voltage (Ue): 240/415V AC, 50Hz
- Insulation Voltage (Ui): 500V
- Impulse Withstand Voltage (Uimp): 4kV
- Short-Time Withstand Current:
- Chassis: 25kA (100ms)
- Assembly: 15kA (100ms)
- IP Rating: IP30
- IK Rating: IK09

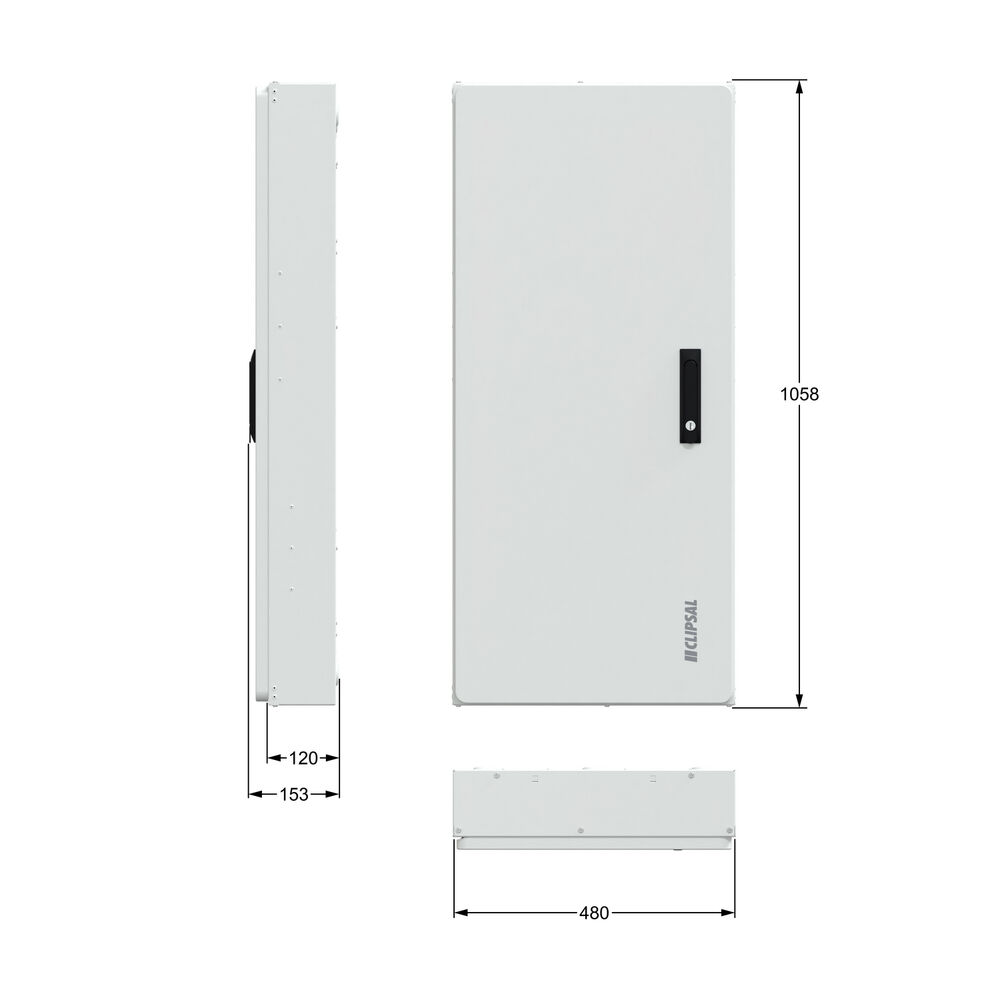

- Dimensions (H × W × D): Approx. 1058mm × 480mm × 153mm
- Standards Compliance: AS/NZS 61439.3, AS/NZS 3000
- Warranty: 18 Months
Applications
- Large residential homes with high circuit count
- Multi-tenancy commercial fit-outs
- Schools, data rooms, retail, and light industrial switchboards
- Projects requiring clear segregation and scalable expansion
Built for high-demand applications, the Clipsal MAX9 Pro MX9DB48S250 offers premium protection and capacity with a reliable 250A main switch, 48 module spaces, and robust construction—making it an ideal choice for large installations where safety, scalability, and professional finish are essential.
Q. Is the main switch included with this board?
A. Yes, a 250A switch-disconnector is factory fitted as the main incomer.
Q. Can this distribution board house RCBOs or AFDDs?
A. Yes, the MAX9 Pro board accepts MCBs, RCBOs, and arc fault detection devices for outgoer circuits.
Q. Is it suitable for outdoor use?
A. No, this model is rated IP30 and is intended for indoor, protected environments.
Q. What is the enclosure made from?
A. The housing is manufactured from galvanised sheet steel with a durable white powdercoat finish.
Q. Can the door be reversed for left or right opening?
A. Yes, the plain door is reversible, offering flexibility during installation.
All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.
Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.
Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.
| Range | Clipsal MAX9 PRO |
| PRODUCT INFO | |
| SKU | CLMX9DB48S250 |
| Model # | MX9DB48S250 |
| Brand | Clipsal |
| SHIPPING INFO | |
| Shipping Weight | 28.0000kg |
| Shipping Width | 0.530m |
| Shipping Height | 0.170m |
| Shipping Length | 1.100m |
