The Clipsal MAX9 Pro MX9DB72S160 is a heavy-duty, surface-mount 72-way distribution board designed to meet the needs of large-scale electrical installations. Ideal for high-demand residential, commercial, and light industrial applications, it includes a pre-fitted 160A main switch-disconnector, offering robust and centralised load control.
With an IP30-rated steel enclosure, 72 module positions, and full compliance with AS/NZS 61439.3, the MX9DB72S160 is engineered for performance, safety, and efficiency in complex electrical systems.
Key Features
- Massive 72 Way Capacity – Accommodates high circuit volumes in a single, organised panel
- Pre-installed 160A Main Switch – Streamlines installation and ensures reliable power isolation

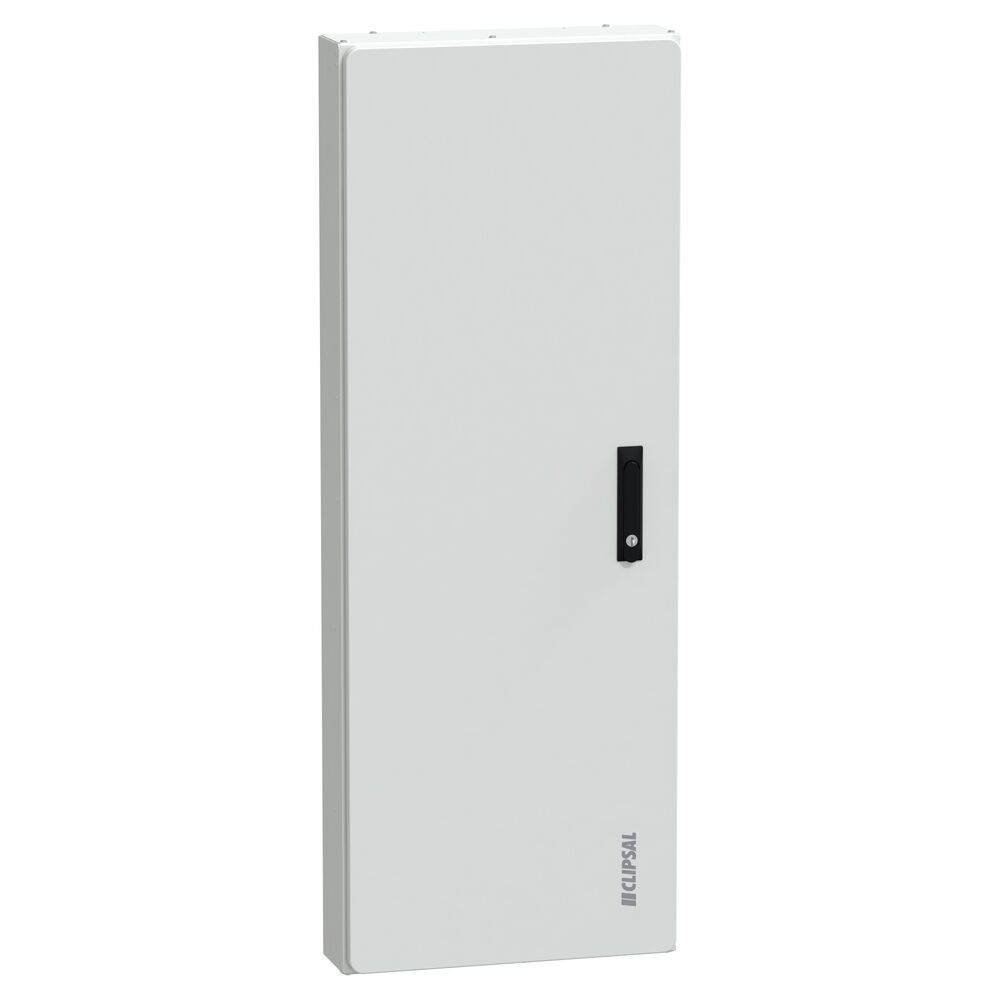

- Durable Galvanised Steel Enclosure – Finished in white (RAL 9003) with a reversible plain door

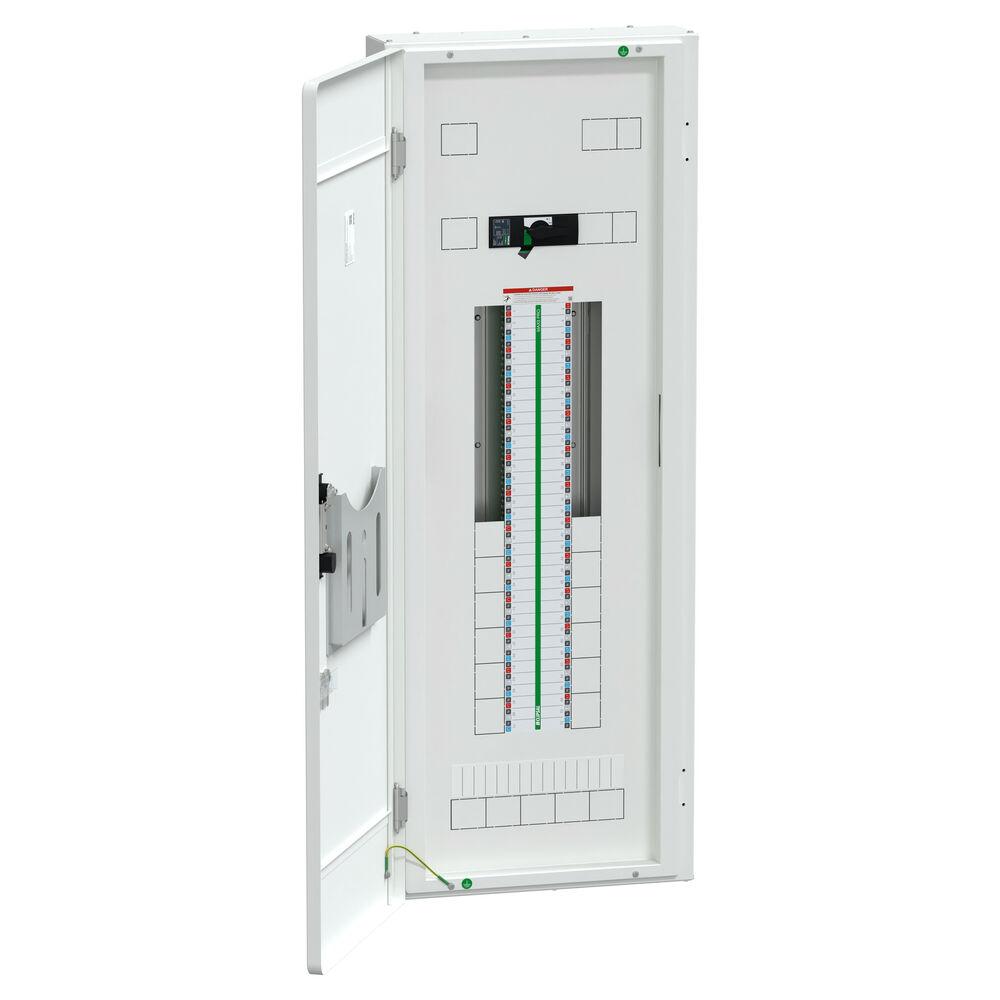

- Installer-Ready – Supplied with DIN rails, gland plates, neutral/earth bars, pole fillers, and door key
- Indoor-Rated Protection – IP30 and IK09 ratings ensure safety in enclosed environments
- High Withstand Capacity – Chassis rated to 25kA (100ms) to meet commercial-grade standards
- Comprehensive Cable Management – Generous internal space and pre-cut gland plate positions
Specifications
- Model: MX9DB72S160
- Number of Ways: 72
- Main Switch: 160A switch-disconnector (included)
- Mounting: Surface mount
- Material: Galvanised sheet steel
- Voltage (Ue): 240/415V AC, 50Hz
- Insulation Voltage (Ui): 500V
- Impulse Withstand Voltage (Uimp): 4kV
- Short-Time Withstand Current (Icw):
- Chassis: 25kA (100ms)
- Assembly: 15kA (100ms)
- IP Rating: IP30
- IK Rating: IK09

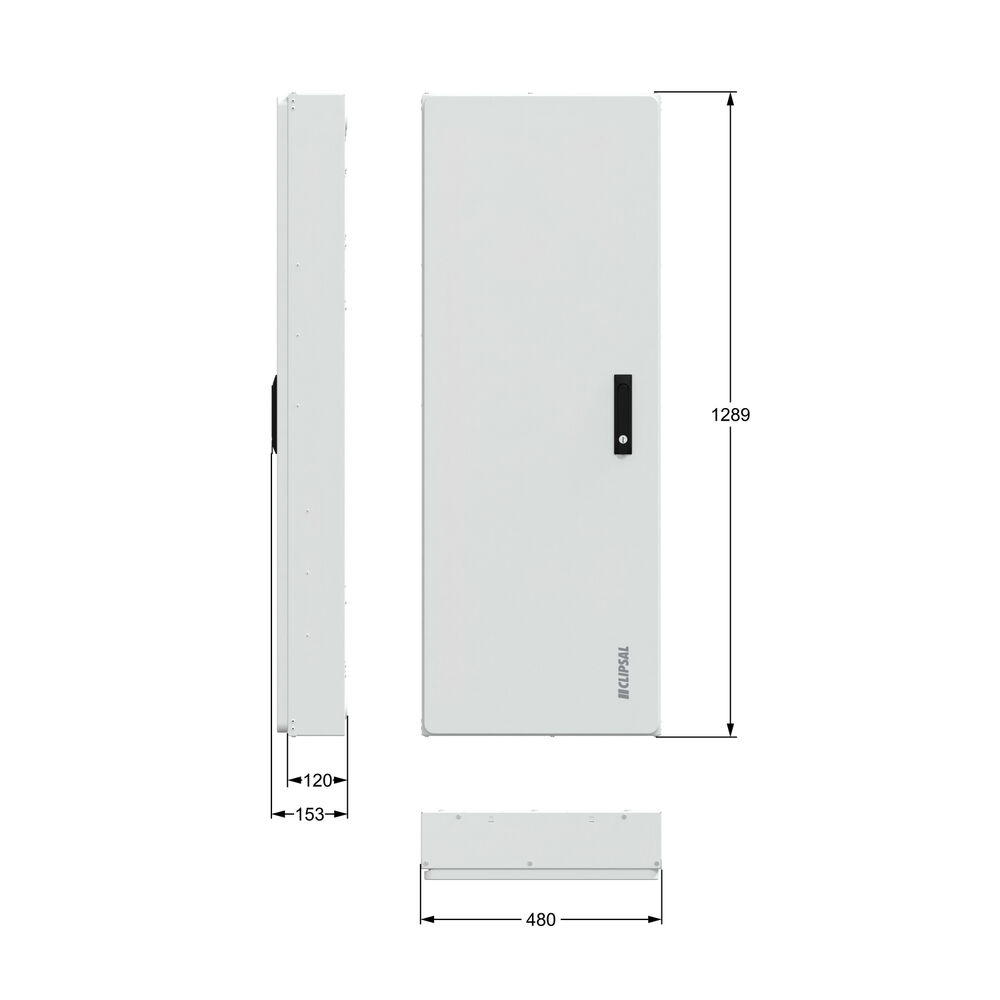

- Dimensions (H × W × D): Approx. 1289mm × 480mm × 153mm
- Standards Compliance: AS/NZS 61439.3, AS/NZS 3000
- Warranty: 18 Months
Applications
- Large commercial switchboards with extensive circuit requirements
- Residential apartment blocks and townhouses with centralised supply boards
- Warehouses, showrooms, and schools requiring future-proof electrical capacity
- Upgrades and new builds needing a high-density, high-capacity distribution panel
Engineered to meet the demands of large and growing installations, the Clipsal MAX9 Pro MX9DB72S160 provides exceptional flexibility, safety, and convenience. With 72 modules, a robust steel enclosure, and a built-in 160A main switch, it’s the ultimate choice for installers needing high-capacity distribution in a reliable, standards-compliant board.
Q. Is the main switch included with this board?
A. Yes, a 160A switch-disconnector is factory fitted as the main incomer.
Q. Can this distribution board house RCBOs or AFDDs?
A. Yes, the MAX9 Pro board accepts MCBs, RCBOs, and arc fault detection devices for outgoer circuits.
Q. Is it suitable for outdoor use?
A. No, this model is rated IP30 and is intended for indoor, protected environments.
Q. What is the enclosure made from?
A. The housing is manufactured from galvanised sheet steel with a durable white powdercoat finish.
Q. Can the door be reversed for left or right opening?
A. Yes, the plain door is reversible, offering flexibility during installation.
