Clipsal MAX9 Pro 72 Way Distribution Board 250A Main Switch
SKU: CLMX9DB72S250
Special Order
$1,254.00
$1,140.00 ex GST
Special Order
This is a special order item. Please allow extra time for delivery.
Buy Now, Pay Later with
Did You Also Need…?
55% OFF
RRP $295.00
Clipsal MAX9 Pro 24 Way Distribution Board 160A Main Switch
Model #
MX9DB24S160
$847.00 $770.00 ex GST
Next Day Typical Dispatch
On All Orders
Australian Company
Owned & Operated
25+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind

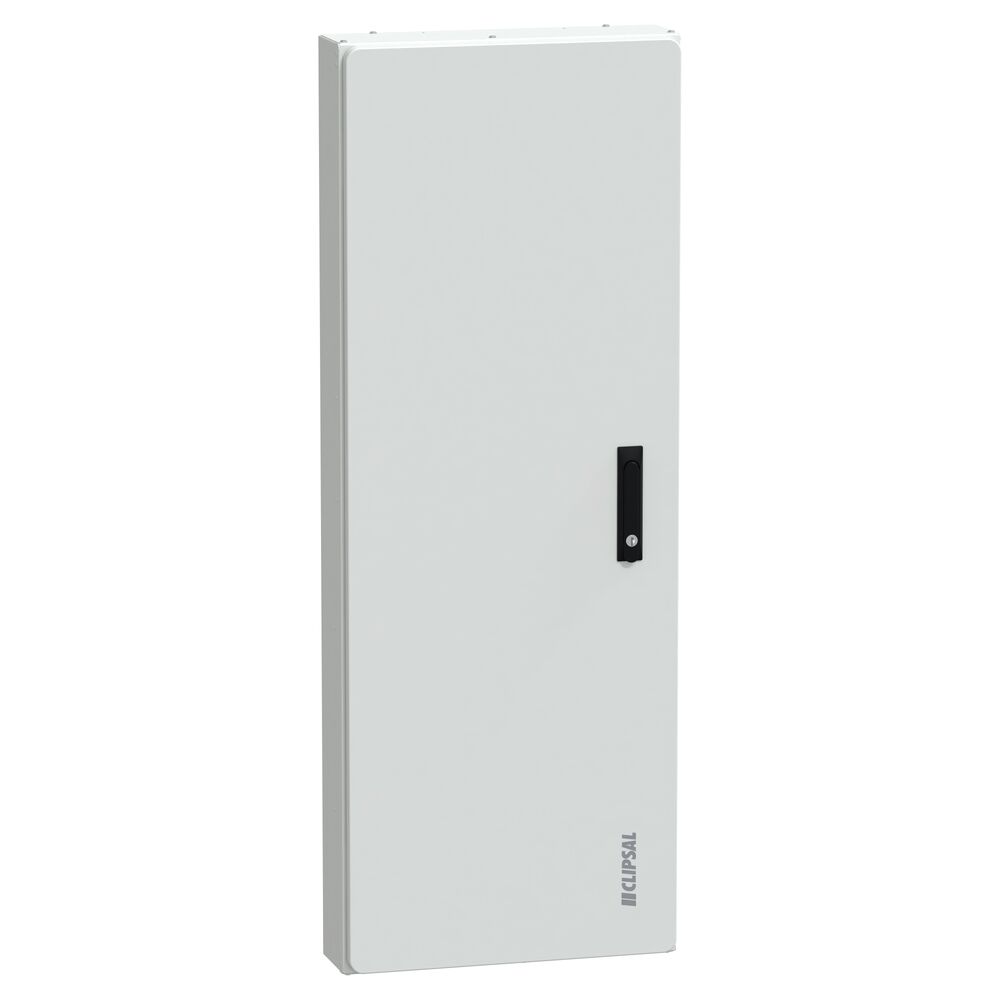

The Clipsal MAX9 Pro MX9DB72S250 is a heavy-duty, surface-mount 72-way distribution board designed to meet the needs of large-scale electrical installations. Ideal for high-demand residential, commercial, and light industrial applications, it includes a pre-fitted 250A main switch-disconnector, offering robust and centralised load control.
With an IP30-rated steel enclosure, 72 module positions, and full compliance with AS/NZS 61439.3, the MX9DB72S160 is engineered for performance, safety, and efficiency in complex electrical systems.
Key Features
- Massive 72 Way Capacity – Accommodates high circuit volumes in a single, organised panel
- Pre-installed 250A Main Switch – Streamlines installation and ensures reliable power isolation
- Durable Galvanised Steel Enclosure – Finished in white (RAL 9003) with a reversible plain door

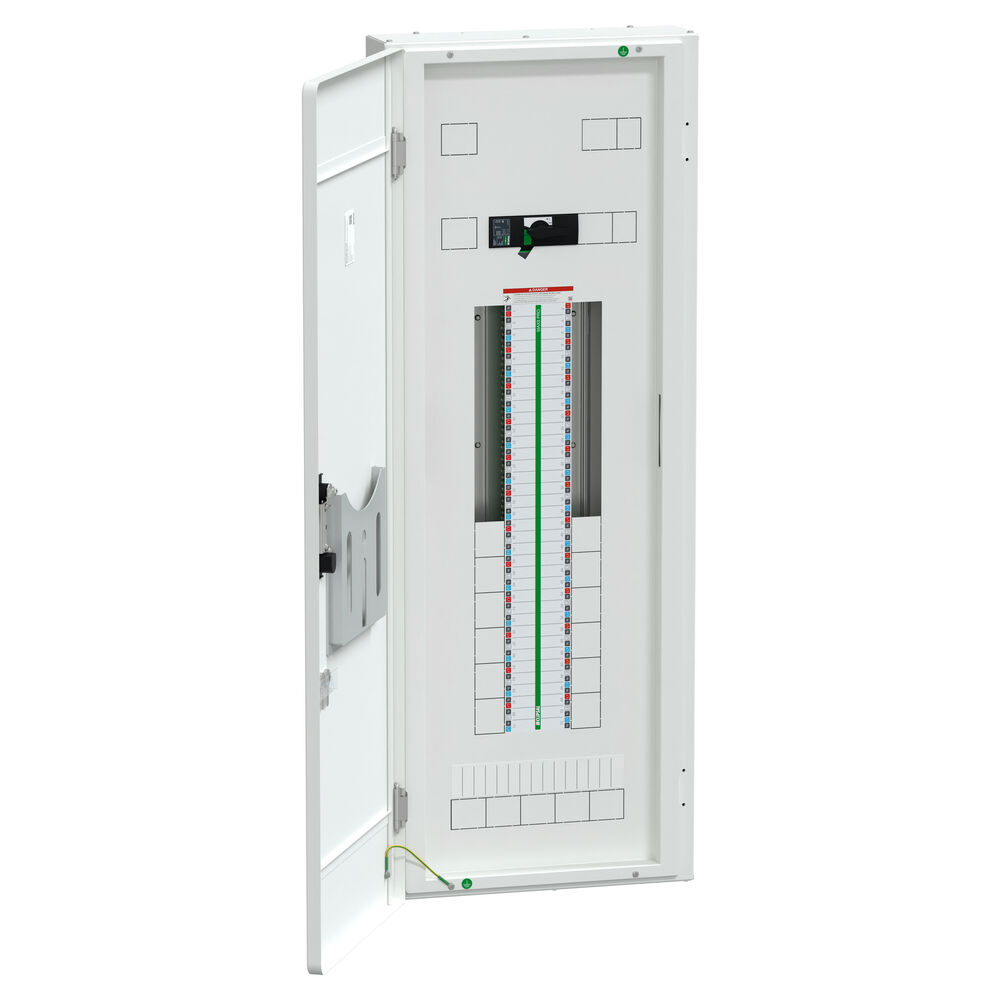

- Installer-Ready – Supplied with DIN rails, gland plates, neutral/earth bars, pole fillers, and door key
- Indoor-Rated Protection – IP30 and IK09 ratings ensure safety in enclosed environments
- High Withstand Capacity – Chassis rated to 25kA (100ms) to meet commercial-grade standards
- Comprehensive Cable Management – Generous internal space and pre-cut gland plate positions
Specifications
- Model: MX9DB72S250
- Number of Ways: 72
- Main Switch: 250A switch-disconnector (included)
- Mounting: Surface mount
- Material: Galvanised sheet steel
- Voltage (Ue): 240/415V AC, 50Hz
- Insulation Voltage (Ui): 500V
- Impulse Withstand Voltage (Uimp): 4kV
- Short-Time Withstand Current (Icw):
- Chassis: 25kA (100ms)
- Assembly: 15kA (100ms)
- IP Rating: IP30
- IK Rating: IK09
- Dimensions (H × W × D): Approx. 1289mm × 480mm × 153mm
- Standards Compliance: AS/NZS 61439.3, AS/NZS 3000
- Warranty: 18 Months
Applications
- Large commercial switchboards with extensive circuit requirements
- Residential apartment blocks and townhouses with centralised supply boards
- Warehouses, showrooms, and schools requiring future-proof electrical capacity
- Upgrades and new builds needing a high-density, high-capacity distribution panel
Engineered to meet the demands of large and growing installations, the Clipsal MAX9 Pro MX9DB72S250 provides exceptional flexibility, safety, and convenience. With 72 modules, a robust steel enclosure, and a built-in 250A main switch, it’s the ultimate choice for installers needing high-capacity distribution in a reliable, standards-compliant board.
Q. Is the main switch included with this board?
A. Yes, a 250A switch-disconnector is factory fitted as the main incomer.
Q. Can this distribution board house RCBOs or AFDDs?
A. Yes, the MAX9 Pro board accepts MCBs, RCBOs, and arc fault detection devices for outgoer circuits.
Q. Is it suitable for outdoor use?
A. No, this model is rated IP30 and is intended for indoor, protected environments.
Q. What is the enclosure made from?
A. The housing is manufactured from galvanised sheet steel with a durable white powdercoat finish.
Q. Can the door be reversed for left or right opening?
A. Yes, the plain door is reversible, offering flexibility during installation.
All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.
Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.
Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.
Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.
| Range | Clipsal MAX9 PRO |
| PRODUCT INFO | |
| SKU | CLMX9DB72S250 |
| Model # | MX9DB72S250 |
| Barcode # | 3606487401667 |
| Brand | Clipsal |
| SHIPPING INFO | |
| Shipping Weight | 36.0000kg |
| Shipping Width | 0.530m |
| Shipping Height | 0.170m |
| Shipping Length | 1.345m |
