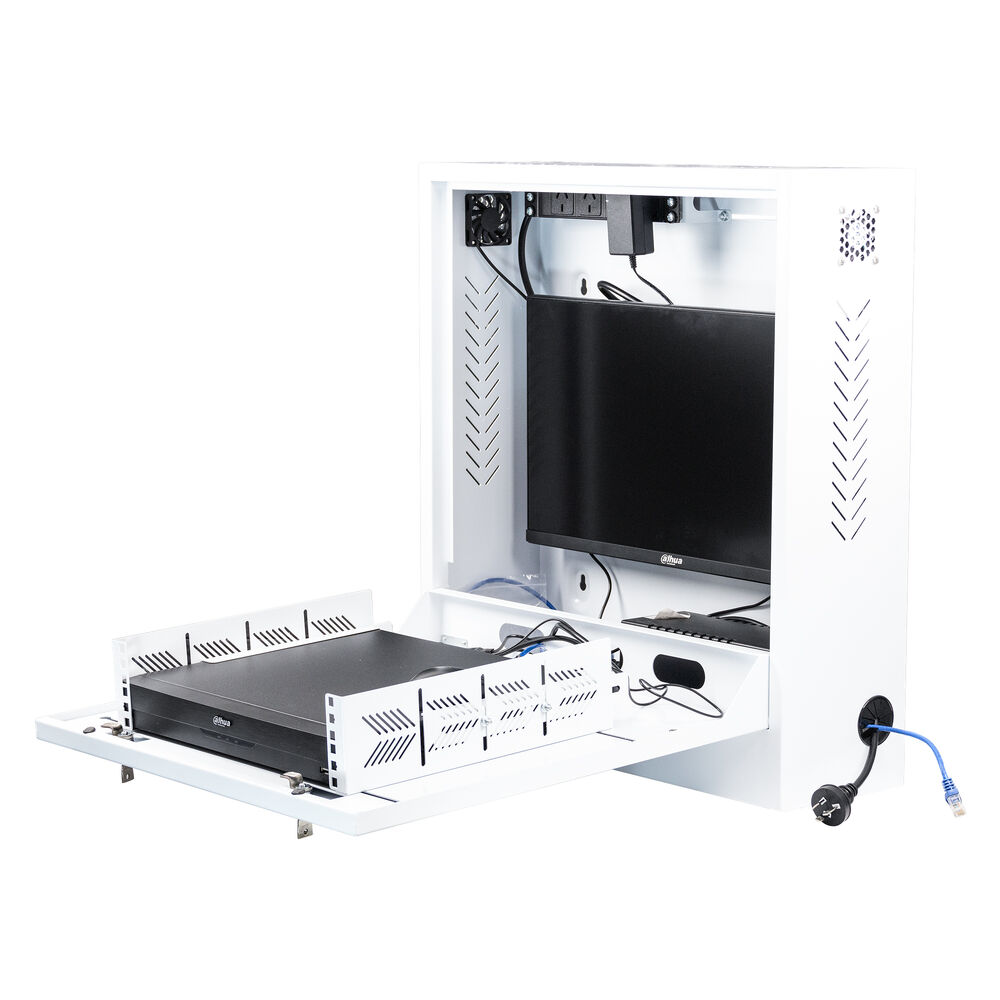

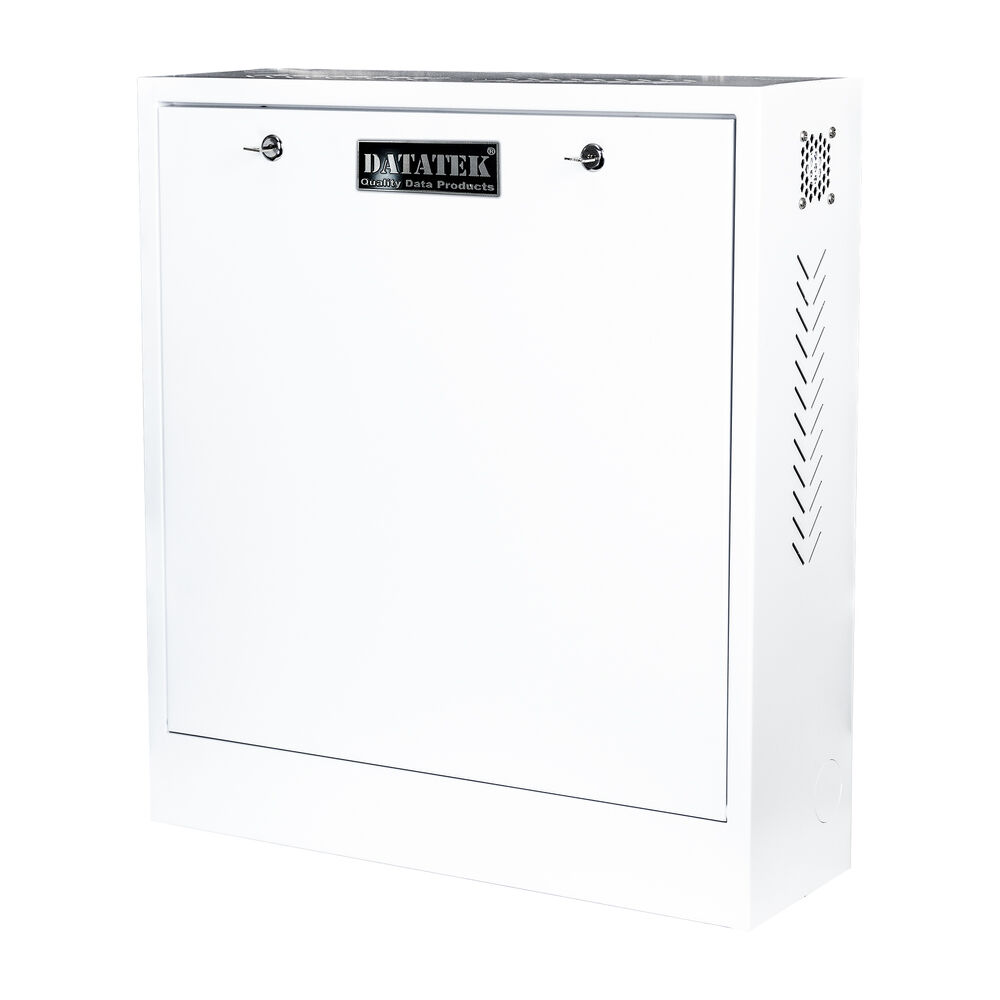

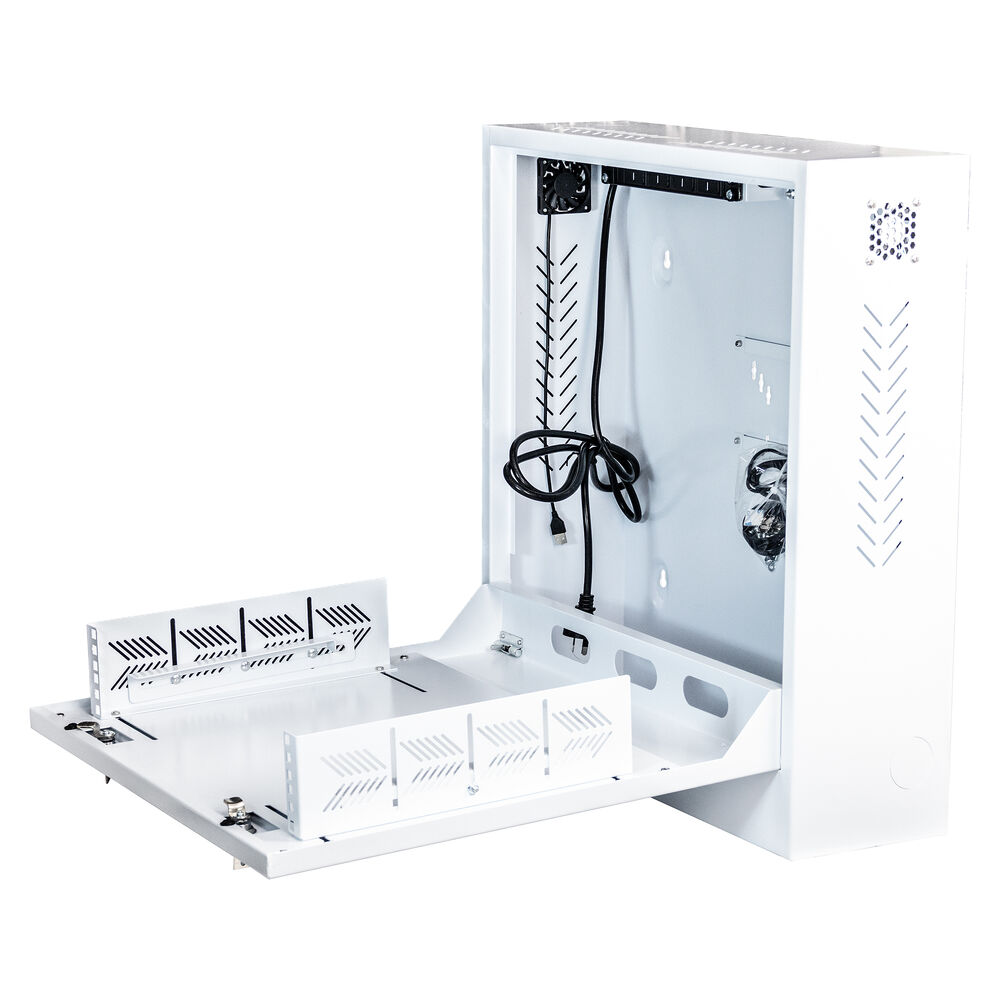

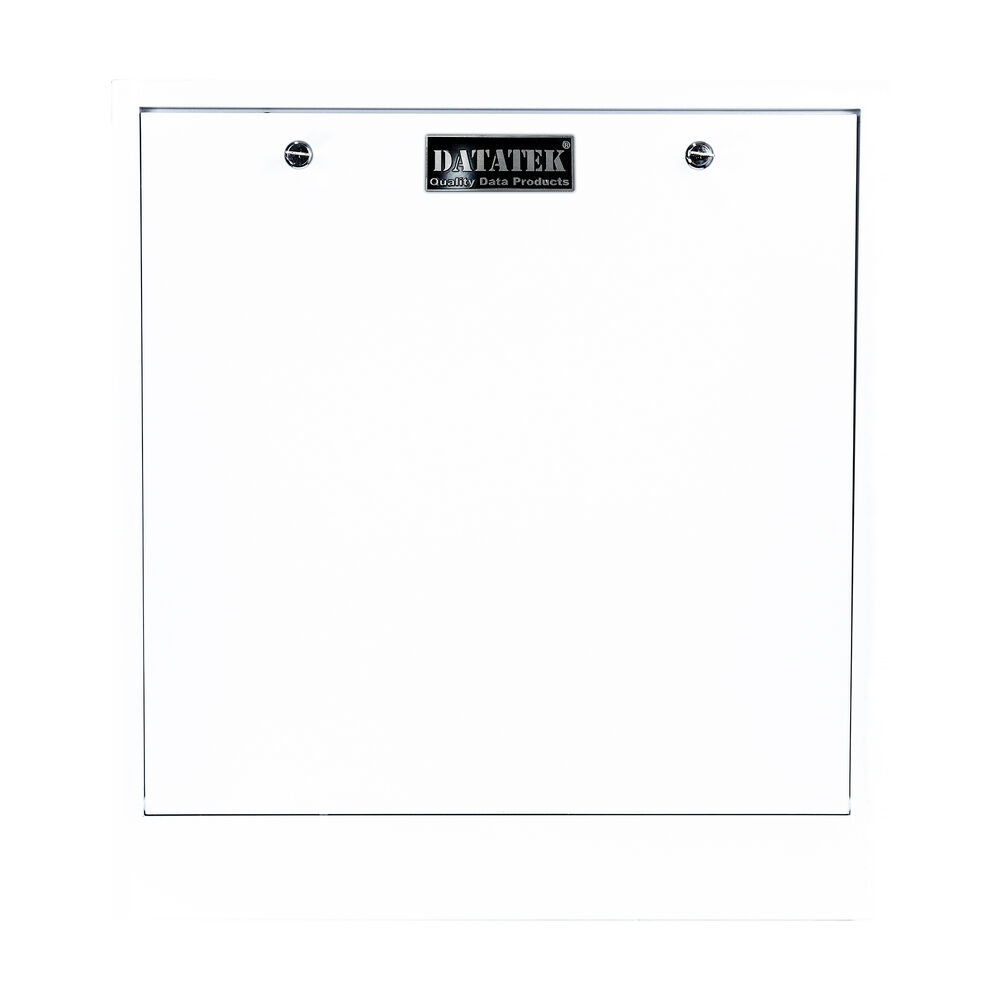

The Datatek 24SECCAB CCTV System Security Cabinet is a purpose-built, wall-mount security cabinet designed to house up to 2U of surveillance equipment and a monitor up to 24”, making it the ideal solution for tidy, professional, and secure CCTV system installations. With built-in cooling, integrated power, and tamper-resistant features, this cabinet is perfect for both commercial and residential environments requiring robust and organised video surveillance infrastructure.

Key Features:

• Secure and Tamper-Resistant: Dual cabinet locks and protective grommeted cable knockouts provide maximum security.
• Optimised for CCTV: Supports up to a 24” monitor (VESA 50/75/100) and 2U rack-mounted gear like NVRs and DVRs.
• Active Cooling: Equipped with 2x built-in USB-powered fans and extra venting for improved airflow and equipment longevity.

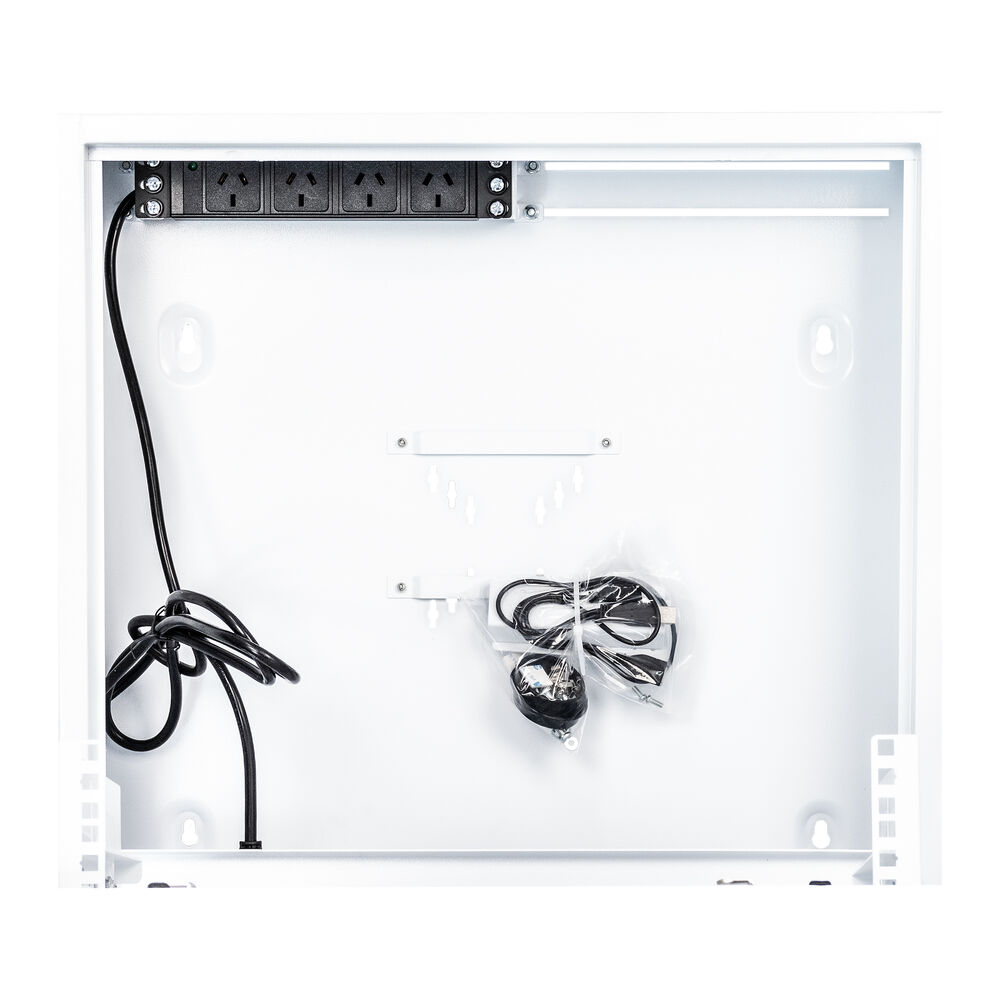

• Integrated 5-Outlet PDU: Includes a 5-outlet power board but can accommodate a standard 19” rack PDU for expanded power options.
• Durable Build: Constructed from cold rolled steel with a white Hammertone finish that resists marks, scratches, and fingerprints.
• Efficient Cable Management: Ø50mm cable knockouts with grommets reduce cable strain and deter tampering.

Specifications:

• Model: 24SECCAB
• Construction: Cold rolled steel with white Hammertone finish
• Equipment Capacity: Up to 2U (240–480mm width, 465mm depth)
• Monitor Capacity: Up to 24” (downward-facing HDMI and power input required)
• VESA Mounting Support: 50/75/100mm
• Weight Capacity: Up to 30kg
• Cooling: 2x USB-powered cooling fans
• Power Distribution: 5-outlet PDU included (compatible with 19” rack PDUs)
• External Dimensions: 580mm (W) x 635mm (H) x 185mm (D)

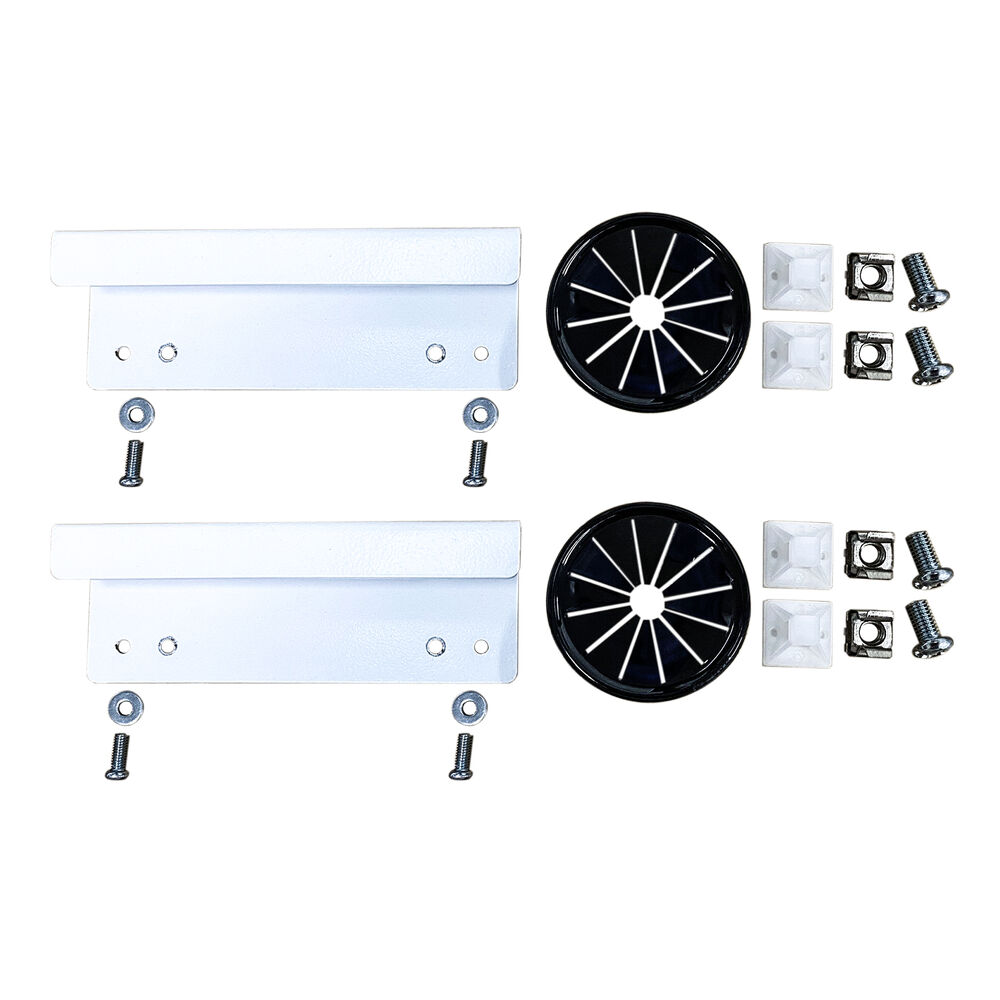

What’s Included:

• 5-Outlet PDU (24SECPDU)
• 2x Cooling Fans (24SECFAN)
• Knockout Grommets (24SECGRO)
• Monitor Mounting Brackets
• Wall Mounting Template
• Cable Mounts
• Captive Nuts & Screws
• 2x Cabinet Keys

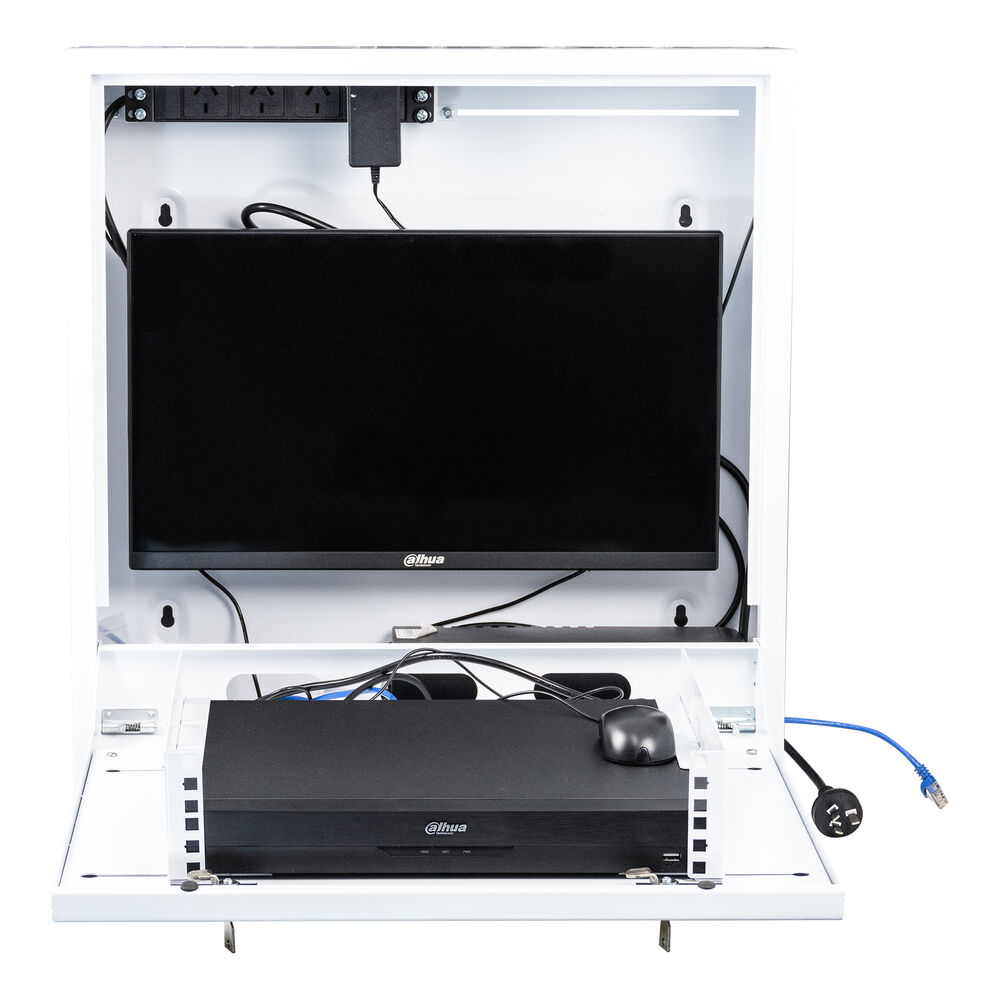

  ** Monitor & NVR Not Included. Used for Illustration Purposes Only **

Applications:

• Commercial CCTV Installations: Securely houses NVRs, DVRs, and display monitors for retail, office, or industrial surveillance.
• Residential Security Systems: Keeps gear neatly enclosed and safe in homes or apartment blocks.
• Public Spaces: Perfect for schools, public venues, or councils managing visible and accessible surveillance installations.
• IT/AV Rooms: Ensures a clean and functional storage setup in equipment rooms with limited space.

The Datatek 24SECCAB delivers a secure, clean, and efficient housing solution for CCTV gear – perfect for professional installations that demand both protection and presentation.
