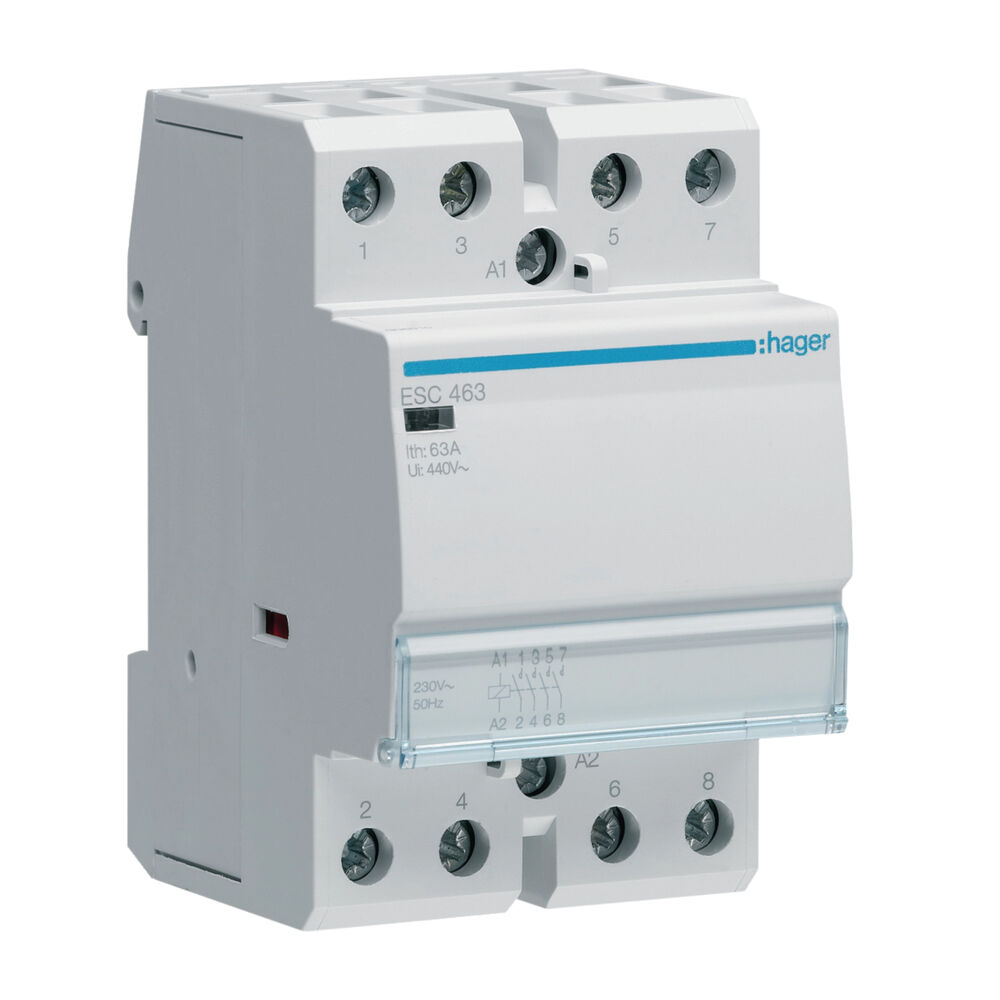

The Hager ESC463 is a robust 4-pole, 63A modular contactor engineered for reliable remote switching of electrical circuits. With its 230V AC coil and four normally open (4NO) contacts, this DIN rail-mounted device is ideal for managing lighting, heating, ventilation, and motor loads in residential, commercial, and industrial settings.

Key Features:

  • High Switching Capacity: Rated for 63A (AC1), suitable for heavy-duty applications.
  • 4NO Contact Configuration: Four normally open contacts for versatile control.
  • 230V AC Coil: Standard control voltage compatible with common systems.
  • Compact Design: 3-module width (54 mm) for efficient DIN rail installation.
  • High Durability: Mechanical endurance of 100,000 operations; electrical endurance of 30,000 cycles.
  • Low Power Consumption: Operating consumption of 5.7 VA.
  • Impulse Withstand Voltage: Rated at 4 kV for enhanced safety.
  • Operating Temperature Range: -10°C to +50°C.
  • Compliance: RoHS and REACH compliant.

Specifications:

  • Model Number: ESC463
  • Rated Operational Voltage (Ue): 400V AC
  • Rated Insulation Voltage (Ui): 440V
  • Rated Impulse Withstand Voltage (Uimp): 4 kV
  • Inrush Power Absorbed: 62.5 VA
  • Total Power Loss Under IN: 21.5 W
  • Dimensions: Height: 85 mm; Width: 54 mm; Depth: 60 mm
  • Mounting: DIN rail (3-module width)
  • Conductor Size: Flexible: 1.5–16 mm²; Rigid: 1.5–25 mm²
  • Contact Rating (AC7A): 11.6 kW at 230V, 35 kW at 400V
  • Contact Rating (AC7B): 3.3 kW at 230V, 10 kW at 400V

Applications:

  • Lighting Control: Automate indoor and outdoor lighting systems.
  • Heating Systems: Manage electric heaters or underfloor heating.
  • Ventilation: Control fans and air handling units.
  • Motor Loads: Operate pumps, compressors, and other motor-driven equipment.
  • Home Automation: Integrate into smart home systems for enhanced control.

The Hager ESC463 offers a reliable and efficient solution for controlling electrical circuits in various applications. Its robust performance, compact design, and compatibility with standard DIN rail systems make it a valuable component for both new installations and upgrades.

Q: Can the ESC463 be used for inductive loads like motors?
A: Yes, the ESC463 is suitable for inductive loads. However, for high inrush currents, ensure the contactor's specifications align with the application's requirements.

Q: Is there a manual override function?
A: No, the ESC463 does not feature a manual override switch.

Q: What is the difference between AC1 and AC7 categories?
A: AC1 refers to non-inductive or slightly inductive loads, while AC7 pertains to motor loads and other highly inductive applications. The ESC463 is rated for 63A in AC1 and 32A in AC7B categories.

Q: Is the ESC463 compatible with other Hager accessories?
A: Yes, it can be integrated with Hager's range of modular devices and accessories for comprehensive electrical solutions.
