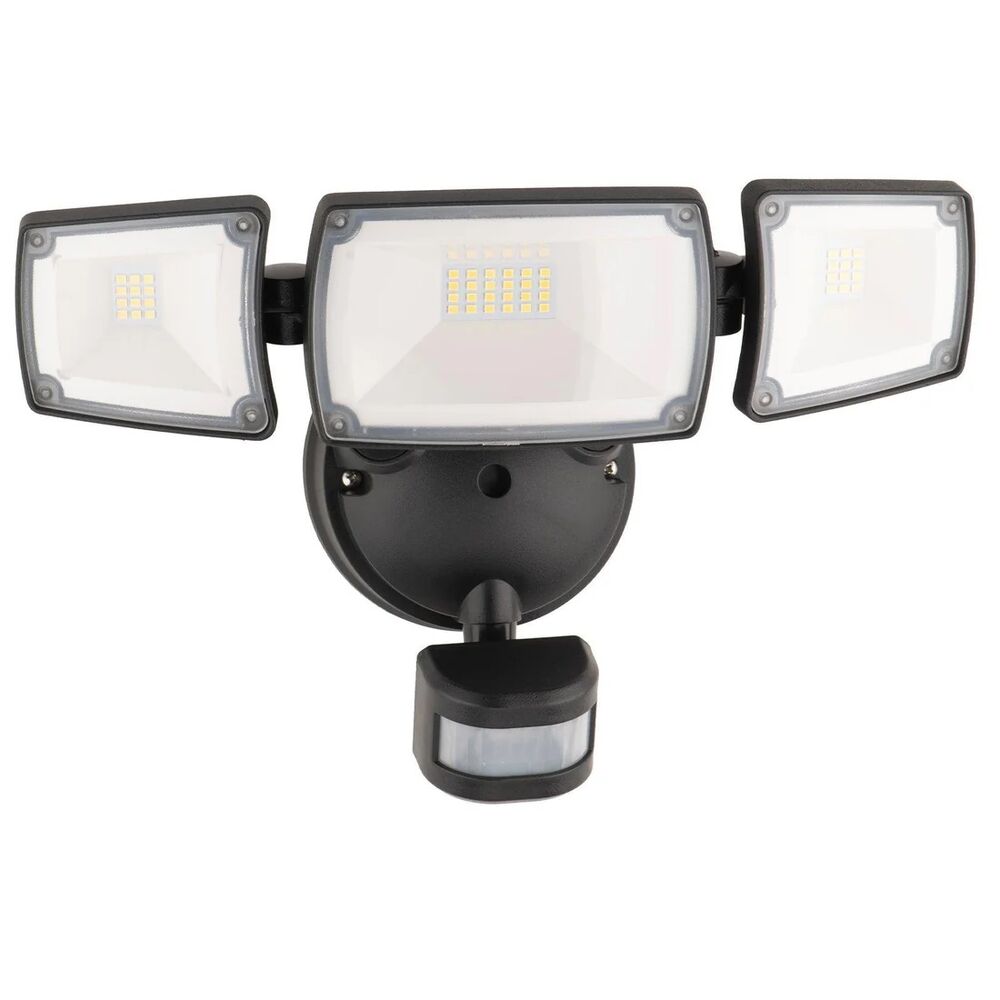

The Mercator Onyx Triple Head LED Security Floodlight is a robust and energy-efficient lighting solution designed to enhance the security of your property. With its adjustable triple-head design and integrated PIR sensor, it provides comprehensive illumination and motion detection for outdoor areas.

Key Features:

  • High Lumen Output: Delivers a total of 4100 lumens with a 5700K daylight color temperature, ensuring bright and clear illumination.
  • Adjustable Triple Heads: Each head is hand-adjustable, allowing you to direct light precisely where it's needed.
  • Integrated PIR Sensor: Features a 120° detection angle with a range of up to 10 meters, and an adjustable timer from 10 seconds to 7 minutes.
  • Manual Override Function: Allows the light to remain on continuously when needed, bypassing the sensor temporarily.
  • Durable Construction: Built with a high-impact UV-stabilized plastic base and aluminum diecast lamp heads for superior heat dissipation.
  • Weather Resistant: IP54 rating ensures protection against dust and water splashes, suitable for outdoor installations.
  • Quick Connect System: Facilitates fast and hassle-free installation.

Specifications:

  • Model: MXD6923BLK-SEN
  • Wattage: 45W (3 x 15W)
  • Lumens: 4100lm
  • Color Temperature: 5700K (Daylight)
  • CRI: >80
  • Beam Angle: 100°
  • Detection Angle: 120°
  • Detection Range: Up to 10 meters
  • Adjustable Timer: 10 seconds to 7 minutes
  • IP Rating: IP54
  • Voltage: 240V AC
  • Dimmable: No

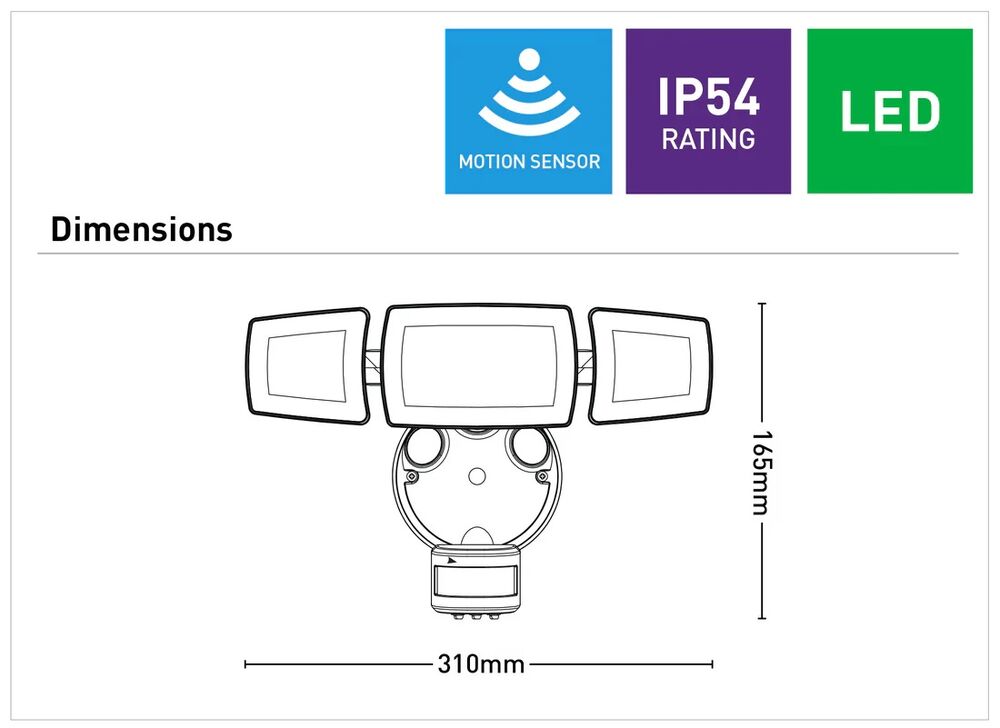

  • Dimensions: Length 310mm x Height 165mm
  • Warranty: 3 Years

Applications:

  • Residential Security: Ideal for illuminating driveways, backyards, and entryways.
  • Commercial Properties: Enhances security around warehouses, parking lots, and building perimeters.
  • Public Spaces: Suitable for parks, walkways, and community centers requiring reliable lighting.

Enhance the safety and security of your outdoor spaces with the Mercator Onyx Triple Head LED Security Floodlight. Its powerful illumination, adjustable design, and reliable motion detection make it an excellent choice for various applications.

Q: Can the sensor be adjusted to prevent activation by small animals?
A: Yes, the sensitivity of the PIR sensor can be adjusted to minimize false triggers from small animals.

Q: Is the light suitable for coastal areas?
A: While the IP54 rating offers protection against dust and water splashes, for coastal areas with high salt exposure, additional protective measures may be advisable.

Q: Can I install this light myself?
A: Installation should be carried out by a licensed electrician to ensure safety and compliance with local regulations.

Q: Does the light have a dusk-to-dawn feature?
A: The light includes a manual override function, but it does not have a built-in dusk-to-dawn sensor.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Colour Black
Type LED Security Light with Sensor
Wattage 45W
Voltage 220-240V AC
IP Rating IP54
Colour Temperature 5700K
Lighting Technology LED
Lumens 4100lm
Beam Angle 100°
CRI >80
Sensor Type PIR Passive Infrared
Sensor Detection Angle 120°
Sensor Duration Time 10s to 7min
Sensor Max Detection Distance 10 mtr
Dimmable No
PRODUCT INFO
SKU MXD6923BLK-SEN
Model # MXD6923BLK-SEN
Barcode # 9312699209284
Brand Mercator
SHIPPING INFO
Shipping Weight 1.0350kg
Shipping Width 0.210m
Shipping Height 0.170m
Shipping Length 0.205m
