S-Tech AuraGuard 182 Outdoor PIR Sensor (2-Wire)
SKU: SEN-IROD182
Out of Stock
$83.60
$76.00 ex GST
Out of Stock
Buy Now, Pay Later with
Did You Also Need…?
56% OFF
RRP $198.00
Next Day Typical Dispatch
On All Orders
Australian Company
Owned & Operated
25+ Years
Industry Experience
Easy Returns
30 Days Peace Of Mind

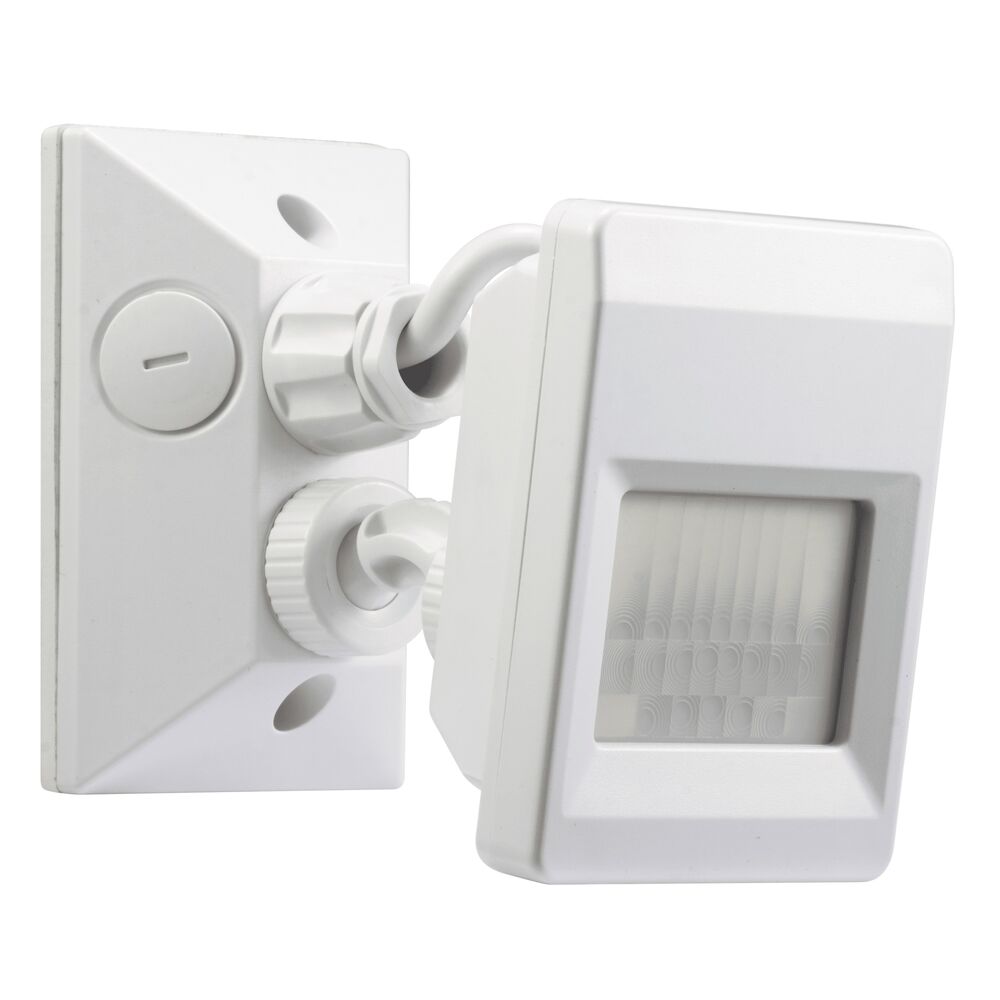

The S-Tech AuraGuard 182 Outdoor PIR Sensor is a robust motion-activated lighting controller designed for reliable outdoor security and automation. Featuring a 180° detection angle and up to 18 m sensing distance, this weatherproof PIR sensor automatically activates lighting when motion is detected, helping improve safety, convenience, and energy efficiency around homes and commercial buildings.
Built with a durable IP66-rated polycarbonate housing, the AuraGuard 182 is engineered to withstand harsh outdoor environments. Adjustable time delay, lux sensitivity, and motion sensitivity settings allow installers to fine-tune performance for a wide range of applications including driveways, entrances, pathways, and building perimeters.
Key Features
- 180° Wide Detection Angle – Covers large outdoor areas for effective motion detection.
- Long Detection Range – Adjustable detection distance from 6 m up to 18 m.
- IP66 Weatherproof Rating – Built for reliable operation in outdoor environments.
- 2-Wire Installation – Designed for simple wiring where neutral may not be available.
- Adjustable Time Delay – Configurable from 10 seconds up to 30 minutes.
- Lux Level Adjustment – Set activation based on ambient light levels (3–2000 lux).
- Sensitivity Adjustment – Fine-tune motion detection performance for the environment.
- No Manual Override – Designed for fully automatic motion-activated operation.
- Durable Polycarbonate Housing – Strong and impact-resistant for long-term outdoor use.
Specifications
- Model: SEN-IROD182
- Sensor Type: Passive Infrared (PIR)
- Power Supply: 220–240 V AC
- Maximum Load:
- 500 W (LED / CFL)
- 1000 W (Incandescent)
- Detection Angle: 180°
- Detection Distance: 6 m – 18 m
- Recommended Installation Height: 1.8 m – 2.5 m
- Time Delay Adjustment: 10 s – 30 min
- Ambient Light Adjustment: 3 – 2000 lux
- Housing Material: Polycarbonate
- Protection Rating: IP66
- Dimensions: 135 × 73 × 115 mm
- Weight: 204 g
- Warranty: 5 Years
Applications
- Outdoor security lighting around homes and buildings
- Driveways, garages, and pathways
- Building entrances and perimeter lighting
- Commercial facilities requiring automatic lighting control
- Energy-efficient lighting automation for outdoor spaces
The S-Tech AuraGuard 182 Outdoor PIR Sensor provides reliable motion detection, adjustable control settings, and rugged weatherproof construction — making it an excellent solution for automatic outdoor lighting and security applications.
Q. What is the maximum detection distance of this PIR sensor?
A. The AuraGuard 182 can detect motion from 6 m up to 18 m, depending on sensitivity settings and installation height.
Q. Is the sensor suitable for outdoor installations?
A. Yes — it has an IP66 weatherproof rating, making it suitable for exposed outdoor environments.
Q. Can the activation time be adjusted?
A. Yes — the time delay can be adjusted from 10 seconds up to 30 minutes to suit the application.
Q. What types of lights can this PIR sensor control?
A. It supports LED or CFL loads up to 500 W and incandescent loads up to 1000 W.
