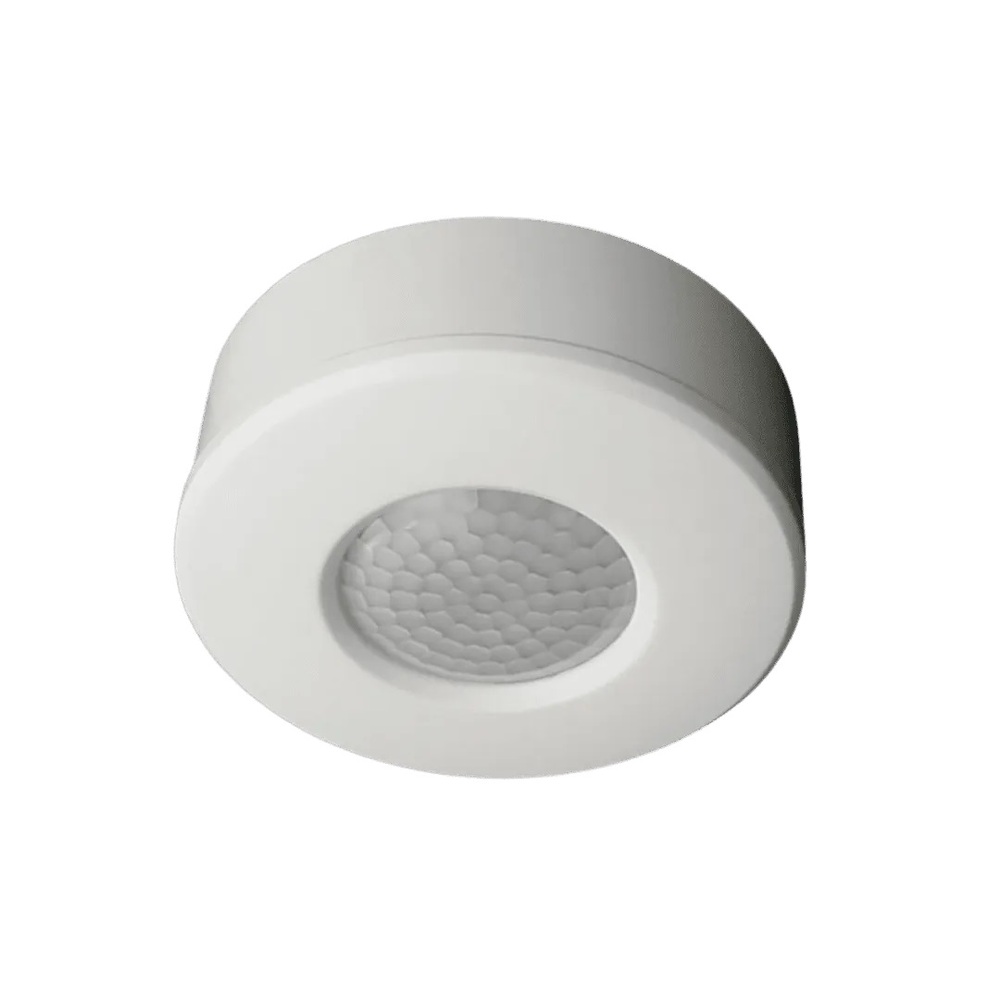

The PIXIE Smart PIR Sensor Indoor Ceiling Mount is a traditional 3-wire, 360° motion sensor with PE sensing capabilities, and acts as a PIXIE Master device with full device control, grouping and scene capability as well as 24 hour 7 days scheduling of any of the 3 modes, built in.

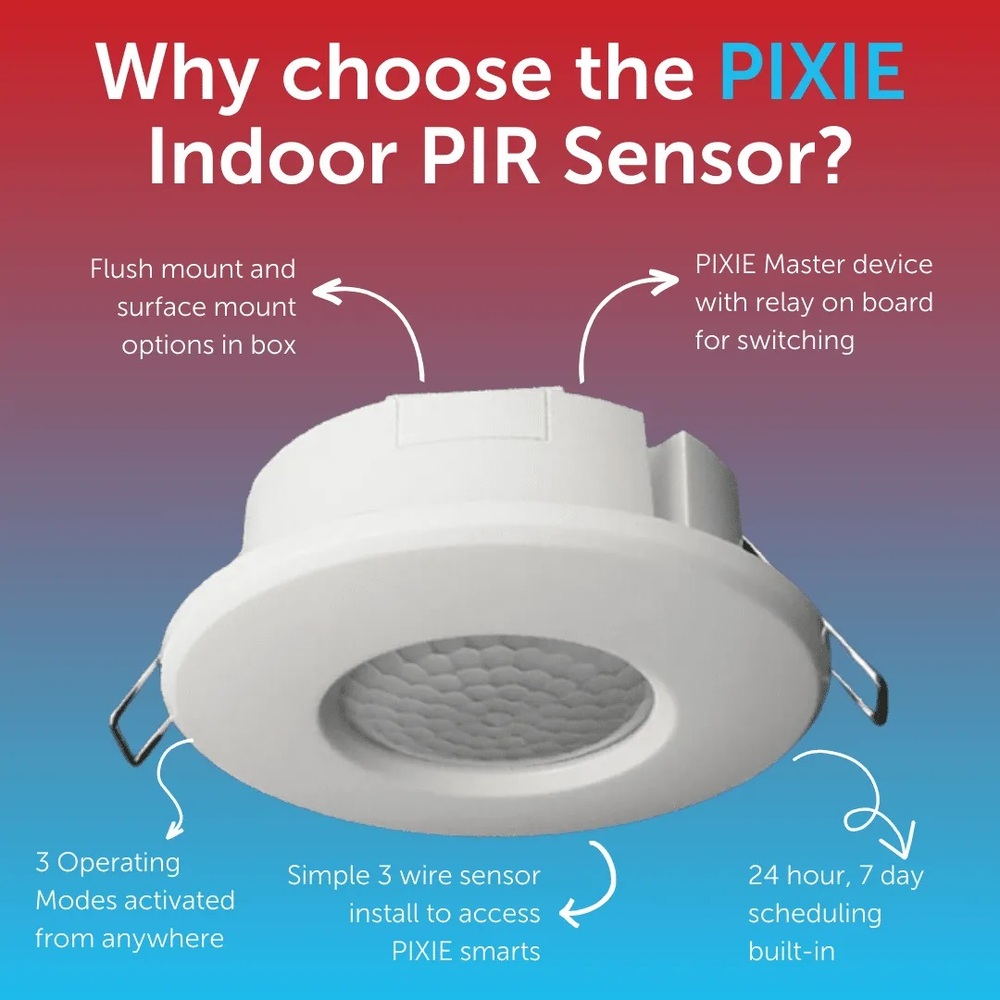

The sensor comes complete with a surface mounting block and springs for both surface or flush mounting arrangements. The LED indicator informs the user of the current operating mode for clarity and when paired with a PIXIE Multifunction Controller, users are automatically provided 3 press functions – Single = Auto; Double = Override On; Triple = Disable.

Features

  • Simply use the App or PIXIE secondary device to switch among 3 operating Modes: AUTO MODE | OVERRIDE ON MODE | DISABLED MODE

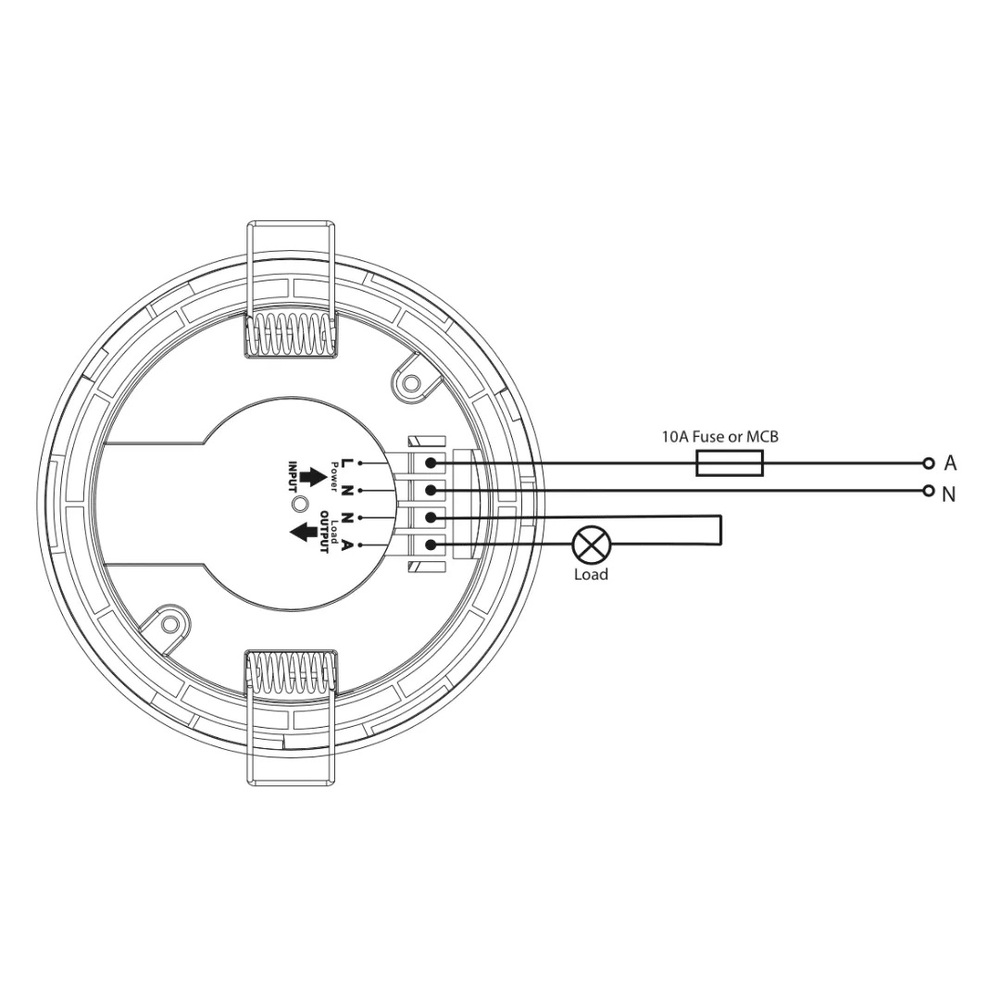

  • Simple 3-wire installation - Neutral required
  • Designed for surface mount or recessed mount applications
  • No minimum load requirement
  • Max Loads: 2800W (Incandescent/Resistive load); 400VA (LED/Capacitive Load); 100VA (Fan Motor/Inductive Load)
  • Detection Range: 360 Degrees up to a max. 8 Metres
  • Ideal Mounting height: 2 - 2.4 Metres
  • Hold Time: 10 seconds to 30 Minutes
    *Future Firmware updates will introduce more advanced functions for greater system wide control from sensor triggers and notifications

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Type Smart Motion Sensor
Installation Area Indoor
Voltage 240V
PRODUCT INFO
SKU SMS861CDBTAM
Model # SMS861CD/BTAM
Barcode # 9328623130968
Brand SAL
SHIPPING INFO
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.130m
