The Clipsal MAX9 MX9SB218F 36 Pole Flush Mount Switchboard is a high-capacity 2 row enclosure designed for residential and commercial electrical distribution. With 36 module spaces across 2 rows, a clean recessed finish, 100A rated current, reversible plain door and supplied installation accessories, it provides electricians with a professional switchboard solution for larger circuit protection layouts.

Key Features

  • 36 Pole Capacity: Provides 36 x 18mm module spaces across 2 rows, giving plenty of room for circuit protection devices in larger residential or light commercial installations.

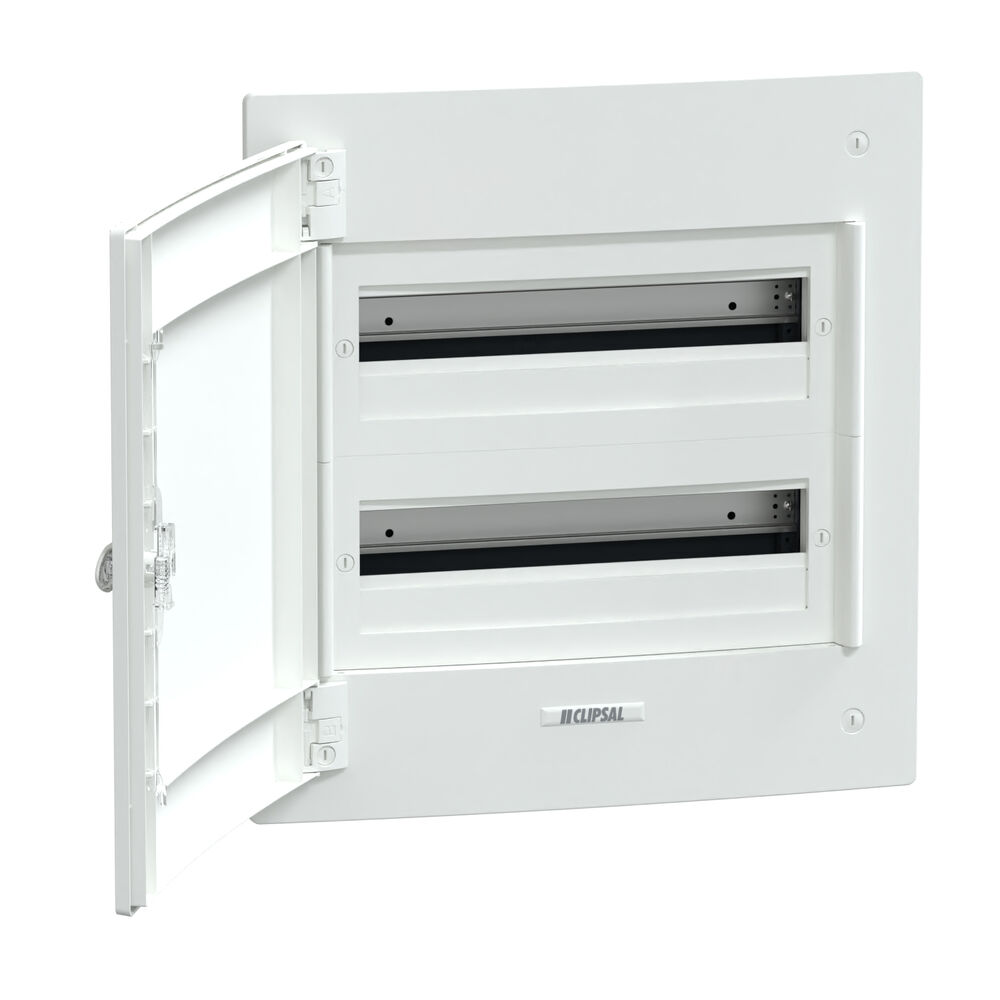

  • 2 Row Layout: Features 18 module spaces per row, helping installers organise circuits clearly across a practical and spacious switchboard layout.
  • Flush Mount Installation: Designed to be recessed into the wall for a clean, built-in finish that suits modern homes, apartments and commercial interiors.
  • Part of the Clipsal MAX9 Range: Designed to complement Clipsal MAX9 circuit protection devices and support a consistent, professional installation.
  • MAX9 Installation Benefits: Offers MAX flexibility with adjustable DIN rails and neutral/earth bar positions, plus extra internal space to assist with wiring and device installation.
  • 100A Rated Current: Suitable for electrical distribution applications requiring a reliable 100A rated enclosure.

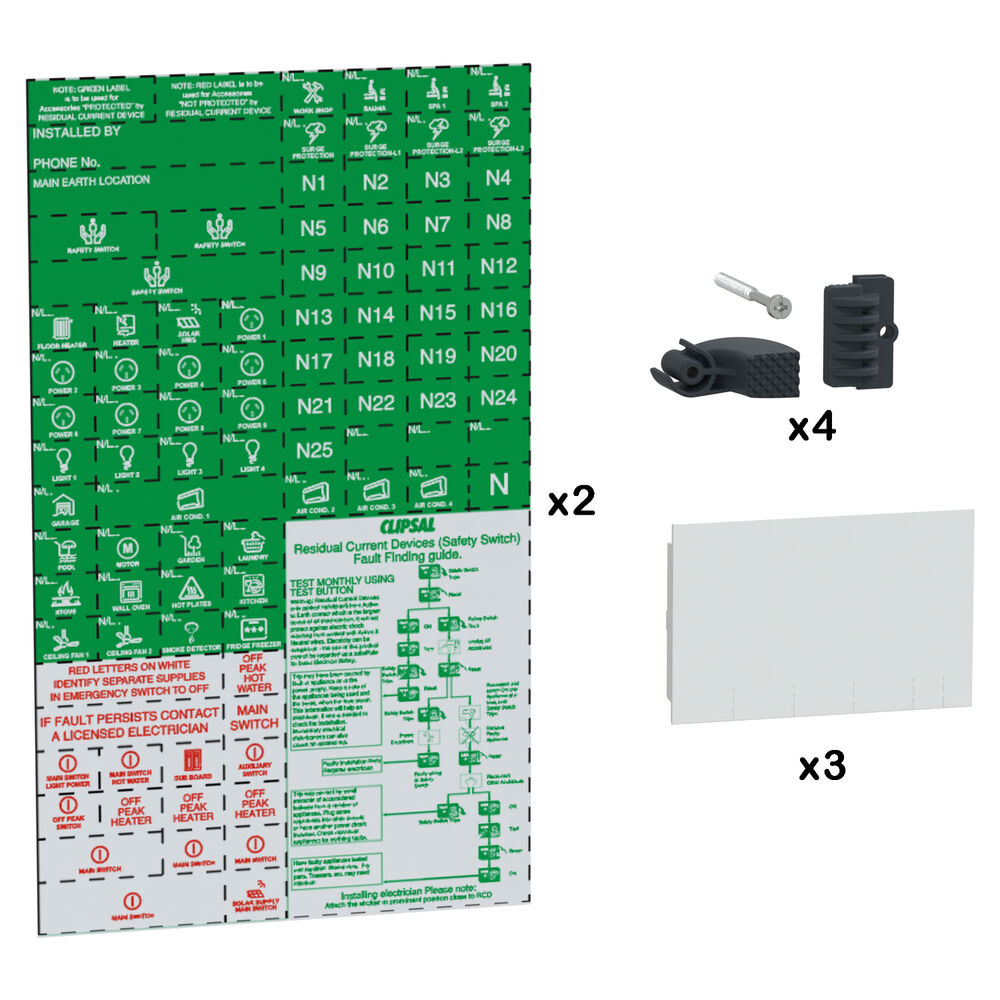

  • Supplied Installation Accessories: Includes an earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit to support efficient installation.

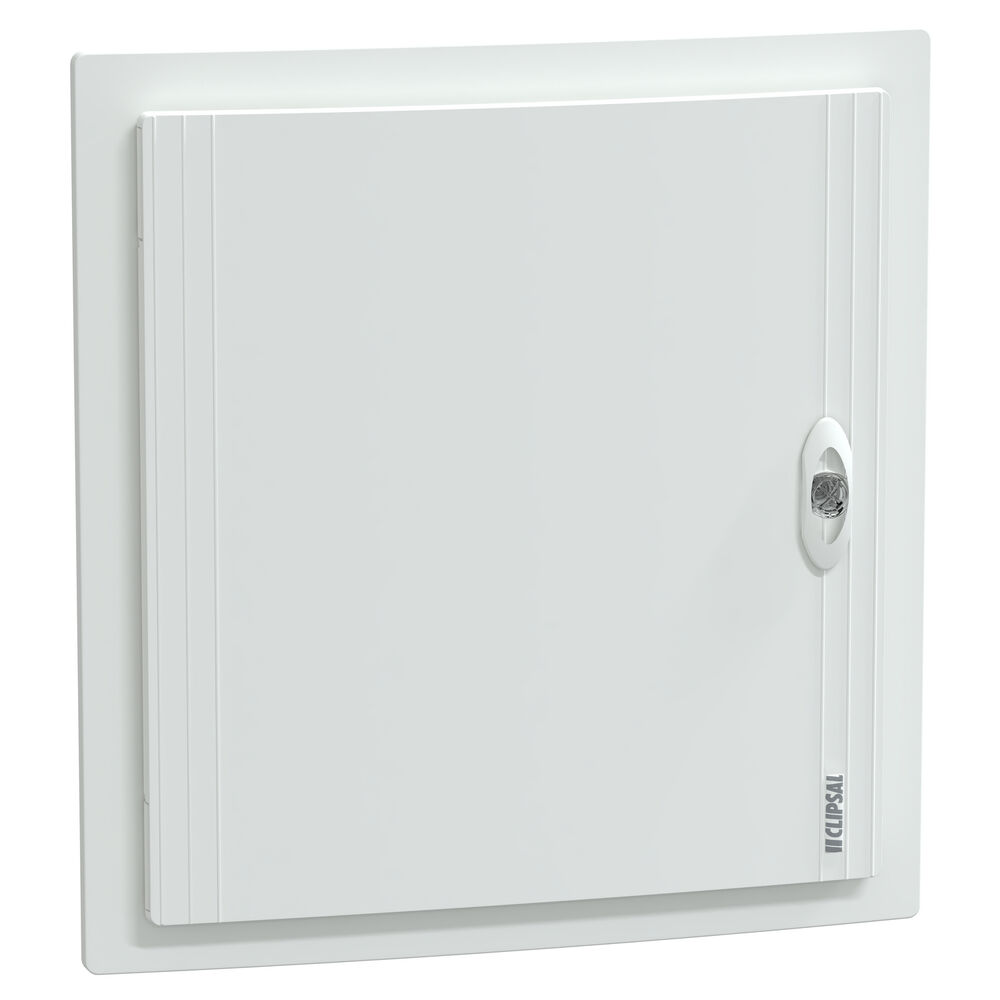

  • Reversible Plain Door: The plain door can be reversed to suit installation requirements and maintain a tidy finished appearance.
  • Adjustable Symmetrical DIN Rail: Allows compatible modular devices to be fitted neatly while helping simplify layout and wiring.
  • IP40 & IK09 Rated: Provides IP40 ingress protection and IK09 impact resistance for suitable indoor switchboard applications.

Specifications

  • Model: MX9SB218F
  • Range: Clipsal MAX9
  • Product Type: Switchboard enclosure
  • Mounting Type: Flush mount
  • Number of Ways: 36 ways
  • Number of Rows: 2
  • Total Module Capacity: 36 x 18mm modules
  • Modules Per Row: 18
  • Device Application: Distribution
  • Rated Operational Voltage: 230–240V AC / 400–415V AC / 230/415V AC
  • Rated Current: 100A
  • Rated Insulation Voltage: 500V
  • Colour: White
  • Colour Reference: RAL 9003
  • Enclosure Material: Technoplastic
  • Door Type: Plain reversible door
  • Rail Type: Adjustable symmetrical DIN rail
  • Cable Entry: Knock-out cable entries and removable gland plate
  • Supplied Equipment: Earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit
  • IP Rating: IP40
  • IK Rating: IK09
  • Fire Resistance: 650°C conforming to IEC 60695-2-11
  • Standards: AS/NZS 61439.3 and AS/NZ 3000

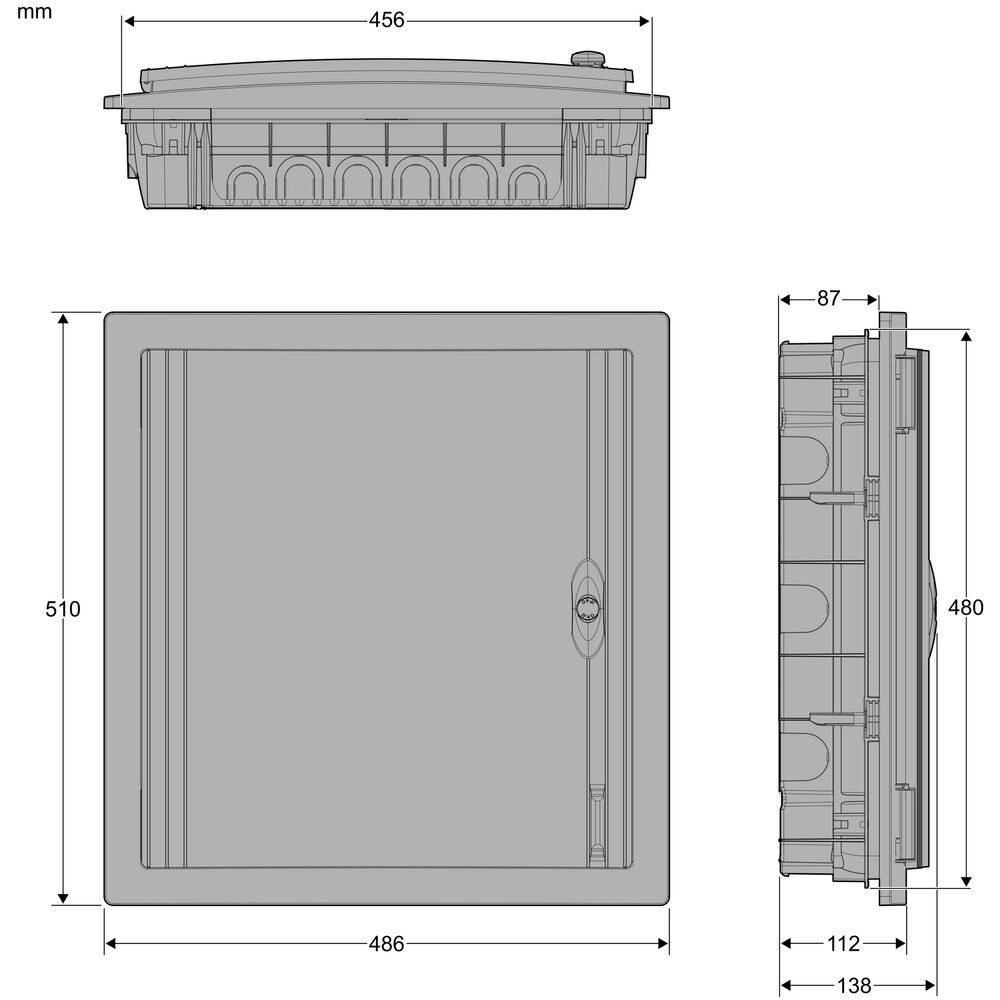

  • Width: 486mm
  • Height: 510mm
  • Depth: 135mm
  • Warranty: 7 years

Applications

  • Residential switchboards
  • Apartment distribution boards
  • Light commercial switchboards
  • New home electrical installations
  • Renovation and switchboard upgrade projects
  • Sub-board installations
  • Indoor circuit protection enclosures
  • MAX9 circuit protection installations
  • Electrical distribution applications requiring a neat flush-mounted finish
  • Installations requiring 2 rows of modular protection devices

The Clipsal MAX9 MX9SB218F 36 Pole Flush Mount Switchboard is a spacious and professional enclosure for modern indoor electrical distribution. With its 36 pole capacity, 2 row layout, flush-mounted design, supplied installation accessories, IP40 protection, IK09 impact resistance and compatibility with the Clipsal MAX9 range, it is a dependable choice for electricians completing larger residential and light commercial switchboard installations.

Q. How many modules does the Clipsal MX9SB218F hold?
A. The MX9SB218F holds 36 x 18mm modules across 2 rows, with 18 module spaces per row.

Q. Is this switchboard surface mount or flush mount?
A. This model is flush mount, meaning it is designed to be recessed into the wall for a clean, low-profile installation.

Q. What accessories are supplied with the switchboard?
A. It is supplied with an earthing bar, neutral bar, circuit identification label, pole filler and flush mounting kit.

Q. Is the MX9SB218F suitable for outdoor use?
A. No. The MX9SB218F has an IP40 rating and is intended for suitable indoor or protected installations only.

Q. What is the difference between MX9SB218F and MX9SB218S?
A. The MX9SB218F is the flush mount version, while the MX9SB218S is the surface mount version. Both provide 36 module spaces across 2 rows, but the installation style is different.
