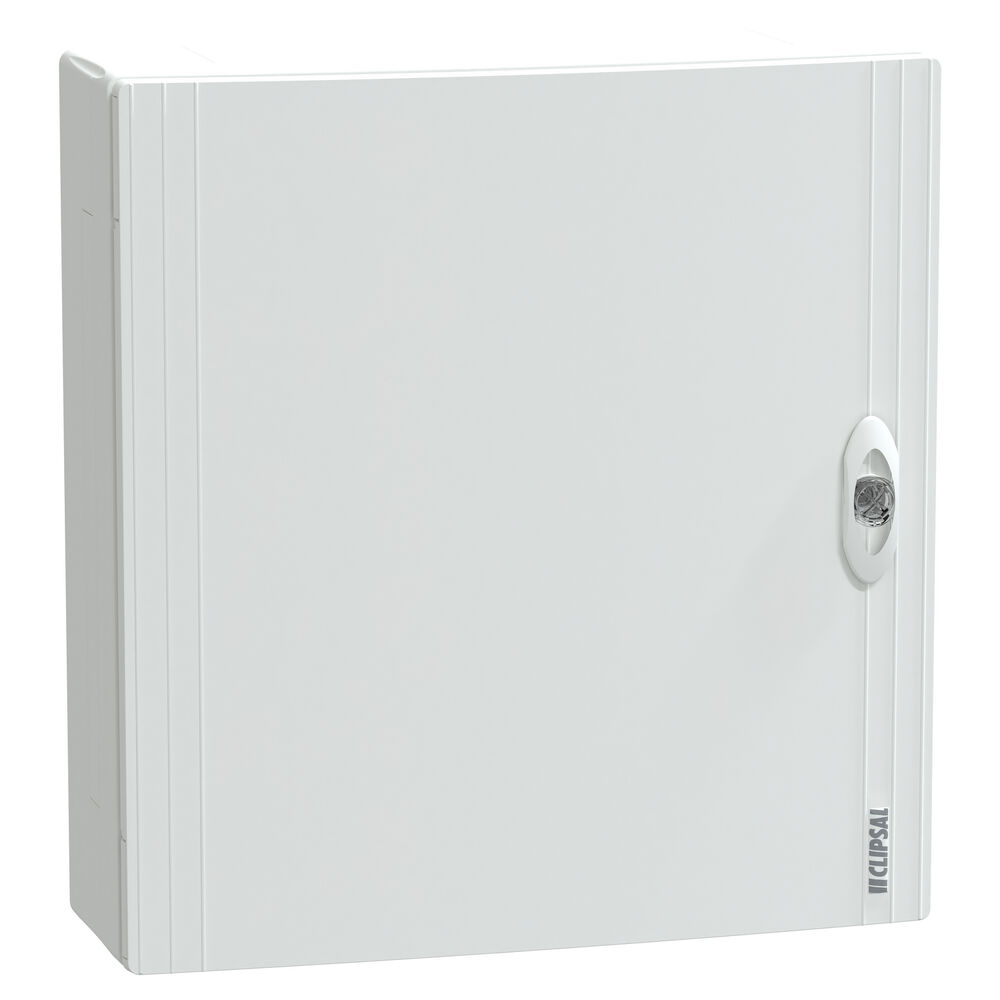

The Clipsal MAX9 MX9SB218S 36 Pole Surface Mount Switchboard is a spacious 2 row enclosure designed for modern residential and light commercial electrical distribution. With 36 module spaces across 2 rows, a surface mount design, reversible plain door and compatibility with Clipsal MAX9 circuit protection devices, it provides a practical and professional solution where recessed installation is not required.

Key Features

  • 36 Pole Capacity: Provides 36 x 18mm module spaces across 2 rows, giving electricians ample room for circuit protection devices in larger residential or light commercial switchboard layouts.
  • 2 Row Layout: Features 18 module spaces per row, helping keep circuit protection devices organised and easy to identify.
  • Surface Mount Installation: Designed to mount directly onto the wall, making it ideal for installations where flush mounting is not suitable, practical or required.
  • Part of the Clipsal MAX9 Range: Designed to pair with compatible Clipsal MAX9 circuit protection products for a consistent, professional switchboard installation.
  • MAX9 Installation Benefits: Offers adjustable DIN rails, flexible neutral and earth bar positions, 150mm between DIN rails and extra internal wiring space to assist with installation.
  • 100A Rated Neutral & Earth Bars: Designed to support dependable electrical distribution performance within compatible MAX9 installations.
  • Clean White Finish: Finished in white RAL 9003, providing a neat appearance for indoor electrical installations.

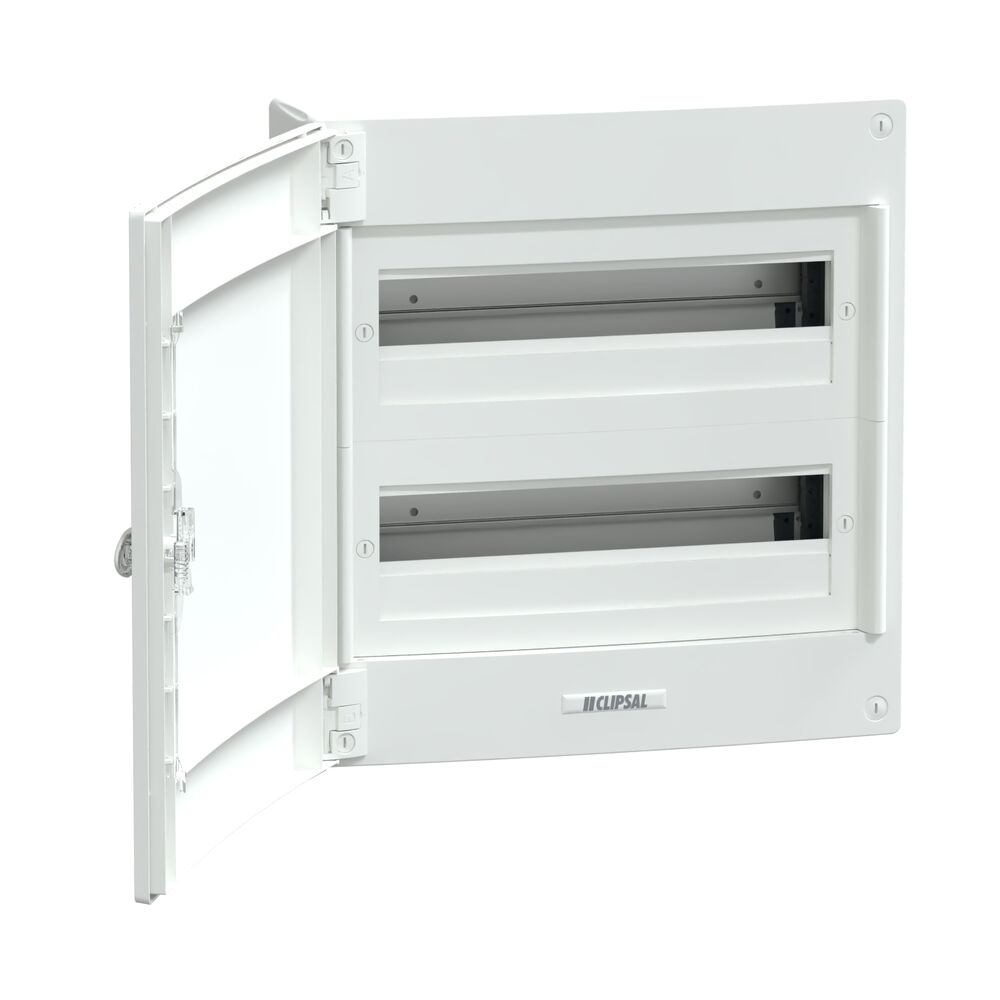

  • Reversible Plain Door: The plain reversible door allows greater installation flexibility while maintaining a clean finished look.
  • Durable Technoplastic Enclosure: Manufactured from technoplastic material for a strong, practical and professional enclosure solution.
  • IP40 Rated Protection: Provides IP40 ingress protection for suitable indoor or protected switchboard installations.

Specifications

  • Model: MX9SB218S
  • Range: Clipsal MAX9
  • Product Type: Switchboard enclosure
  • Mounting Type: Surface mount
  • Number of Ways: 36 ways
  • Number of Rows: 2
  • Total Module Capacity: 36 x 18mm modules
  • Modules Per Row: 18
  • Device Application: Distribution
  • Rated Insulation Voltage: 500V
  • Colour: White
  • Colour Reference: RAL 9003
  • Enclosure Material: Technoplastic
  • Door Type: Plain reversible door
  • Rail Type: Adjustable symmetrical DIN rail

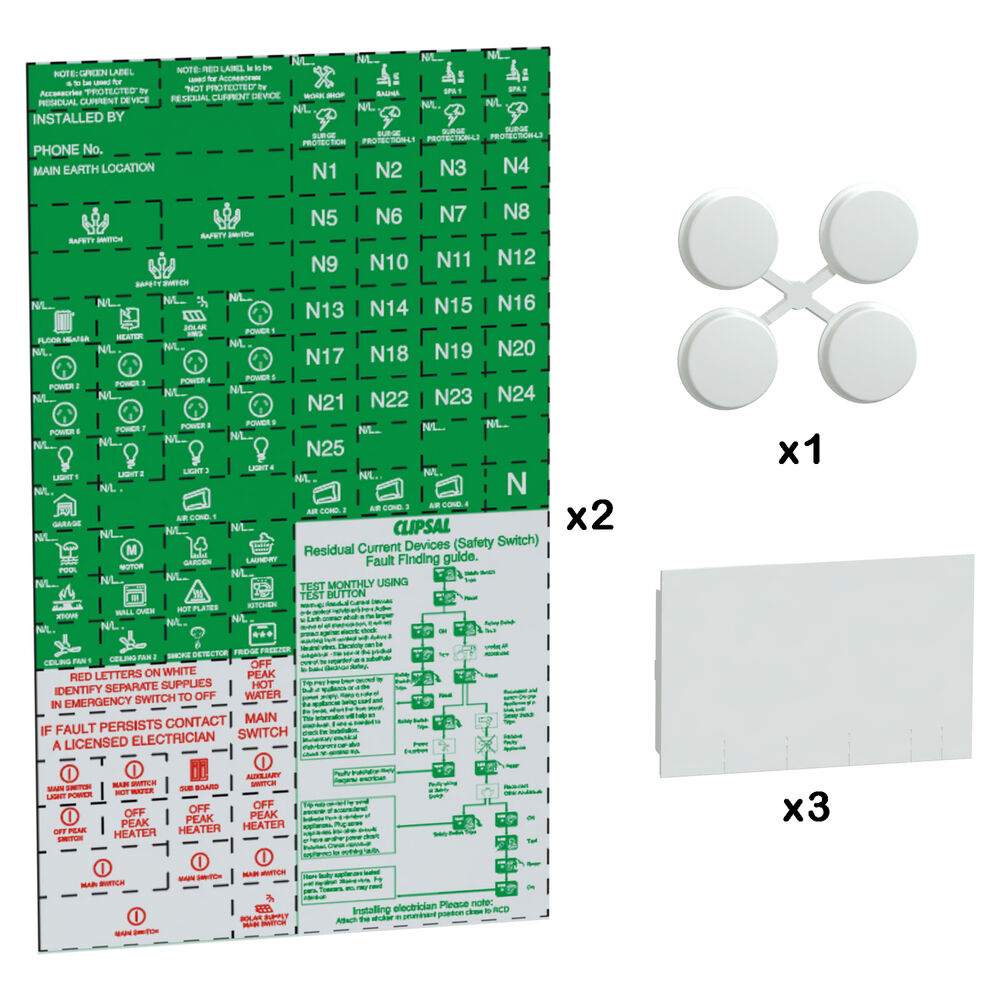

  • Supplied Equipment: Earthing bar, neutral bar, circuit identification label and pole filler
  • IP Rating: IP40
  • Fire Resistance: 650°C conforming to IEC 60695-2-11
  • Standards: AS/NZS 61439.3 and AS/NZ 3000

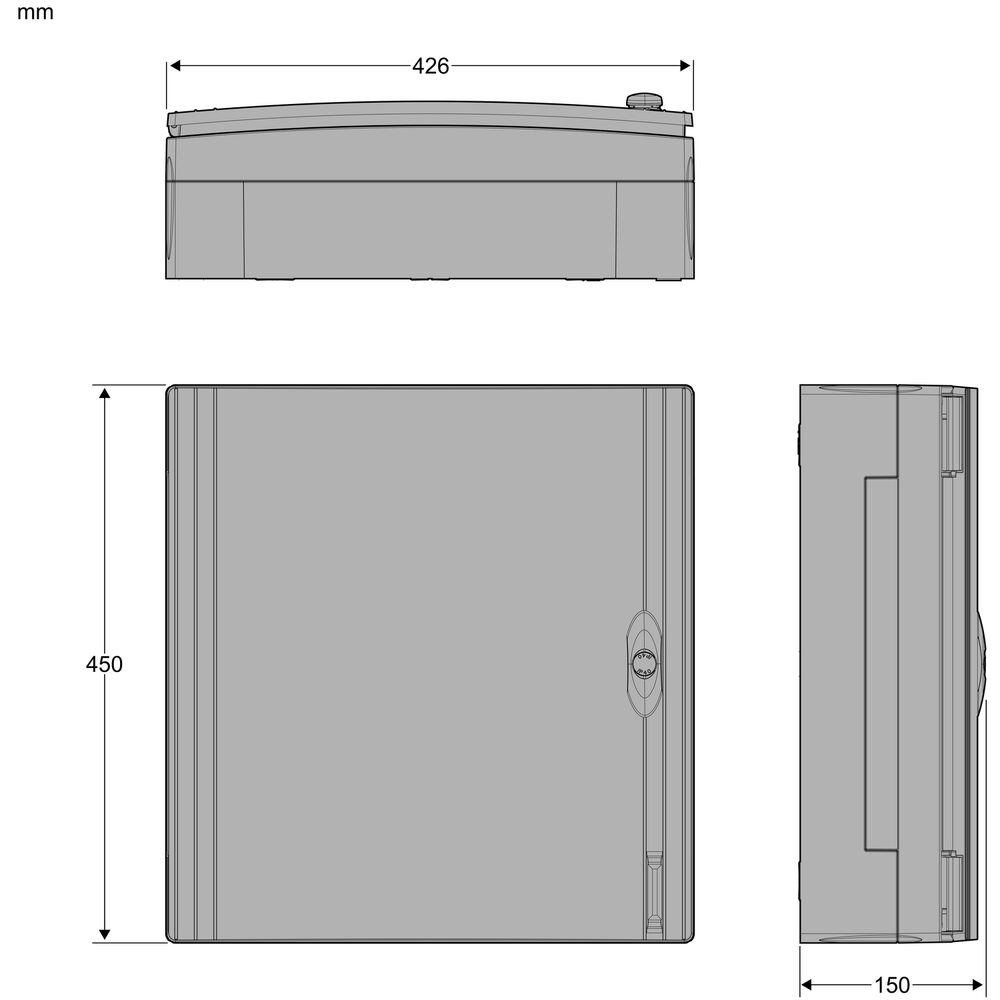

  • Width: 426mm
  • Height: 450mm
  • Depth: 151mm
  • Warranty: 7 years

Applications

  • Residential switchboards
  • Apartment distribution boards
  • Light commercial switchboards
  • New home electrical installations
  • Renovation and switchboard upgrade projects
  • Sub-board installations
  • Indoor circuit protection enclosures
  • MAX9 circuit protection installations
  • Surface mount electrical distribution applications
  • Installations requiring 2 rows of modular protection devices

The Clipsal MAX9 MX9SB218S 36 Pole Surface Mount Switchboard is a dependable and spacious enclosure for indoor electrical distribution. With its 36 pole capacity, 2 row layout, surface mount design, adjustable DIN rail, supplied installation accessories and compatibility with the Clipsal MAX9 range, it is a strong choice for electricians completing residential, renovation and light commercial switchboard installations.

Q. How many modules does the Clipsal MX9SB218S hold?
A. The MX9SB218S holds 36 x 18mm modules across 2 rows, with 18 module spaces per row.

Q. Is this switchboard surface mount or flush mount?
A. This model is surface mount, meaning it is designed to be mounted directly onto the wall rather than recessed into the wall cavity.

Q. Is the MX9SB218S suitable for outdoor use?
A. No. The MX9SB218S has an IP40 rating and is intended for suitable indoor or protected installations only.

Q. What is the difference between MX9SB218S and MX9SB218F?
A. The MX9SB218S is the surface mount version, while the MX9SB218F is the flush mount version. Both provide 36 module spaces across 2 rows, but the installation style is different.

Q. What circuit protection range is this enclosure designed for?
A. The MX9SB218S is part of the Clipsal MAX9 range and is designed to suit compatible MAX9 circuit protection devices.
