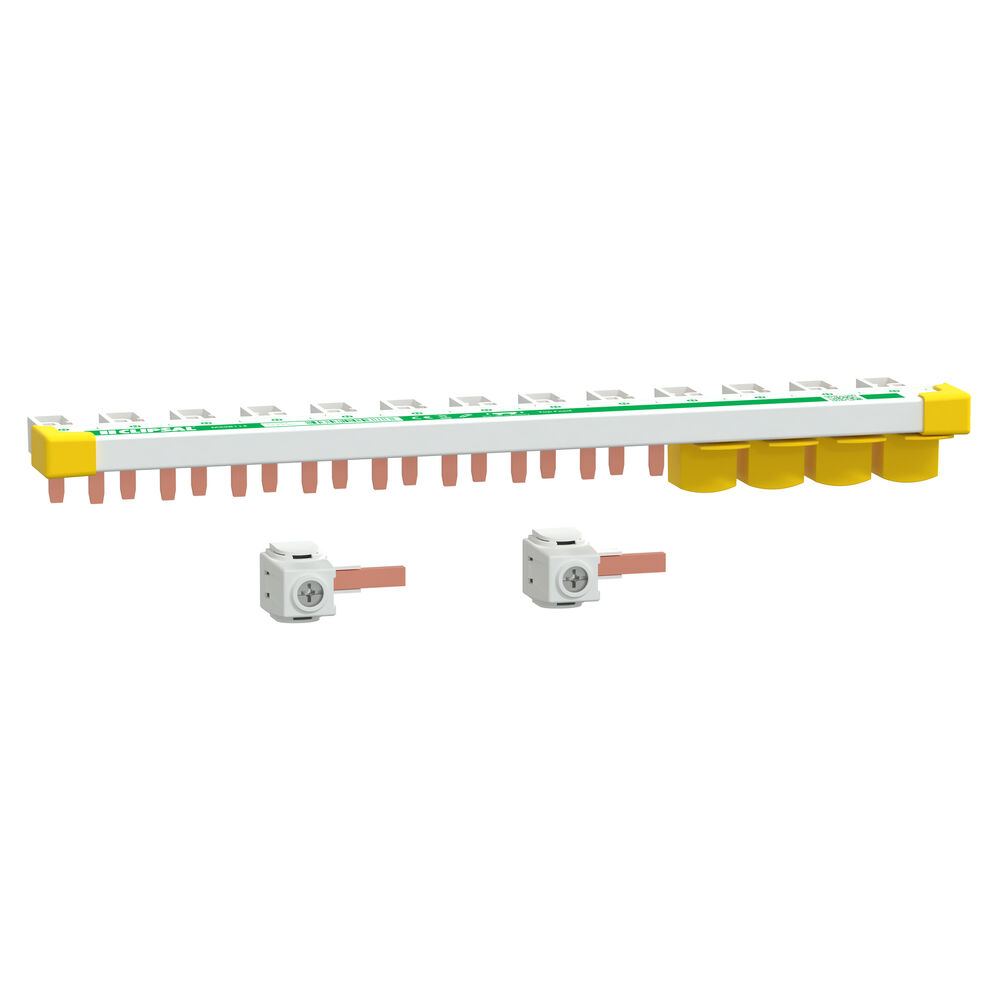

The Clipsal MAX9 MX9B113 1P+N 13 Module Busbar is designed to simplify and speed up circuit protection wiring in compatible Clipsal MAX9 switchboards. Rated at 100A and designed for 1P+N applications, this top feed busbar helps create a cleaner, more professional switchboard layout by reducing individual cable links when feeding compatible MAX9 devices.

Key Features

  • 1P+N Busbar Configuration: Designed for single phase and neutral circuit protection layouts using compatible Clipsal MAX9 devices.
  • 13 Module Capacity: Suits 13 module MAX9 switchboard rows, making it ideal for compact residential and light commercial circuit protection installations.
  • 100A Rated Performance: Built with a 100A rating to support dependable circuit distribution in compatible MAX9 switchboard applications.
  • Top Feed Design: Designed for top feed busbar connection, helping create a neat and practical wiring arrangement inside the board.
  • Faster Switchboard Wiring: MAX9 busbar solutions are designed to reduce traditional wiring time, helping electricians complete fit-offs more efficiently.
  • Cleaner Board Layout: Helps reduce individual cable links between devices, creating a tidier and more professional-looking installation.
  • Compatible with Clipsal MAX9 Circuit Protection: Designed for use within the Clipsal MAX9 range, including compatible RCBO and circuit protection devices.
  • Supplied with Accessories: The MX9B113 is listed as supplied with accessories, helping support installation and protection of the busbar assembly.
  • Ideal for New Boards and Upgrades: Suitable for new MAX9 switchboard installations, board upgrades and circuit protection replacement projects.
  • Professional MAX9 System Finish: Helps deliver a consistent Clipsal MAX9 installation with matching switchboards, protection devices and connection accessories.

Specifications

  • Model: MX9B113
  • Brand: Clipsal by Schneider Electric
  • Range: MAX9
  • Product Type: Busbar / MAXBAR connection accessory
  • Busbar Type: Top feed
  • Poles Configuration: 1P+N
  • Number of Modules: 13 modules
  • Rated Current: 100A
  • Compatible System: Clipsal MAX9 switchboards and compatible MAX9 circuit protection devices

Applications

  • Clipsal MAX9 switchboard installations
  • Residential switchboards
  • Light commercial distribution boards
  • Single phase circuit protection layouts
  • RCBO feeding applications
  • Switchboard upgrades
  • New home electrical installations
  • Renovation and replacement work
  • Cleaner switchboard wiring layouts
  • Electrical distribution applications using compatible MAX9 devices

The Clipsal MAX9 MX9B113 1P+N 13 Module Busbar is a practical accessory for electricians wanting faster, cleaner and more professional MAX9 switchboard wiring. With its 13 module layout, 100A rating and top feed design, it is a reliable choice for compatible residential and light commercial circuit protection installations.

Q. What is the Clipsal MX9B113 used for?
A. The MX9B113 is used to feed compatible Clipsal MAX9 circuit protection devices in a 1P+N switchboard layout, helping reduce individual wiring links.

Q. How many modules does the MX9B113 suit?
A. The MX9B113 is designed for 13 modules, making it suitable for compatible 13 way MAX9 switchboard rows.

Q. What current rating is the MX9B113?
A. The MX9B113 is rated at 100A.

Q. Is this busbar for single phase or three phase installations?
A. This model is a 1P+N busbar, making it suitable for compatible single phase and neutral MAX9 circuit protection layouts.

Q. What is the difference between MX9B113 and MX9B113N?
A. The MX9B113 is the 1P+N 13 module busbar with accessories, while the MX9B113N version is listed as supplied with an N block and accessories.

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Amp 100A
Type Insulated Busbar
Poles 1P+N
Range Clipsal MAX9
Module 13
PRODUCT INFO
SKU CLMX9B113
Model # MX9B113
Barcode # 3606488056873
Brand Clipsal
SHIPPING INFO
Shipping Weight 0.2100kg
Shipping Width 0.040m
Shipping Height 0.105m
Shipping Length 0.260m
