Dimmable, IP65 LED UFO highbay with selectable colour temperature and power.

Application
Super low profile dimmable LED highbay, ideal for commercial or industrial warehouse environments

Design Specifications

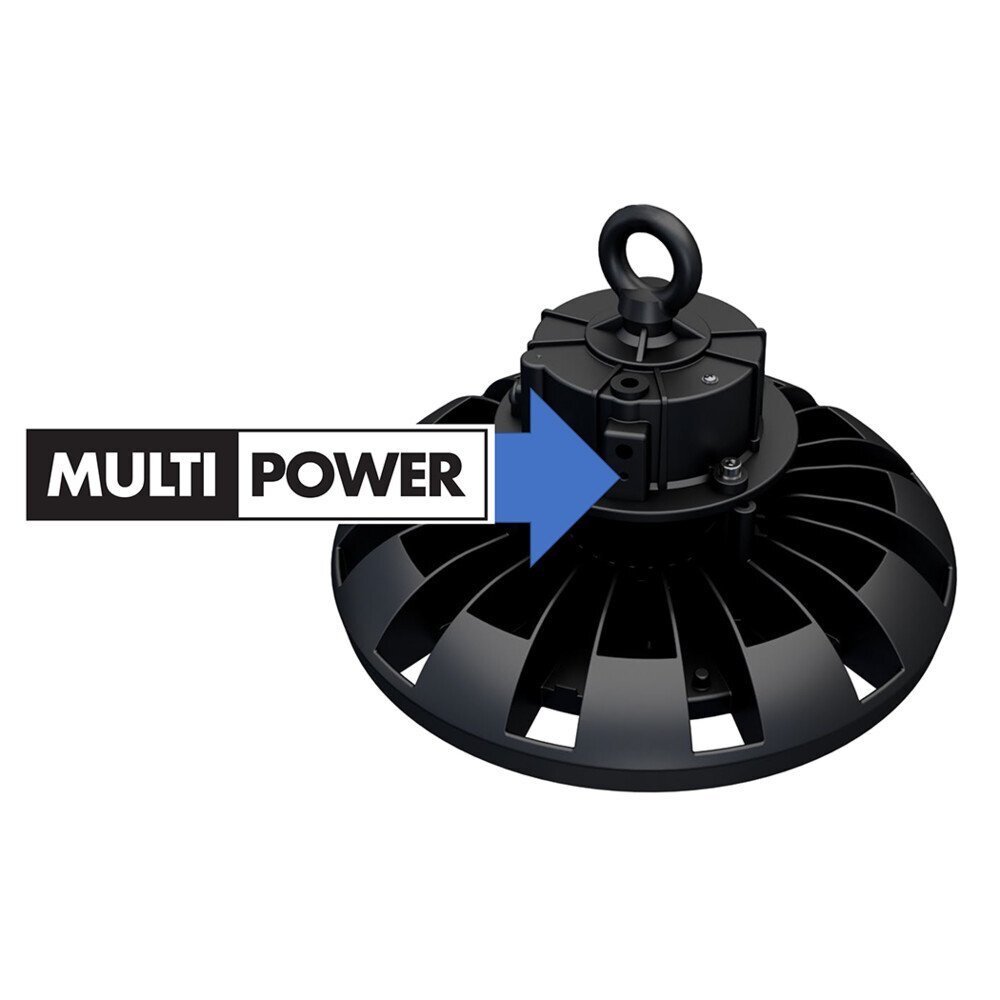

  • Integral selectable power 80 / 120 or 150 watts

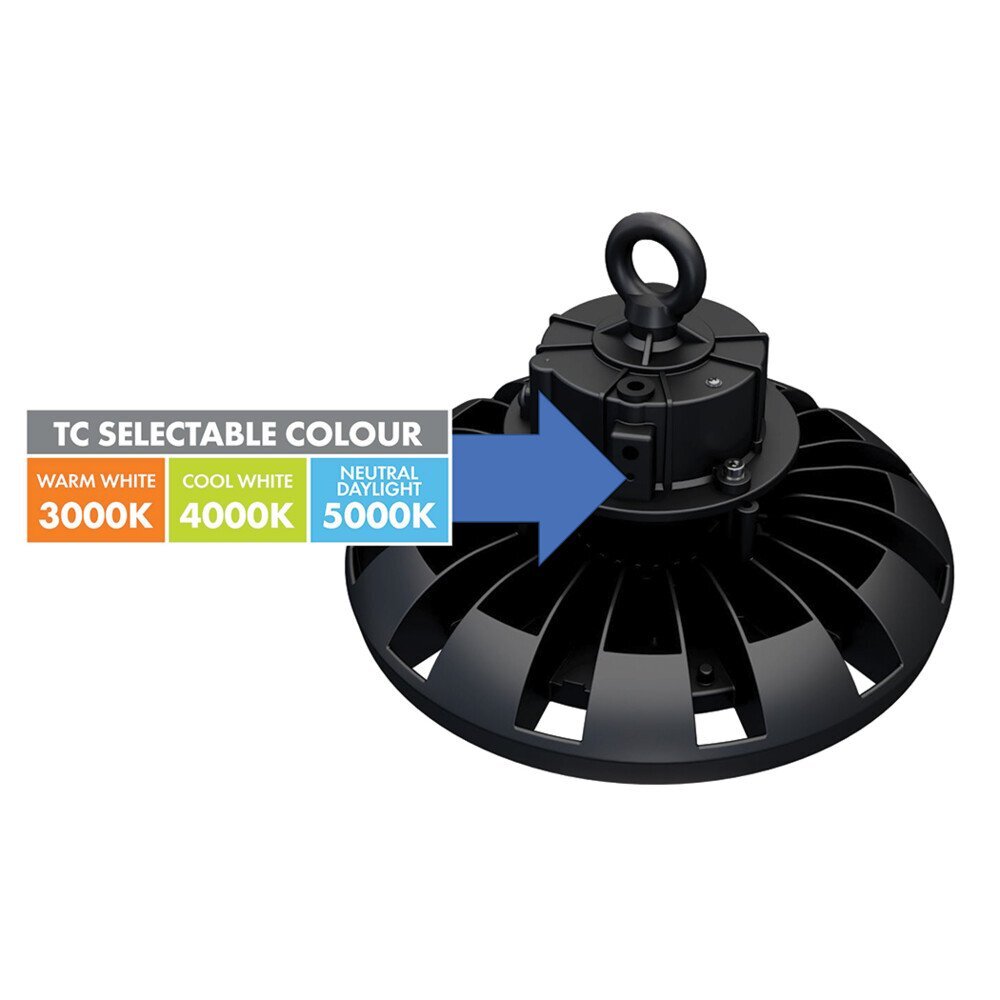

  • Integral selectable colour temperature 3000 , 4000 or 5000K
  • Robust, low profile die-cast aluminium IP65/IK08 body profile.
  • High efficiency SMD LED chips, with an impressive > 145lm/W optical performance at 4000K, CRI > 70, 90 degree beam distribution, polycarbonate lens

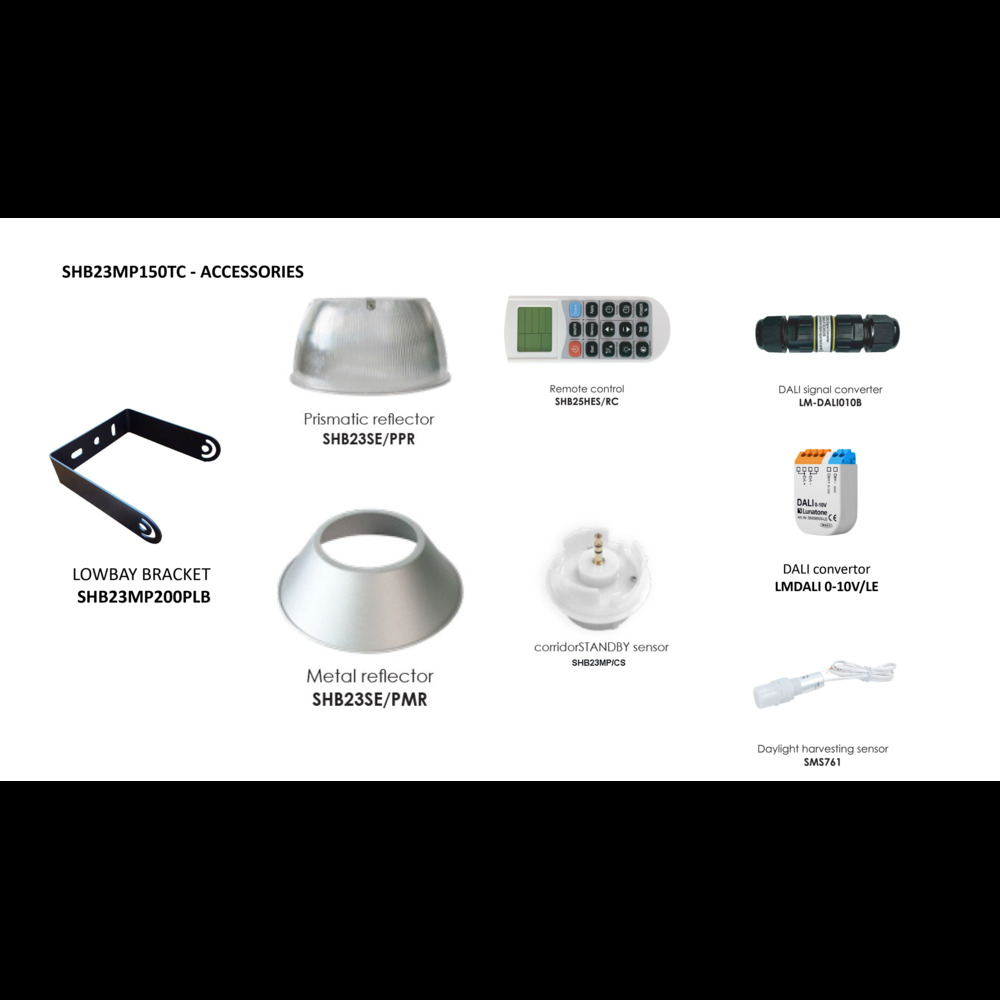

  • Integral 1-10V dimmable LED driver, complete with flex and plug for easy installation, optional inline DALI signal converter, optional plug and play corridor STANDBY sensor
  • Power/lumen settings at
    3000K : 80W/11400lm, 120W/16000lm, 150W/18800lm,
    4000K : 80W/12400lm, 120W/18000lm, 150W/21800lm,
    5000K : 80W/11800lm, 120W/16500lm, 150W/20000lm.


Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V, optional SAL DALI signal converter


Technical Specifications

  • Input Voltage: 240v
  • Multiple Wattage: 80w/120w/150w
  • Lumens: 18800/21800/20000
  • CCT: 3000k/4000k/5000k
  • Beam Angle: 90°
  • CRI: 80
  • Body Colour: Black

Dimensions

  • Width: 280mm
  • Height: 192mm

All products must be installed by a licensed electrican. DIY electrical work is illegal and very dangerous.

Change of Mind
All products purchased from MJS Electrical Products & Supplies are backed by a thirty (30) day Peace of Mind Return Policy. All products returned must be in perfect unused condition, with all components, complete with original packaging. We will not allow returns on damaged or incomplete products. Proof of purchase is required. Should the product not be in original condition, please contact us before returning it as this may save you some unnecessary costs.

Damaged / Faulty Goods
If you find that the goods were damaged in transit or were faulty in some manner, please contact us within 24 hours of receiving the goods. We will organise for the return of the goods and arrange a credit towards your next purchase or send a replacement product. Customer will incur the cost of return postage and be credited the purchase price only. We recommend that you return your unwanted items using registered post or trackable courier. We can not be held responsible if returned items are lost in transit.

Warranties
Product warranties are governed by the respective manufacturers and / or suppliers warranty terms and conditions (available on request). We will not be liable to you or any third party for any loss suffered due to product failure. We will process product warranty claims through the respective manufacturers and/or suppliers. All warranties are void if the product is not installed by a licensed electrician.

Colour Black
Type LED Highbay Lights
Wattage 80W/120W/150W
Voltage 240V
Installation Area Indoor
IP Rating IP65
Colour Temperature Tricolour
Lighting Technology LED
PRODUCT INFO
SKU SHB23MP150TC
Model # SHB23MP150TC
Barcode # 9328623127029
Brand SAL
SHIPPING INFO
Shipping Weight 3.3000kg
Shipping Width 0.300m
Shipping Height 0.175m
Shipping Length 0.300m
