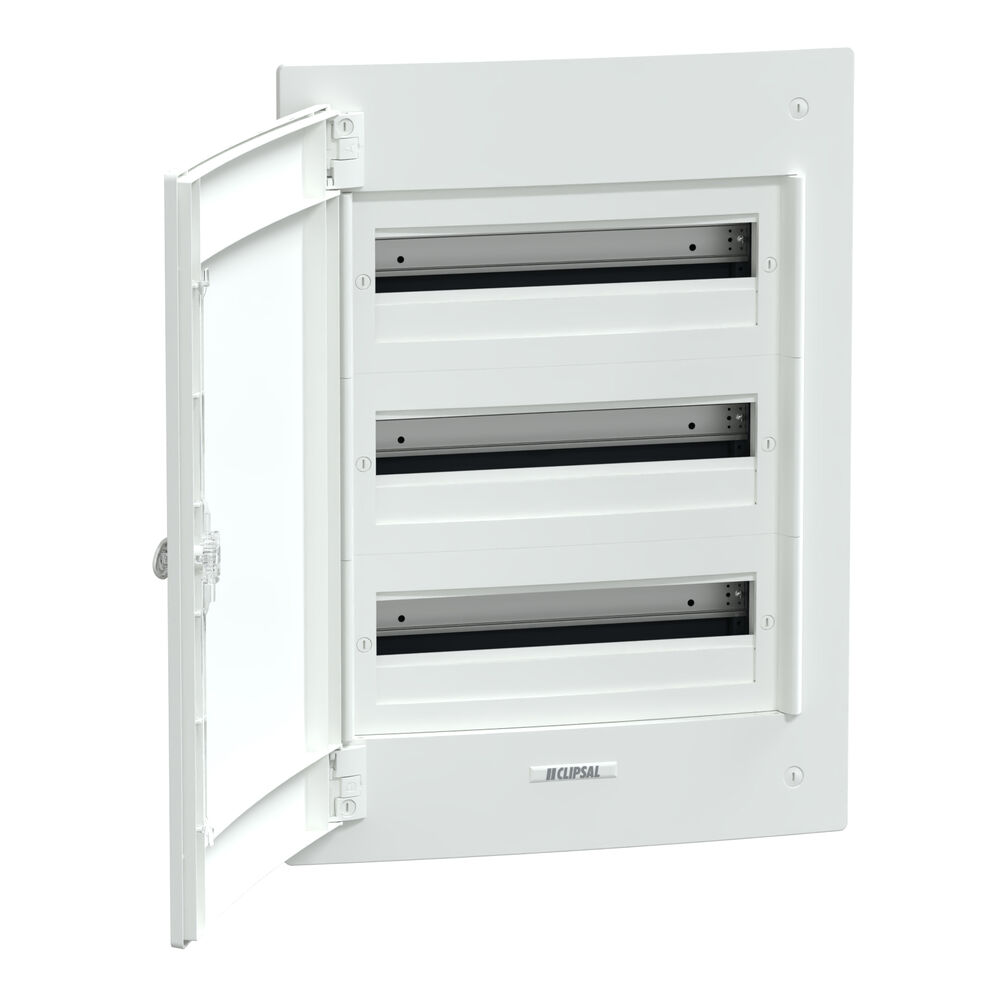

The Clipsal MAX9 MX9SB318F 54 Pole Flush Mount Switchboard is a high-capacity 3 row enclosure designed for larger residential and commercial electrical distribution installations. With 54 module spaces across 3 rows, a flush mount design, modern white finish and compatibility with Clipsal MAX9 circuit protection devices, it provides a spacious and professional solution for switchboard upgrades, new builds and larger circuit protection layouts.

Key Features

  • 54 Pole Capacity: Provides 54 x 18mm module spaces, making it suitable for larger installations requiring extra circuit protection capacity.
  • 3 Row Layout: Features 18 module spaces per row, helping electricians organise protective devices neatly across a clear and spacious layout.

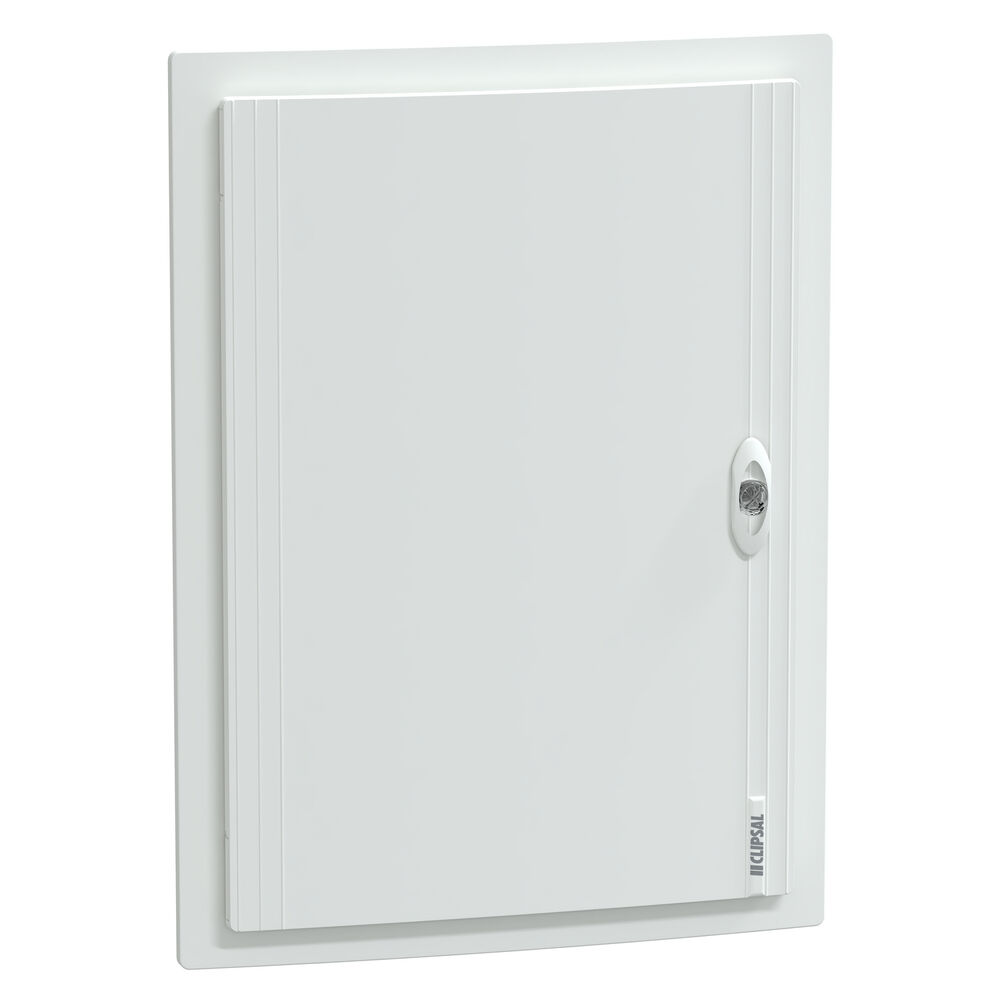

  • Flush Mount Installation: Designed to be recessed into the wall for a clean, built-in appearance that suits modern residential and commercial interiors.
  • Part of the Clipsal MAX9 Range: Designed to suit compatible Clipsal MAX9 circuit protection devices for a neat, consistent and professional installation.
  • MAX9 Installation Flexibility: Offers adjustable DIN rails, flexible neutral and earth bar positions and extra internal space to assist with faster, cleaner wiring.
  • MAXBAR Compatible System: Designed to support the MAX9 system, including MAXBAR installation benefits for faster and more efficient circuit protection wiring.
  • 100A Rated Neutral & Earth Bars: Built for dependable performance in compatible MAX9 distribution installations.
  • 150mm DIN Rail Spacing: Provides generous space between DIN rails, plus extra internal wiring room to help simplify installation and fit-off.
  • Modern White Finish: Finished in white RAL 9003 for a clean, professional look in indoor switchboard installations.

Specifications

  • Model: MX9SB318F
  • Range: Clipsal MAX9
  • Product Type: Switchboard enclosure
  • Mounting Type: Flush mount
  • Number of Ways: 54 ways
  • Number of Rows: 3
  • Total Module Capacity: 54 x 18mm modules
  • Modules Per Row: 18
  • Device Application: Distribution
  • Colour: White
  • Colour Reference: RAL 9003
  • DIN Rail: Adjustable DIN rail system
  • Neutral / Earth Bars: 100A rated neutral and earth bars
  • Internal Spacing: 150mm between DIN rails
  • Compatible System: Clipsal MAX9 circuit protection and MAXBAR
  • Width: 486mm
  • Height: 660mm
  • Depth: 135mm

Applications

  • Larger residential switchboards
  • Apartment distribution boards
  • Commercial switchboard installations
  • New home electrical installations
  • Renovation and switchboard upgrade projects
  • Sub-board installations
  • Indoor circuit protection enclosures
  • MAX9 circuit protection installations
  • Flush mount electrical distribution applications
  • Installations requiring 3 rows of modular protection devices

The Clipsal MAX9 MX9SB318F 54 Pole Flush Mount Switchboard is a spacious and professional enclosure for larger indoor electrical distribution installations. With its 54 pole capacity, 3 row layout, flush mount design, adjustable DIN rail system, MAXBAR compatibility and practical internal wiring space, it is a strong choice for electricians completing residential, renovation and commercial switchboard projects.

Q. How many modules does the Clipsal MX9SB318F hold?
A. The MX9SB318F holds 54 x 18mm modules across 3 rows, with 18 module spaces per row.

Q. Is this switchboard surface mount or flush mount?
A. This model is flush mount, meaning it is designed to be recessed into the wall for a clean, low-profile finish.

Q. What is the difference between MX9SB318F and MX9SB318S?
A. The MX9SB318F is the flush mount version, while the MX9SB318S is the surface mount version. Both provide 54 module spaces across 3 rows, but the installation style is different.

Q. Is this switchboard compatible with Clipsal MAX9 circuit protection?
A. Yes. The MX9SB318F is part of the Clipsal MAX9 range and is designed for use with compatible MAX9 circuit protection devices and MAXBAR.

Q. Is the MX9SB318F suitable for outdoor use?
A. This model is intended for indoor or suitably protected installations. For exposed outdoor locations, a weatherproof switchboard enclosure should be selected.
